Keithley 3730 - Connection Information: Model 3740; Figure 9-37: D-Sub Connection Information for the Model 3740

Section
9: Series 3700 Module Schematics and Connections Series 3700 System Switch/Multimeter
User's Manual
9
-44 Document Number: 3700S-900-
01 Rev. A / August 2007
Connection information: Model 3740
Refer to the following figure for Model 3740 D-sub connection information.

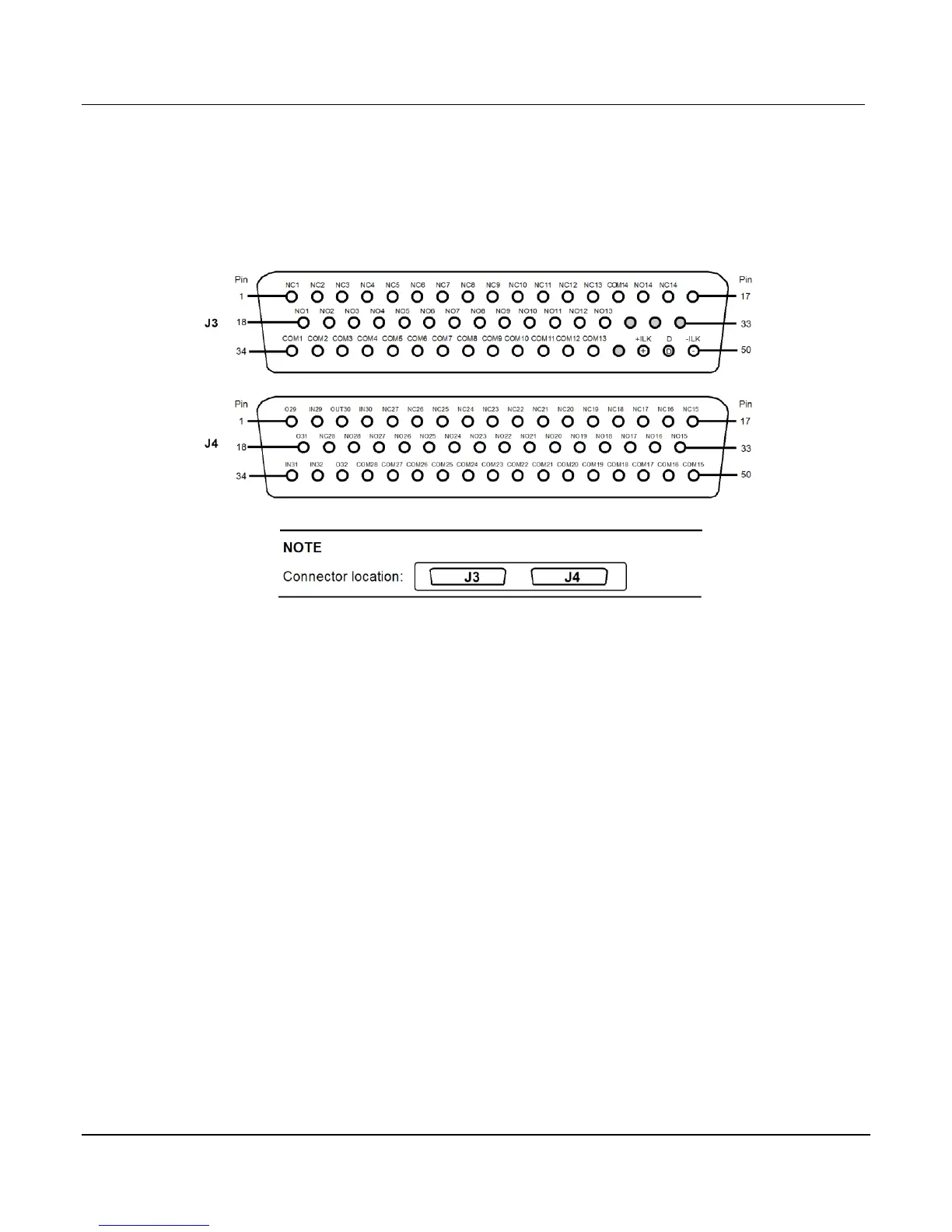

Figure 9-37: D-sub connection information for the Model 3740
