Keithley 3730

Series 3700
System Switch/Multimeter User's Manual Section 9:
Series 3700 Module Schematics and Connections
Document Number: 3700S
-900-01 Rev. A / August 2007 9-
29
Connection information: Model 3723
Refer to the following figure for Model 3723 D-sub connection information.

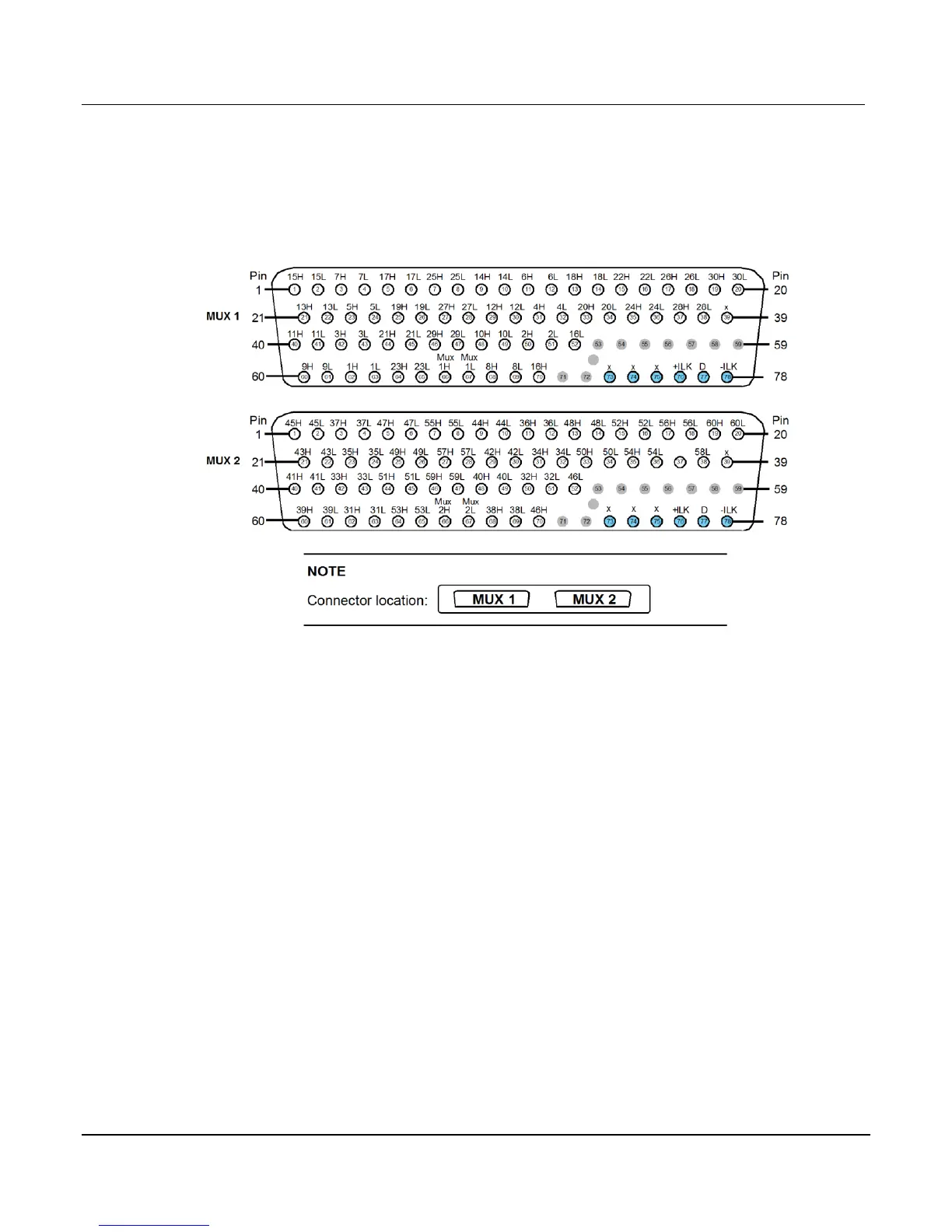

Figure 9-21: D-sub connection information for the Model 3723
