Front Panel Operation
2-61
6517A
HI
Diode
DUT
6517A
V-Source
A
+
-
6517A
Ammeter
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
7078-TRX Cable
INPUT
250V PEAK
COMMON
TRIGGER
LINK
IN OUT
!
LINE RATING
90-134VAC
180-250VAC
50, 60, 400HZ
55VA MAX
LINE FU
SLOWBL
1/2A, 250
IEEE-488
(CHANGE IEEE ADDRESS
WITH FRONT PANEL MENU)
PREAMP OUT
250V PEAK
V SOURCE
LO HI
Note: Ammeter LO internally
connected to V-Source
LO (See Paragraph 2.9.1).
A) Connections
HI
LO
HI
LO
R
Diode
B) Equivalent Circuit
R

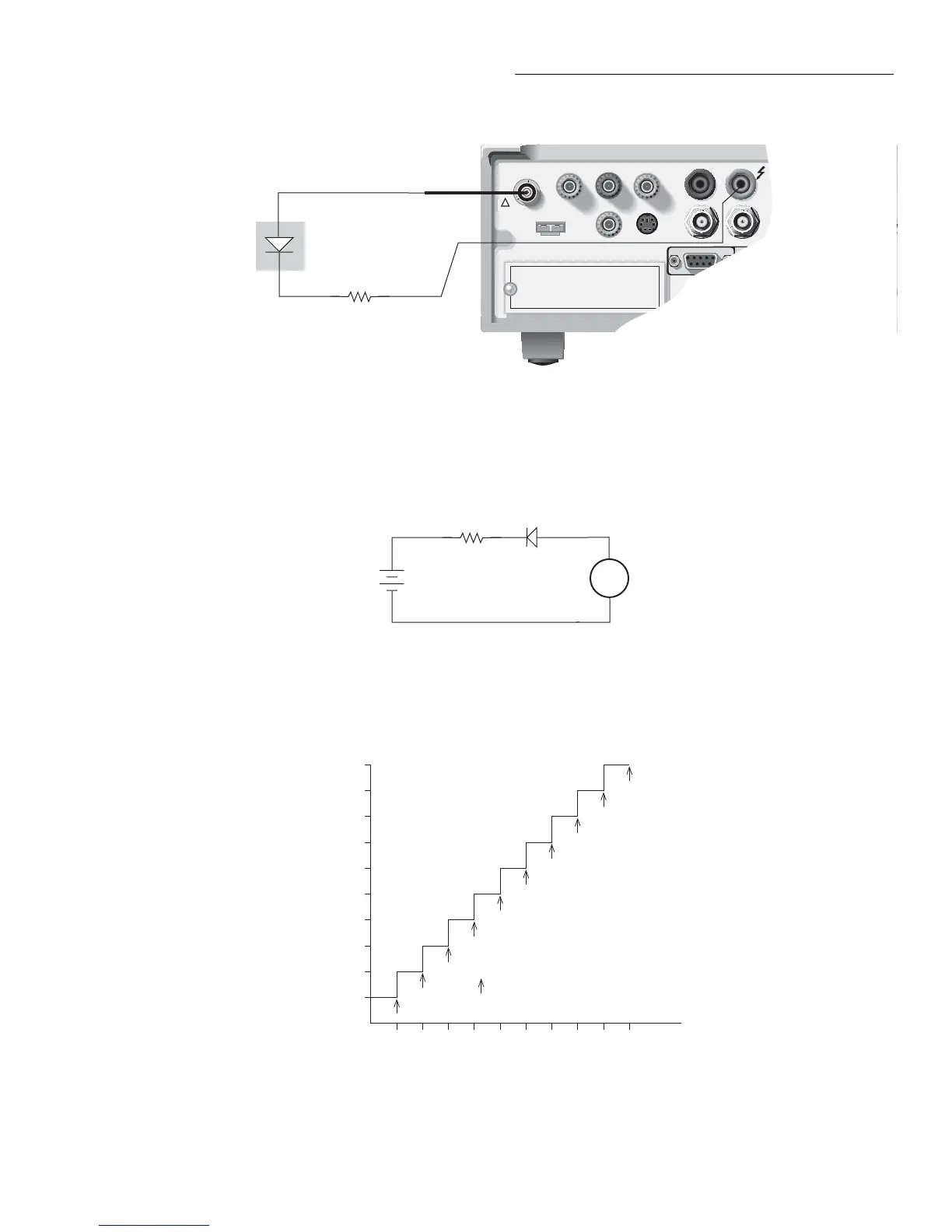

Figure 2-47
Connections; diode leakage current test
1
Test Parameters:
Start V = +1V
Stop V = +10V
Step V = +1V
Delay = 1 sec
= Measurement
2345678910
1
2
3
4
5
6
7
8
9
10
Volts
Delay in seconds
Figure 2-48
Default measurement points; diode leakage current test
