Front-panel overview
The front panel of the DMM6500 is shown below. Descriptions of the controls on the front panel follow
the figure.

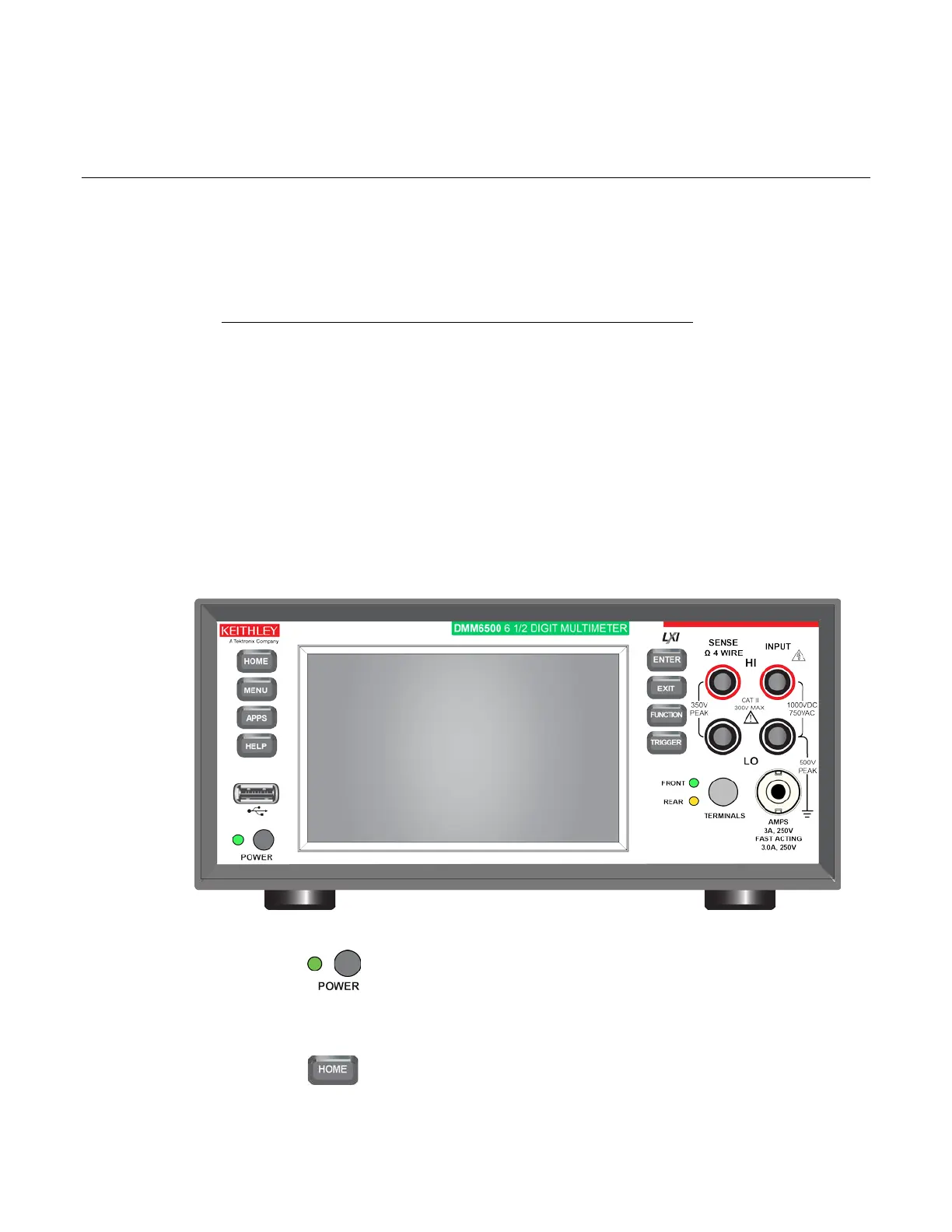

Figure 1: DMM6500 front panel
POWER switch
Turns the instrument on or off. To turn the instrument on, press
and hold the power switch. To turn it off, press and hold the power
switch again. The LED is green when the instrument is on and the
LED is amber when turned off.
HOME key
Returns the display to the Home screen.
Section 2
Front-panel overview

Keithley DMM6500 Specifications

General

Resolution	6.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
AC Current Range	10 µA to 10 A
Temperature Range	-200 °C to 1820 °C
Display	5-inch capacitive touch screen
Resistance Range	100 MΩ
Frequency Range	3 Hz
Sampling Rate	1 MS/s
Connectivity	USB, LAN, GPIB (optional), TSP-Link
Memory	7 million readings
