The SCAN swipe screen has the following control options:
Button Description
Abort Scan
Stop the scan.
Build Scan
Opens the SCAN screen, where you can set up a new scan.
Edit
Opens the SCAN screen, where you can change the setup of a scan.
Pause Scan
Pauses the scan until Resume Scan is selected.
Resume Scan
Resumes a paused scan.
Save to USB
Saves the data in the scan reading buffer to a CSV file on the USB flash drive.
Start Scan
Runs a scan.
Step Scan
Incrementally steps through a scan, channel by channel.
Menu overview
To access the main menu, press the MENU key on the DMM6500 front panel. The figure below
shows the organization of the main menu.

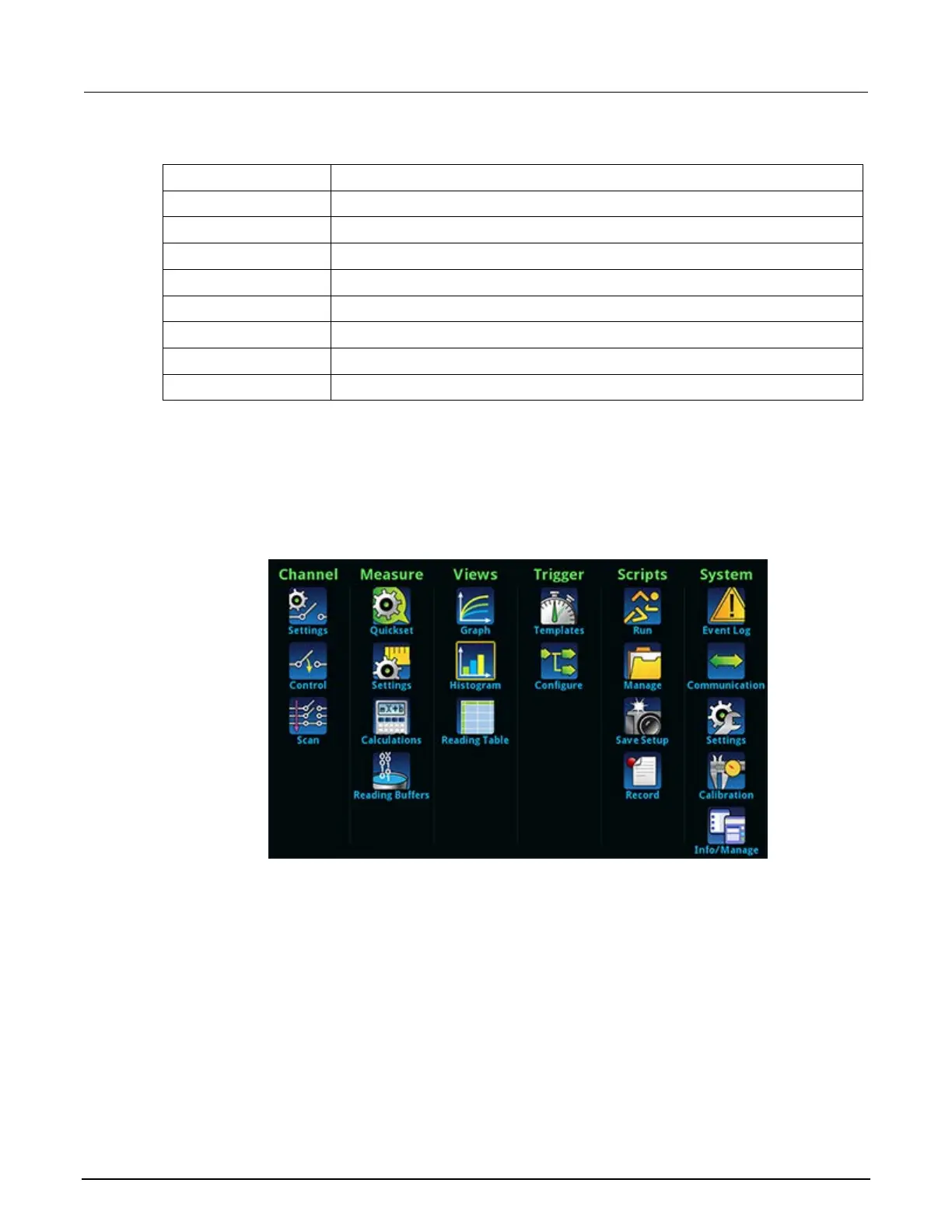

Figure 14: DMM6500 main menu
The main menu includes submenus that are labeled in green across the top of the display. Selecting
an option in a submenu opens an interactive screen.

Keithley DMM6500 Specifications

General

Resolution	6.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
AC Current Range	10 µA to 10 A
Temperature Range	-200 °C to 1820 °C
Display	5-inch capacitive touch screen
Resistance Range	100 MΩ
Frequency Range	3 Hz
Sampling Rate	1 MS/s
Connectivity	USB, LAN, GPIB (optional), TSP-Link
Memory	7 million readings
