7: Scanning temperature at a set time interval DMM6500 6½ Digit Multimeter
User's Manual
7-2 DMM6500-900-01Rev. A / April 2018
Device connections
The 2001-TCSCAN provides up to nine channels of thermocouple temperature measurements. For
this example, each channel of the card is connected to a Type K thermocouple. The card is then
inserted into the rear of the DMM6500 as shown in the next figure. The instrument must be switched
to use the rear terminals.
To set up and install the 2001-TCSCAN card:
1. Power off the instrument.
2. Make connections to the 2001-TCSCAN card as shown in the following figure.

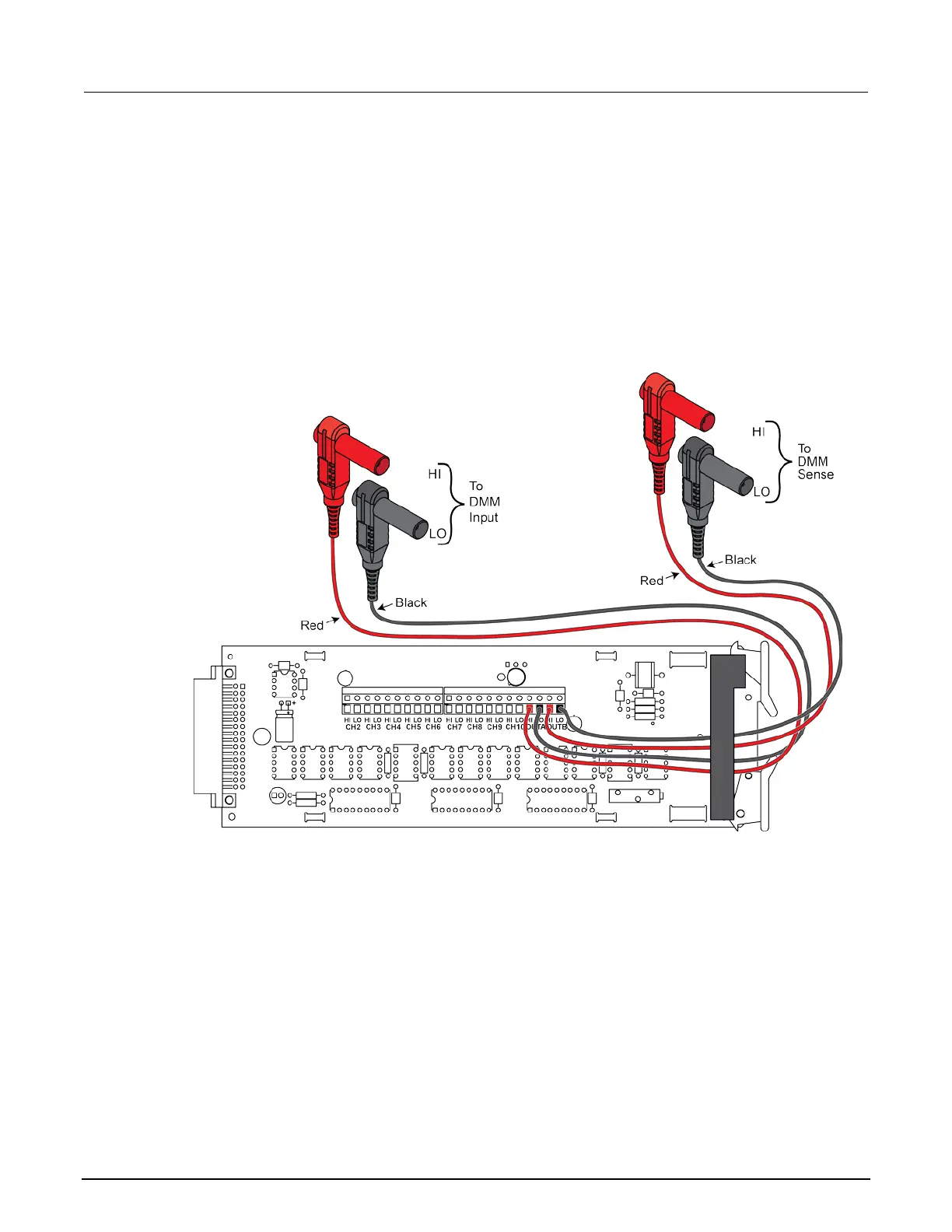

Figure 37: 2001-TCSCAN card

Keithley DMM6500 Specifications

General

Resolution	6.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
AC Current Range	10 µA to 10 A
Temperature Range	-200 °C to 1820 °C
Display	5-inch capacitive touch screen
Resistance Range	100 MΩ
Frequency Range	3 Hz
Sampling Rate	1 MS/s
Connectivity	USB, LAN, GPIB (optional), TSP-Link
Memory	7 million readings
