2: Front-panel overview DMM6500 6½ Digit Multimeter
User's Manual
2-12 DMM6500-900-01Rev. A / April 2018

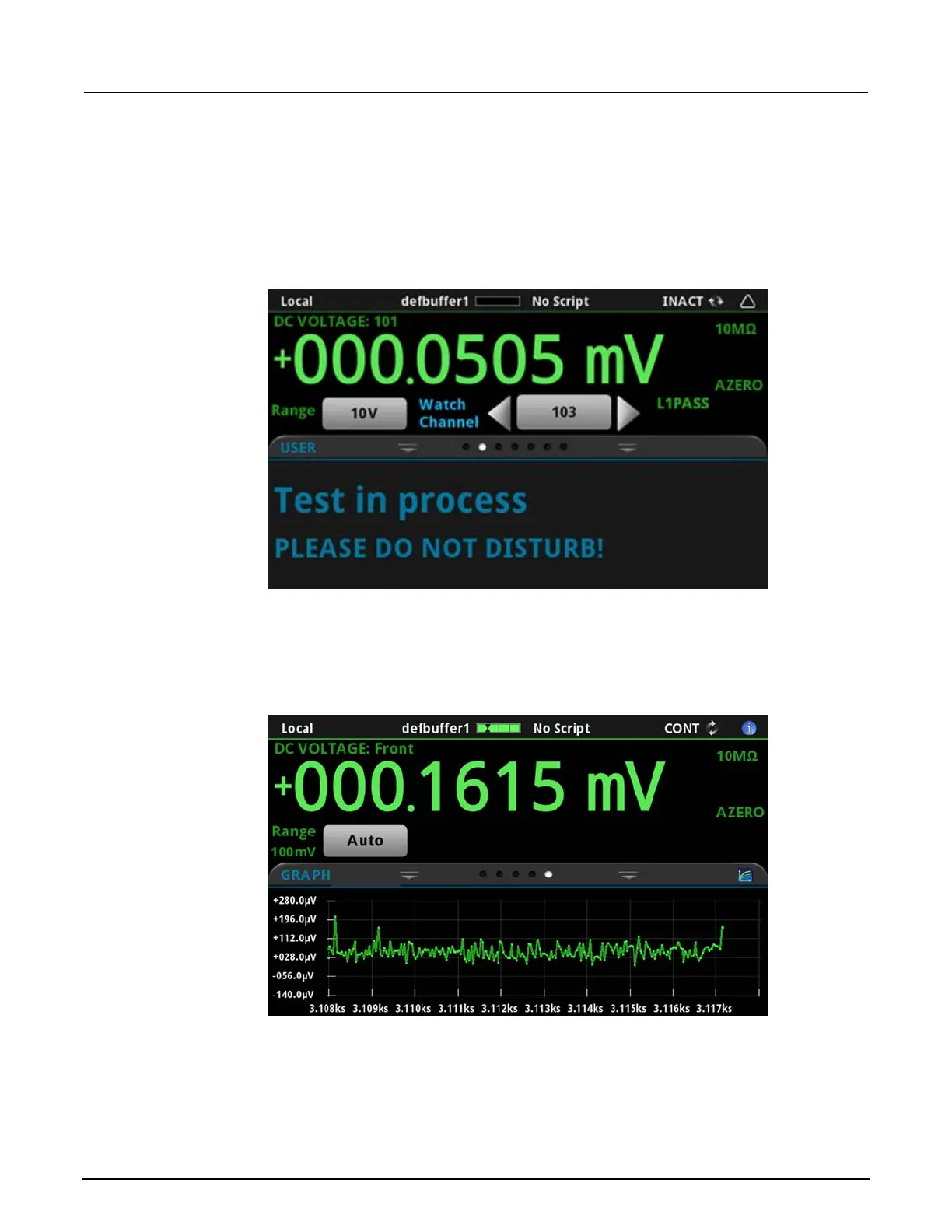

USER swipe screen
If you program custom text, it is displayed on the USER swipe screen. For example, you can program
the DMM6500 to show that a test is in process. This swipe screen is only displayed if custom text has
been displayed. Refer to "Customizing a message for the USER swipe screen" in the Model
DMM6500 Reference Manual.
Figure 10: User swipe screen
GRAPH swipe screen
The GRAPH swipe screen shows a graphical representation of the readings in the presently selected
reading buffer.
Figure 11: GRAPH swipe screen

Keithley DMM6500 Specifications

General

Resolution	6.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
AC Current Range	10 µA to 10 A
Temperature Range	-200 °C to 1820 °C
Display	5-inch capacitive touch screen
Resistance Range	100 MΩ
Frequency Range	3 Hz
Sampling Rate	1 MS/s
Connectivity	USB, LAN, GPIB (optional), TSP-Link
Memory	7 million readings
