Keithley DMM6500 User Manual

Section
4: Making basic front-panel measurements DMM6500 6½ Digit Multimeter
User's Manual
4-2 DMM6500-900-01Rev. A / April 2018
Device connections
Connect the DMM6500 to the resistor in a 2-wire (local sense) configuration. In this configuration, the
device is connected between the INPUT HI and INPUT LO terminals.
To make the connections:
1. Power off the DMM6500.
2. Connect the test leads to the front-panel INPUT HI and INPUT LO terminals, as shown in the
following figure.
3. Connect the test leads to the resistor.

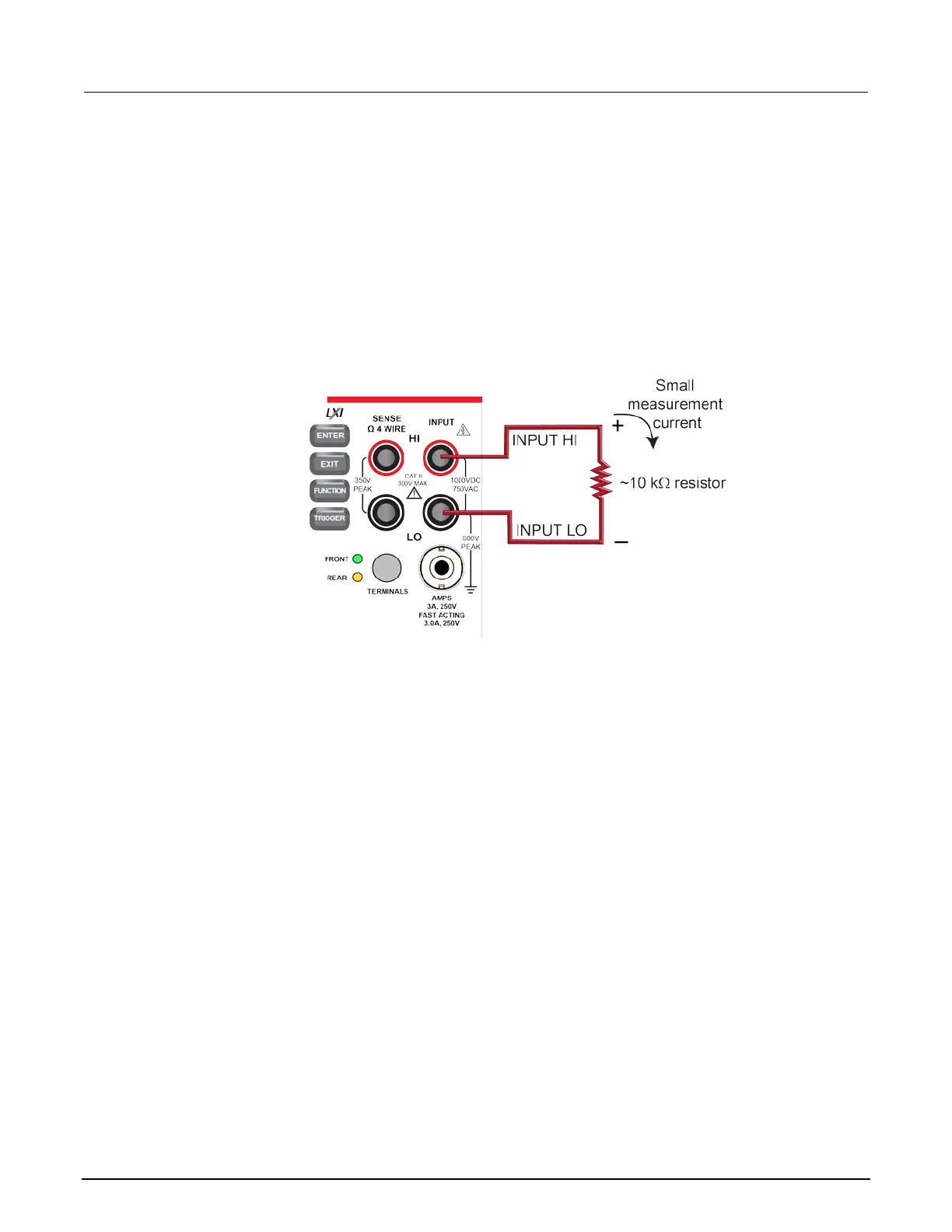

Figure 28: DMM6500 front-panel 2-wire resistance measurement

Keithley DMM6500 Specifications

General

Resolution	6.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
AC Current Range	10 µA to 10 A
Temperature Range	-200 °C to 1820 °C
Display	5-inch capacitive touch screen
Resistance Range	100 MΩ
Frequency Range	3 Hz
Sampling Rate	1 MS/s
Connectivity	USB, LAN, GPIB (optional), TSP-Link
Memory	7 million readings
