Keithley DMM6500 User Manual

Section
9: Measuring power using digitizing and TSP-Link DMM6500 6½ Digit Multimeter
User's Manual
9-2 DMM6500-900-01Rev. A / April 2018
Equipment required
This application requires the following equipment:
• Two DMM6500 instruments
• Two KTTI-TSP communication and digital I/O accessory cards
• One computer set up for communication with the instrument
• One ethernet crossover cable
• Several insulated banana cables
• One device or component to be tested
Device connections
This application requires two KTTI-TSP communication and digital I/O accessory cards.
1. Insert one card into the accessory card slot on the rear panel of each instrument. Refer to
Install
the KTTI-TSP accessory (on page 3-14) card for install instructions.
2. Connect the instruments with a crossover cable connected to the communication cards.

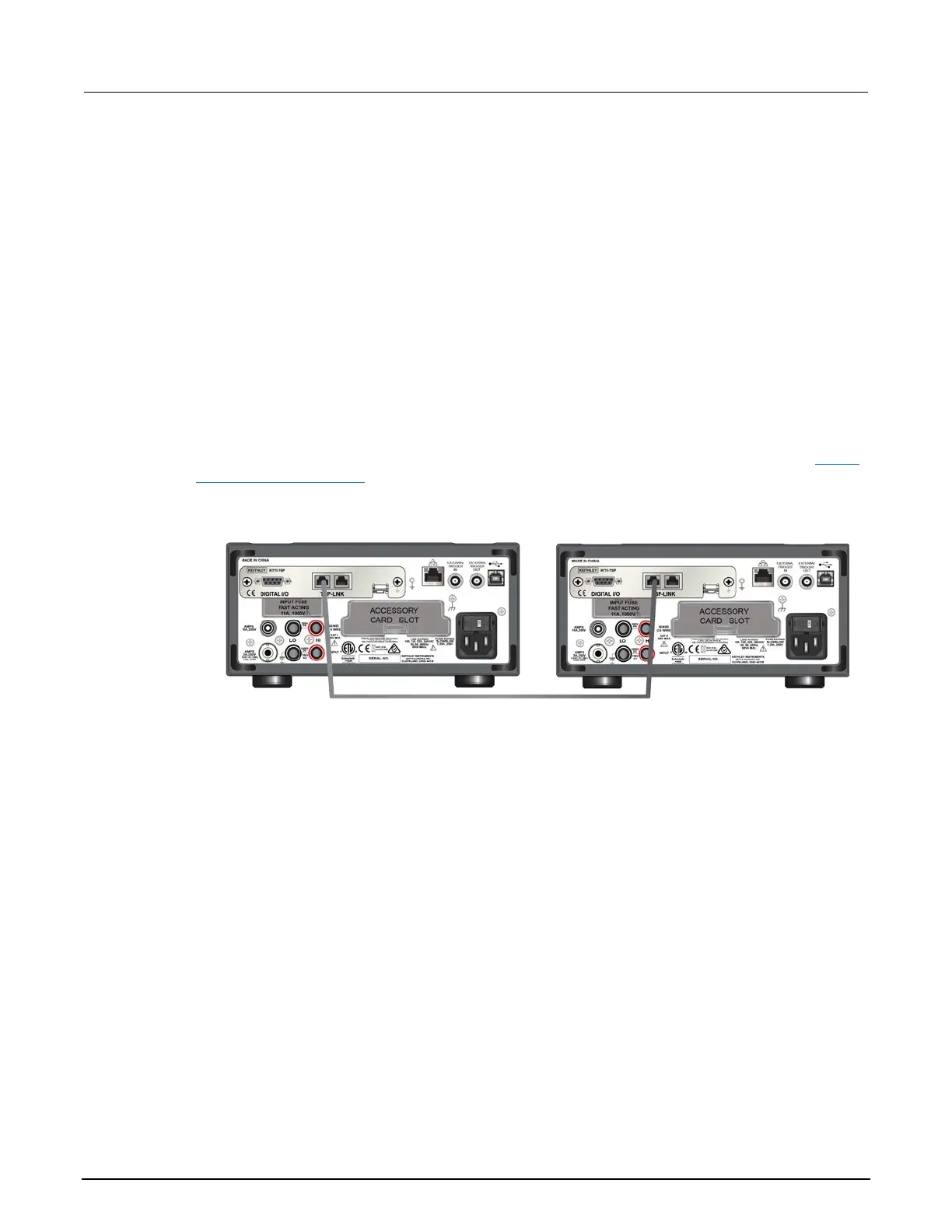

Figure 42: Two DMMs connected with TSP-Link

Keithley DMM6500 Specifications

General

Resolution	6.5 digits
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	10 µA to 10 A
AC Current Range	10 µA to 10 A
Temperature Range	-200 °C to 1820 °C
Display	5-inch capacitive touch screen
Resistance Range	100 MΩ
Frequency Range	3 Hz
Sampling Rate	1 MS/s
Connectivity	USB, LAN, GPIB (optional), TSP-Link
Memory	7 million readings
