3-12 DUT Test Connections Series 2600 System SourceMeters Reference Manual

2600S-901-01 Rev. A / May 2006 Return to Section 3 topics

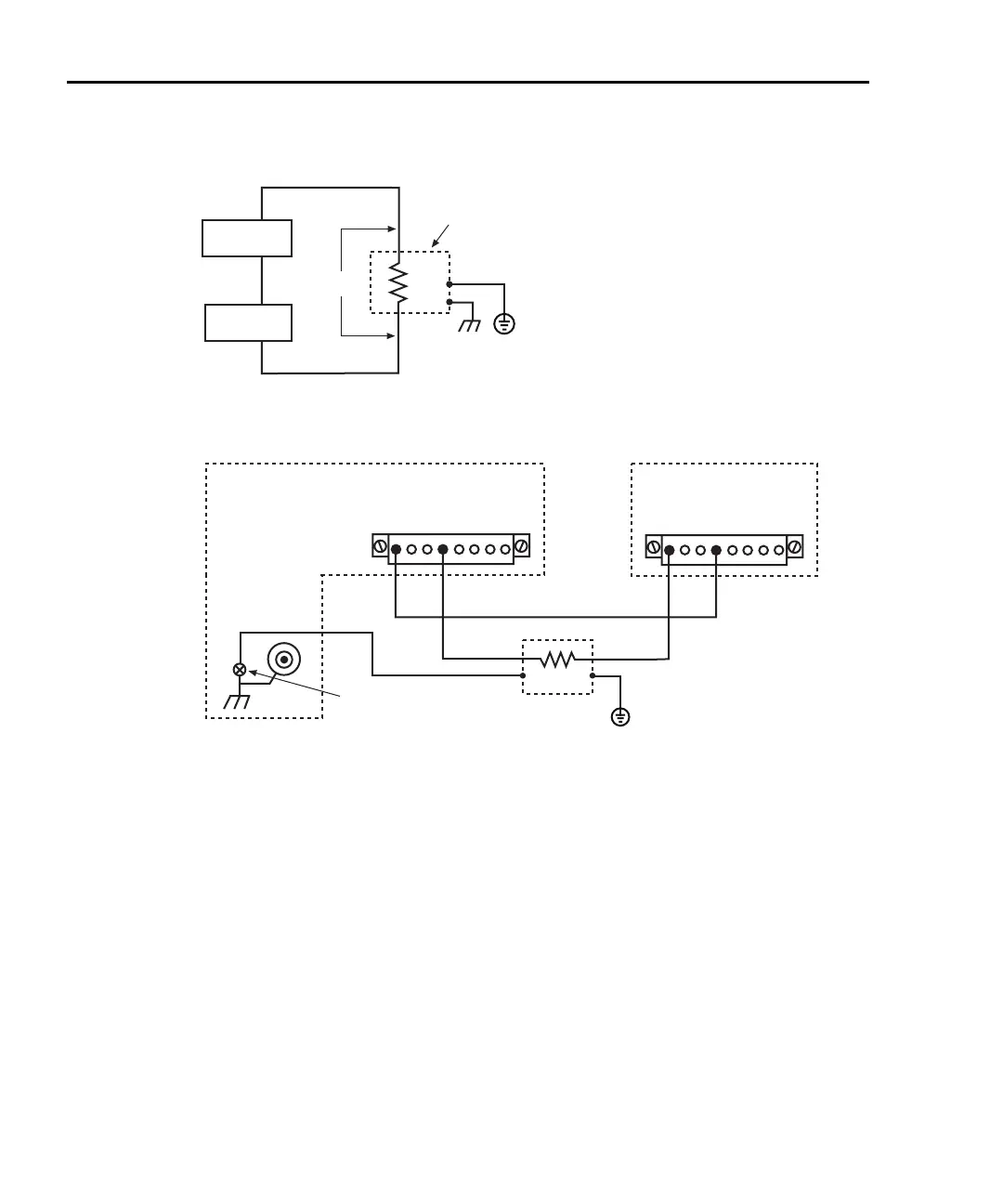

Figure 3-11

DUT

Metal Safety

Shield

SMU A

2601/2602-1

SMU A

2601/2602-2

Safety

Earth

Ground

40V

80V

Safety shield for hazardous voltage using two 2601/2602 channels (>42V)

Figure 3-12

CHANNEL A

LO GLO HI G G G HI

Model 2601/2602-1

DUT

HILO

CHANNEL A

LO GLO HI G G G HI

Model 2601/2602-2

LO HI

Safety

Earth

Ground

Chassis

Screw

Connections for test circuit shown in Figure 3-11

Model 2611/2612 safety shield

The maximum output voltage for a Model 2611/2612 channel is 200V, which is

considered hazardous and requires a safety shield (

Figure 3-13). The connections

for the test configuration in Figure 3-13 are shown in Figure 3-14. Use #18AWG

wire or larger for connections to safety earth ground and chassis.
