4. Be sure to complete steps a through v for all six voltage steps in Table 16-2
or Table 16-3 before continuing with current calibration.
5. Select auto polarity mode:
smua.cal.polarity = smua.CAL_AUTO

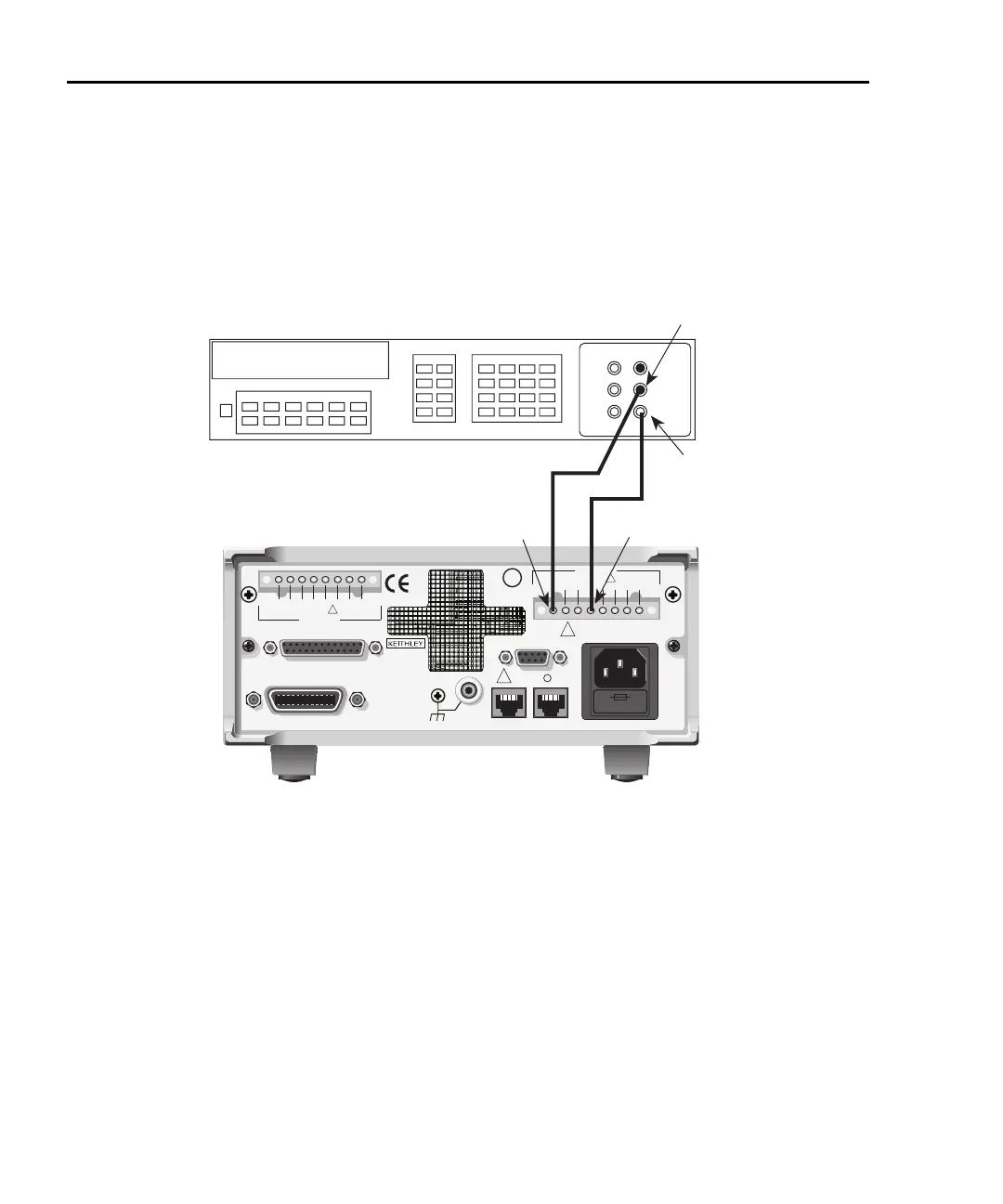

Figure 16-2
Connections for current calibration
WARNING: NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING: NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
MADE IN
U.S.A.
IEEE-488
(CHANGE IEEE ADDRESS
WITH FRONT PANEL MENU)
LINE RATING
100-240VAC
50, 60Hz
240VA MAX.
DIGITAL I/O
RS-232
TSP-Link
LINE FUSE
SLOWBLOW
3.15A, 250V
CAT I
SS
LO LO HIHI GGGG
CHANNEL A
!
!
!
U
L
C
US
LISTED
SourceMeter
4ZA4
CAT I
S
S
LO
LO
HI
HI
G
G
G
G
CHANNEL B
!
R
Digital Multimeter
Amps
Input LO
Model 2602/2612 Channel A
Connections Shown
LO
HI
(100nA to 1A ranges)
Step 3. Current Calibration
1. Connect the Series 2600 to the digital multimeter (see Figure 16-2), and
select the multimeter DC current function.
2. Send this command to initialize current calibration:
smua.source.func = smua.OUTPUT_DCAMPS
