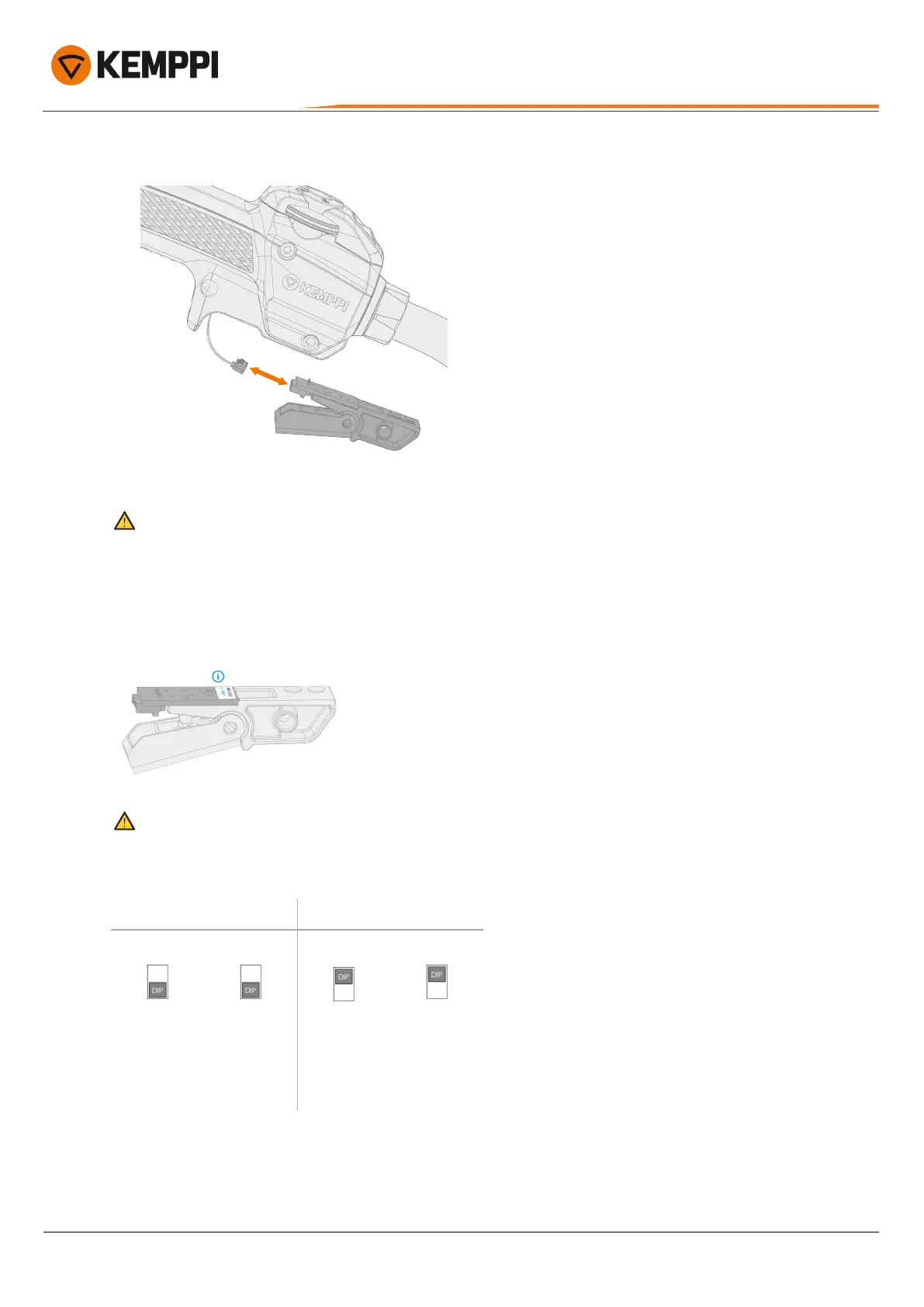

3. Disconnect the wiring connector from the trigger switch.
4. To reinstate the trigger switch or to install a replacement trigger switch, repeat the previous steps in reverse.
Use caution when connecting the wiring connector. Wrong alignment and/or too much force may damage the con-
nector pins.
3.5.1 Trigger switch setting (GX series 5) – W015263 until 9/2020
This instruction applies to series 5 trigger switch circuit boards W015263 with the version identification C (9/2020) or
older (e.g. A or B). Refer to the label on the circuit board for version information:
Series 5 Flexlite GX welding guns are designed and set up for Kemppi Fastmig equipment by default (circuit board
W015263 until 9/2020). The secondary trigger switch setting provides only limited support for other than Kemppi
Fastmig welding equipment. Use this option with caution.
Settings diagram:
Primary (default) Secondary
ON ON
ON
ON
1 2 1 2
- Kemppi Fastmig - Kempact Classic
- Fitweld
- X3 MIG Welder
- Kempact RA
- Other than Kemppi
Tools needed:
© Kemppi
25
1921390 / 2310
