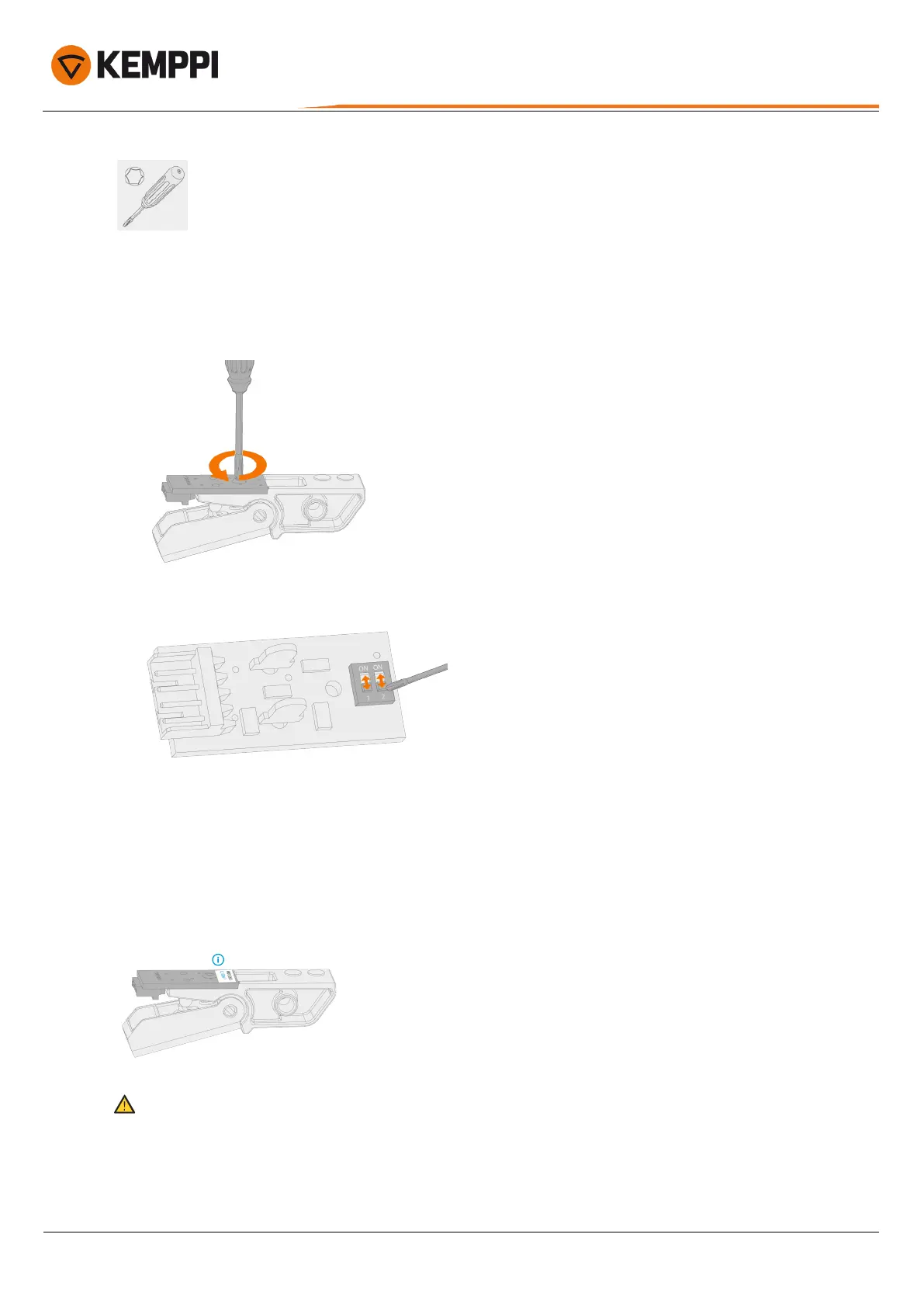

For changing the setting:
1. Detach the trigger switch. Refer to "Trigger switch replacement" on page24 for more detailed instructions.
2. Release the small screw holding the trigger switch circuit board and remove the circuit board.
3. Set the two dip switches on the circuit board to the correct position (refer to the settings diagram above).
4. Reassemble and reinstate the trigger switch. Refer to "Trigger switch replacement" on page24 for more detailed
instructions.
3.5.2 Trigger switch setting (GX series 5) – W015263 since 10/2020
This instruction applies to series 5 trigger switch circuit boards W015263 with the version identification R04 (10/2020) or
newer. Refer to the label on the circuit board for version information:
The series 5 Flexlite GX welding guns are designed and set up for Kemppi Fastmig, Pro and Kempact Pulse equipment
by default (since trigger switch circuit board version R04 (10/2020)). The secondary trigger switch setting provides
general support also for other than the above-mentioned Kemppi welding equipment. Use this option with caution.
