Kemppi Master M 205 User Manual

Master M 205, 323
Operating manual - EN

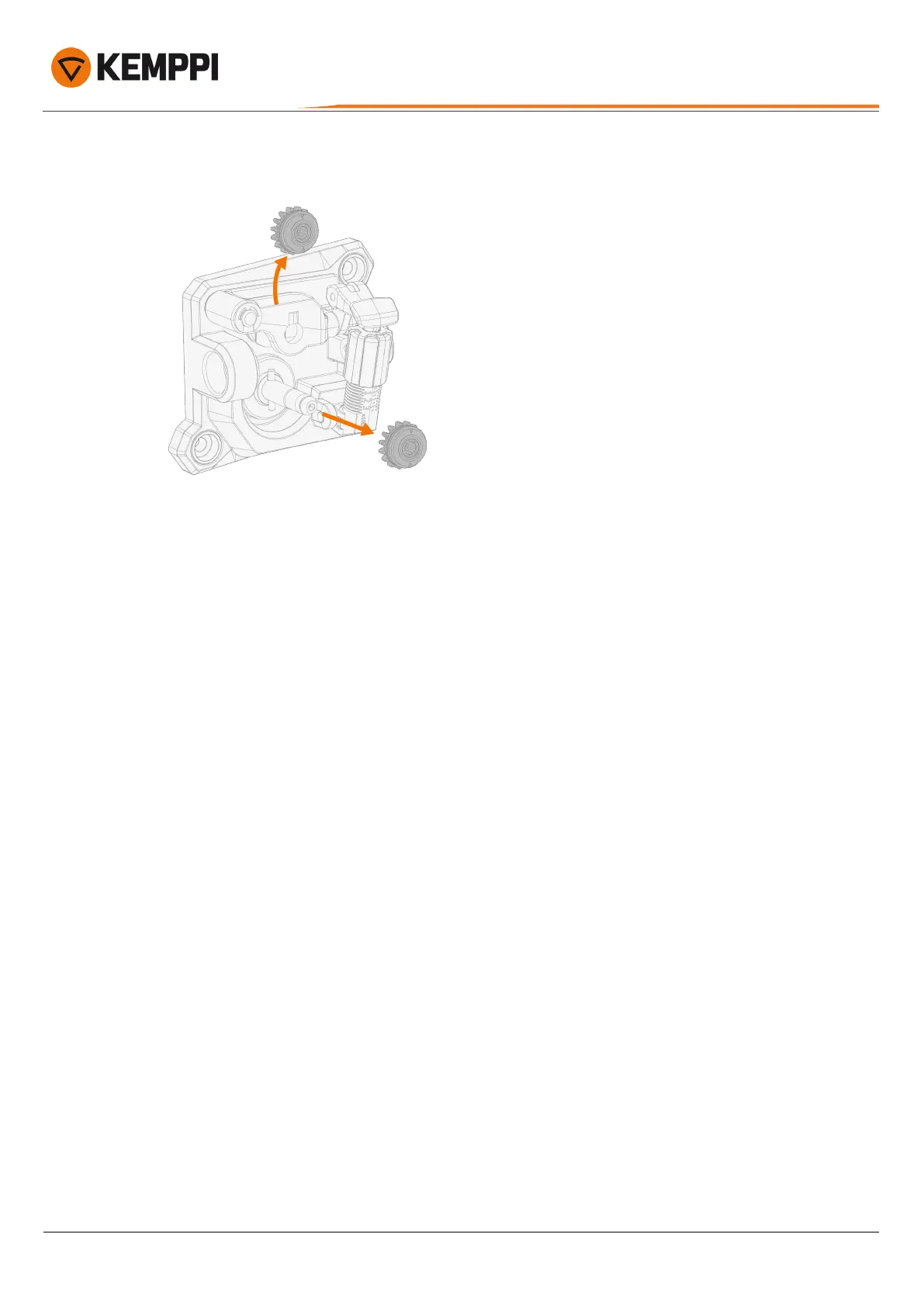

4. Remove the feed rolls.
5. Follow the previous steps in reverse to install the wire feed rolls. Align the cut on the drive roll's bottom with the pin
on the drive shaft.
6. Reattach the mounting cap and mounting pin to lock the drive roll and pressure roll into their places.
7. Close the pressure handle. Refer to "Installing and changing wire (200 mm spool)" on page19 for more information
on the wire installation.
8. Close the wire feed cabinet hatch.
© Kemppi
27
1922130 / 2313
