Master M 205, 323
Operating manual - EN
1.2 Master M 205 and 323 devices

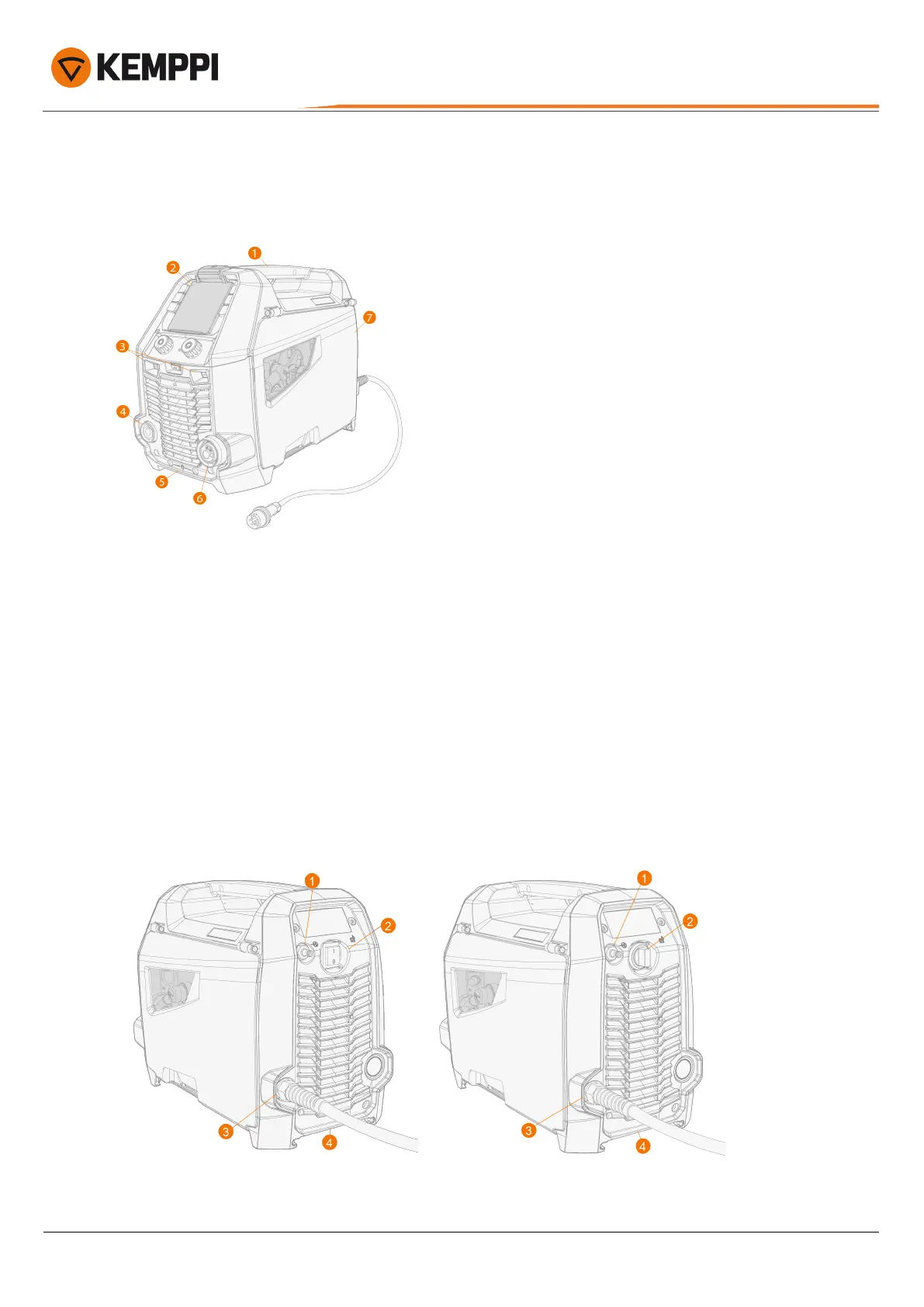

Front
1. Transportation handle (also for mechanical lifting when the device is not installed on a cooling unit or cart)
2. Control panel (and hinged control panel cover)
3. LED work lights with light switch in the middle
>> Light switch: First press turns the lights on (full brightness), second press dims the lights (medium brightness),
third press turns the lights off
>> Includes a built-in battery (the battery is charged when the equipment is connected to mains)
4. Earth return cable connector
5. Front locking interface
>> For locking on top of the cooling unit or on the cart
6. Welding cable euro connector
7. Wire feed cabinet hatch.
Rear
Master M 205 on the left and Master M 323 on the right.
© Kemppi
6
1922130 / 2313
