2.6 Installing and changing wire (200 mm spool)
This section describes how to install and change a 200 mm spool. The spool hub for a 200 mm spool is factory installed
on Master M 205 and 323 machines. For instructions on installing a 100 mm spool, refer to "Installing and changing wire
(100 mm spool)" on page24.
Install the welding gun to the Master M device before installing the wire spool.
When changing the wire spool, remove the remaining filler wire from the welding gun and wire feed mechanism
before removing the wire spool.
Always ensure that the feed rolls are suitable for the filler wire (diameter and material) in question. For more inform-
ation, refer to "Wire feeder consumables" on page69.
To remove the wire spool:

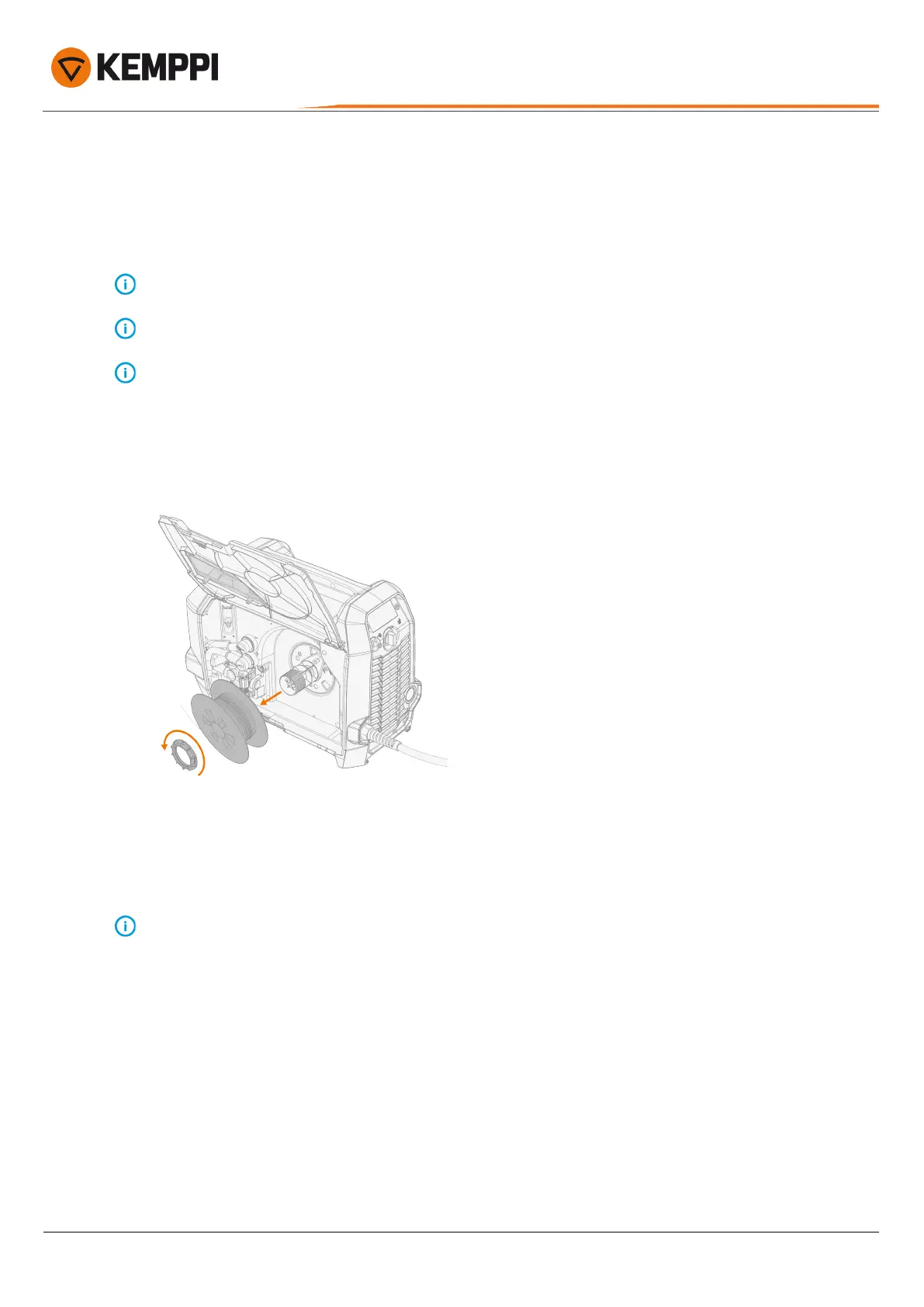

1. Open the wire feed cabinet hatch.
2. Loosen and remove the spool fastener and remove the wire spool.
To install a new wire spool:
1. Insert the wire spool onto the spool hub. Secure the wire spool in place by inserting and tightening the spool
fastener.
Ensure that the wire spool is facing the right direction, the filler wire running from the bottom of the spool to the
feed rolls.
