Master M 353, 355
Operating manual - EN

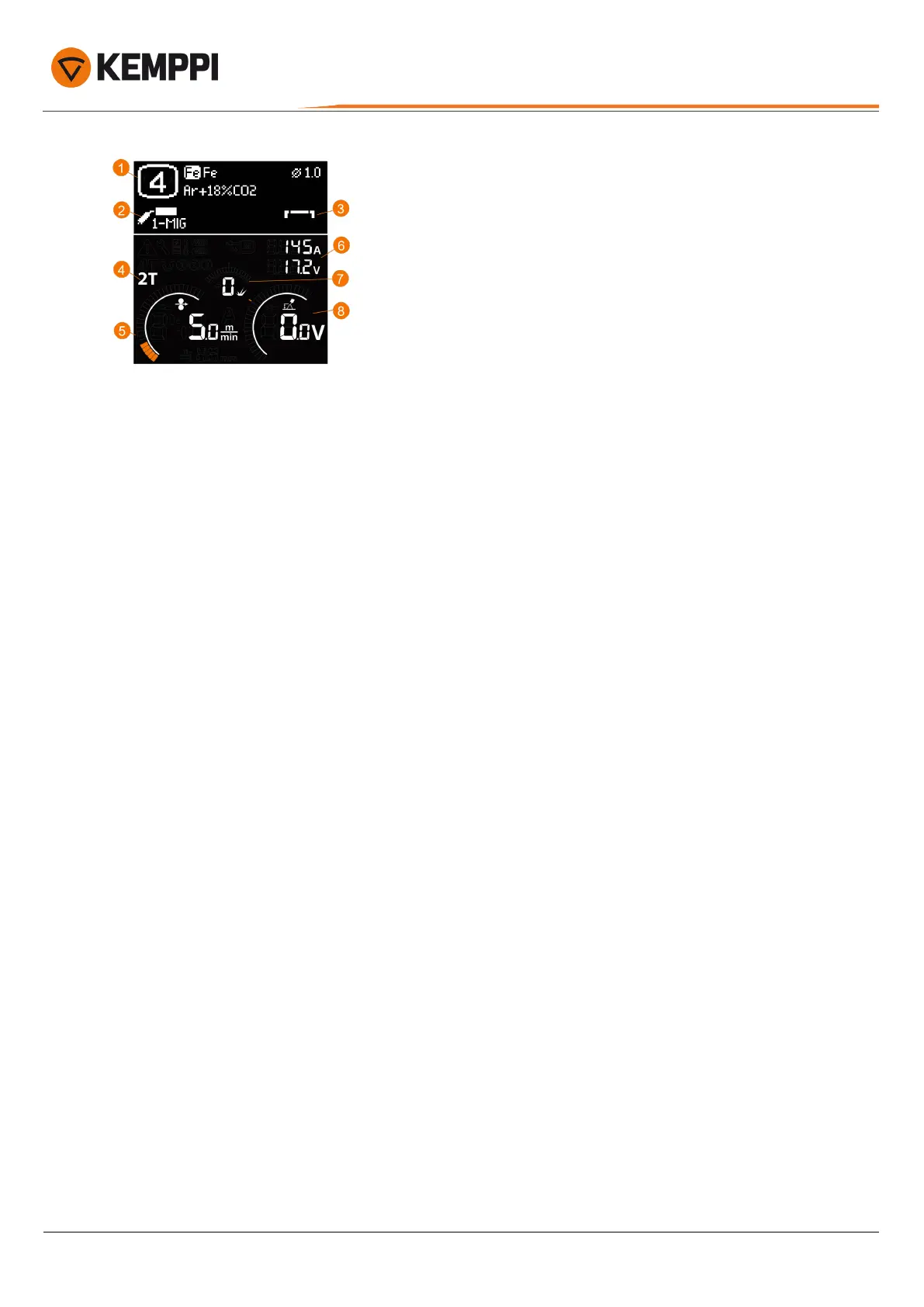

1. Memory channel (and filler wire and shielding gas settings, if set)
2. Active welding process
3. Applied welding functions*
4. Applied trigger logic function
5. Wire feed speed
>> The value range is defined by the active welding program, step 0.1, default = 5.0 m/min
6. Current and voltage
7. Dynamics
>> Controls the short circuit behavior of the arc. The lower the value the softer the arc, the higher the value the
rougher the arc. Value range: -9 ... +9, default = 0
>> With MAX process a corresponding MAX parameter adjustment is displayed
8. Welding voltage
>> With 1-MIG process voltage fine tuning is displayed
>> With MAX process a corresponding MAX parameter adjustment is displayed.
Control knob functions
Left control knob:
• Manual MIG: Wire feed speed adjustment
• 1-MIG: Wire feed speed adjustment
• Pulse MIG: Wire feed speed adjustment
• DPulse MIG: Wire feed speed adjustment and switching between pulse levels with the control knob button
• TIG/MMA: Welding current adjustment.
Right control knob:
• Manual MIG: Welding voltage and dynamics adjustment
• 1-MIG:Dynamics adjustment and fine tuning of welding voltage and switching between the adjustments with the
control knob button
• Pulse MIG: Fine tuning of welding voltage
• DPulse MIG: Fine tuning of welding voltage
• MMA:Dynamics adjustment.
© Kemppi
37
1921960 / 2307
