Master M 353, 355
Operating manual - EN
1.2 Master M device

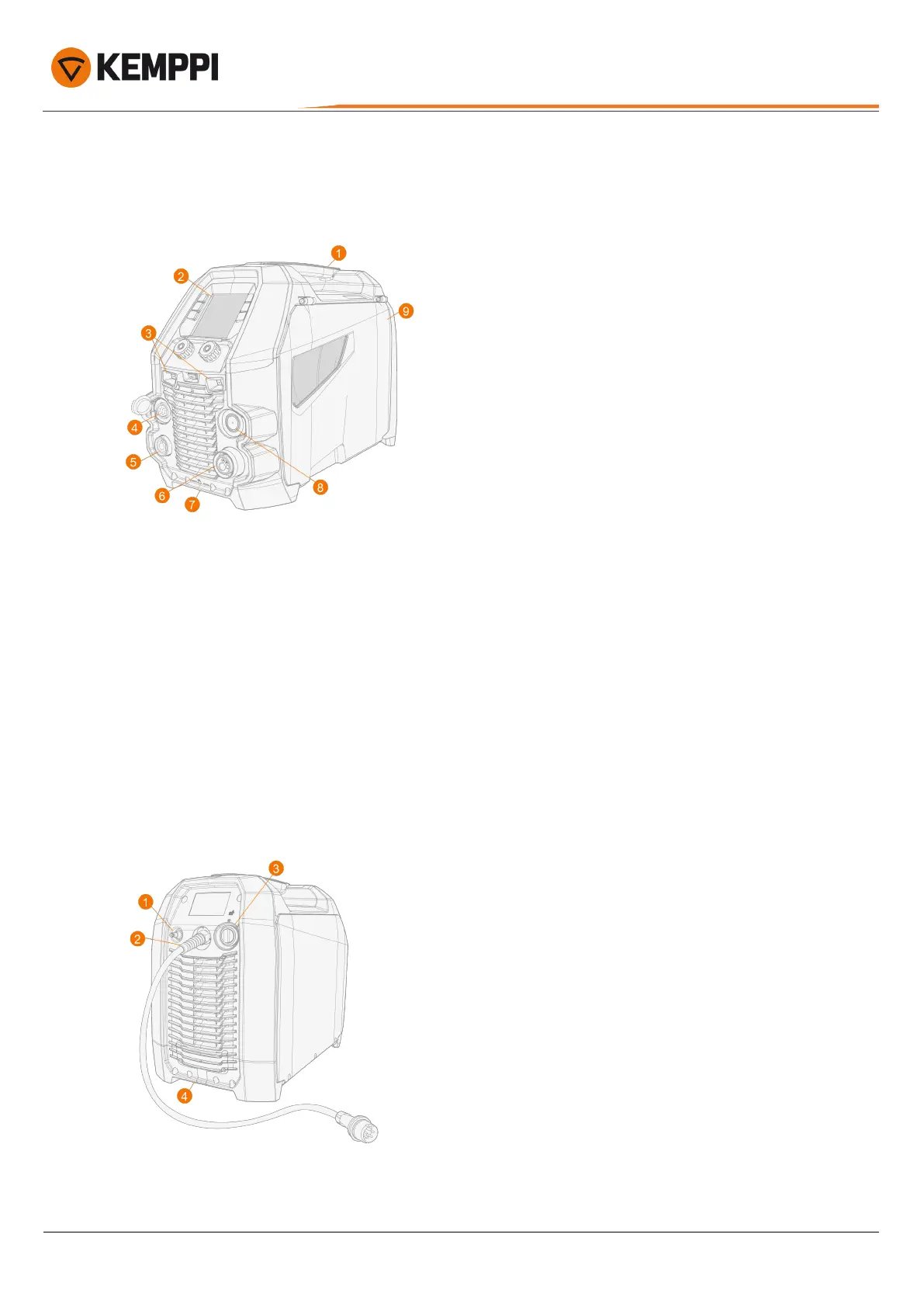

Front
1. Transportation handle (also for mechanical lifting when the device is not installed on a cooling unit or cart)
2. Control panel
3. LED work lights with light switch in the middle
>> Light switch: First press turns the lights on (full brightness), second press dims the lights (medium brightness),
third press turns the lights off
>> Includes a built-in battery (the battery is charged when the equipment is connected to mains)
4. Control cable connector
5. Earth return cable connector
6. Welding cable euro connector
7. Front locking interface
>> For locking on top of the cooling unit or on the cart
8. Connector for subfeeder synchronization kit (optional)
9. Wire feed cabinet hatch.
Rear
1. Shielding gas hose connector
