MasterTig 235ACDC, 325DC, 335ACDC
Operating manual - EN
3.2 Operating control panels MTP23X and MTP33X
MTP23X and MTP33X control panels include physical push buttons for the most common setup and adjustment fea-
tures as well as a small digital display for showing the adjustment values and more in-depth settings.
MTP23X control panel has only the DCcurrent mode available, whereas MTP33X control panel includes both, AC and
DC current modes.
Controls:
The MTP23X and MTP33X control panels are used with a control knob and with two function buttons in the bottom
section of the front cover as well as with dedicated push buttons on the panel itself. The control knob can be
turned and used also as a push button according to the current selections. Settings and adjustment values are
shown on the digital display embedded in the control panel.

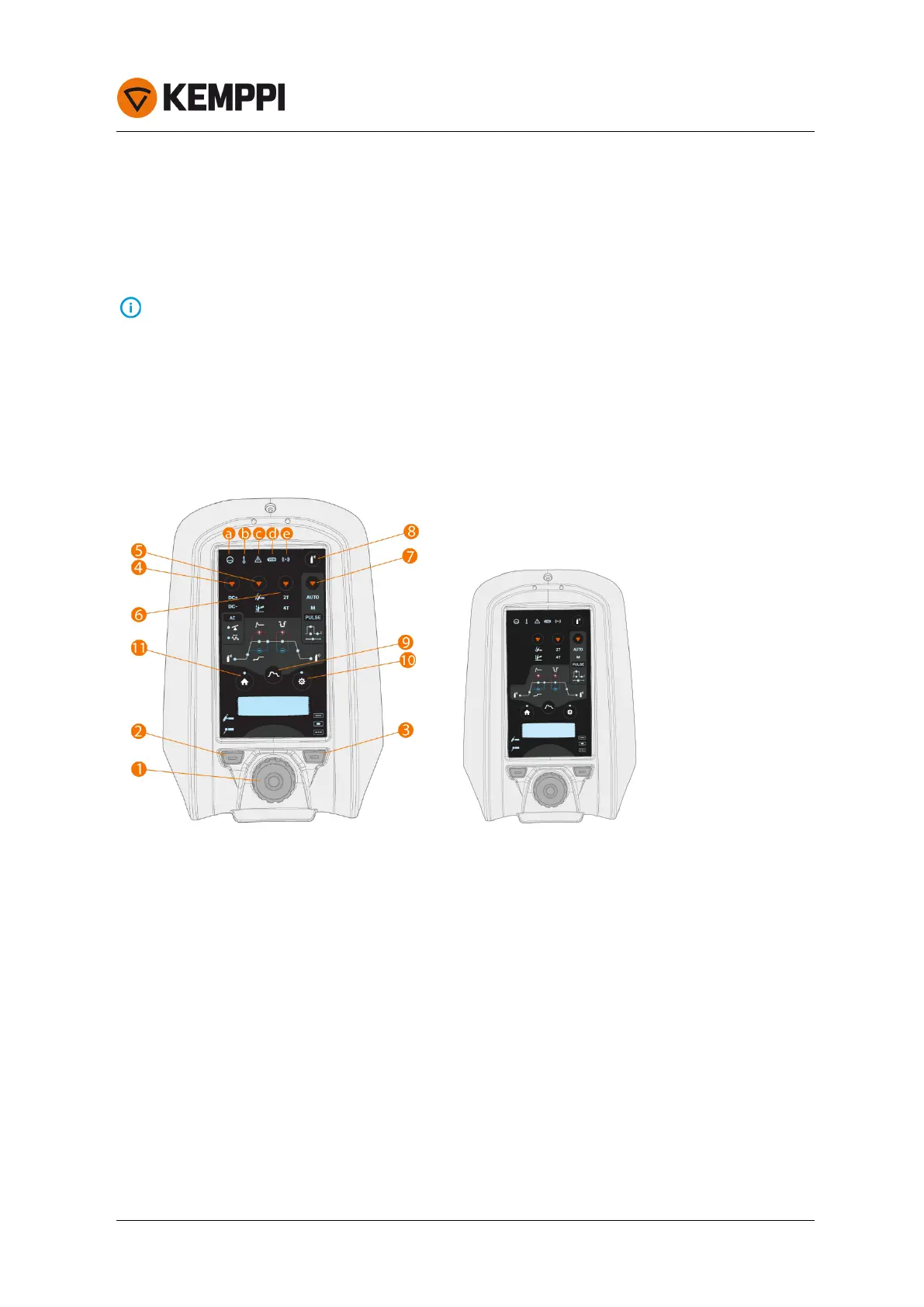

Control panel MTP33X on the left and control panel MTP23X on the right:
1. Control knob
• In home mode this adjusts the welding current (A)
• Used to navigate within the control panel's embedded display and settings
• When the green light is lit in the knob center, the knob also functions as a push button for selection
2. Welding process selection button (left function button)
• Switches between welding processes: TIG / MMA
3. Welding mode selection button (right function button)
• Switches between welding modes: Continuous / Spot / MicroTack
4. MTP33X control panel only: Current mode selection button
• Short press switches between current modes: AC / DC- / Mixed current (AC/DC-)
• Long press switches to DC+ mode
5. Ignition mode selection button
• Switches between different ignition modes: Lift TIG / High frequency (HF) ignition
© Kemppi
27/77 1920900 / 1939
