Control panel views:
• "Home view" below
• "Weld Assist view" on the next page
• "Memory channels view" on page40
• "Start & stop sequence view" on page41
• "Pulse view" on page44
• "Current mode view" on page43
• "Settings view" on page46
• "Info view" on page49
To navigate between different control panel views:
1. Press the menu button (2).
2. Browse to the target view by turning the control knob (1).
3. Select the view by pressing the knob (1).
Tip: You can switch between the home view and the previously used view by long pressing the menu but-
ton (2).
3.3.1 Home view
Home view is the control panel work mode after the initial machine and control panel start-up. When in Home view,
the welding current can be adjusted directly by turning the control knob.

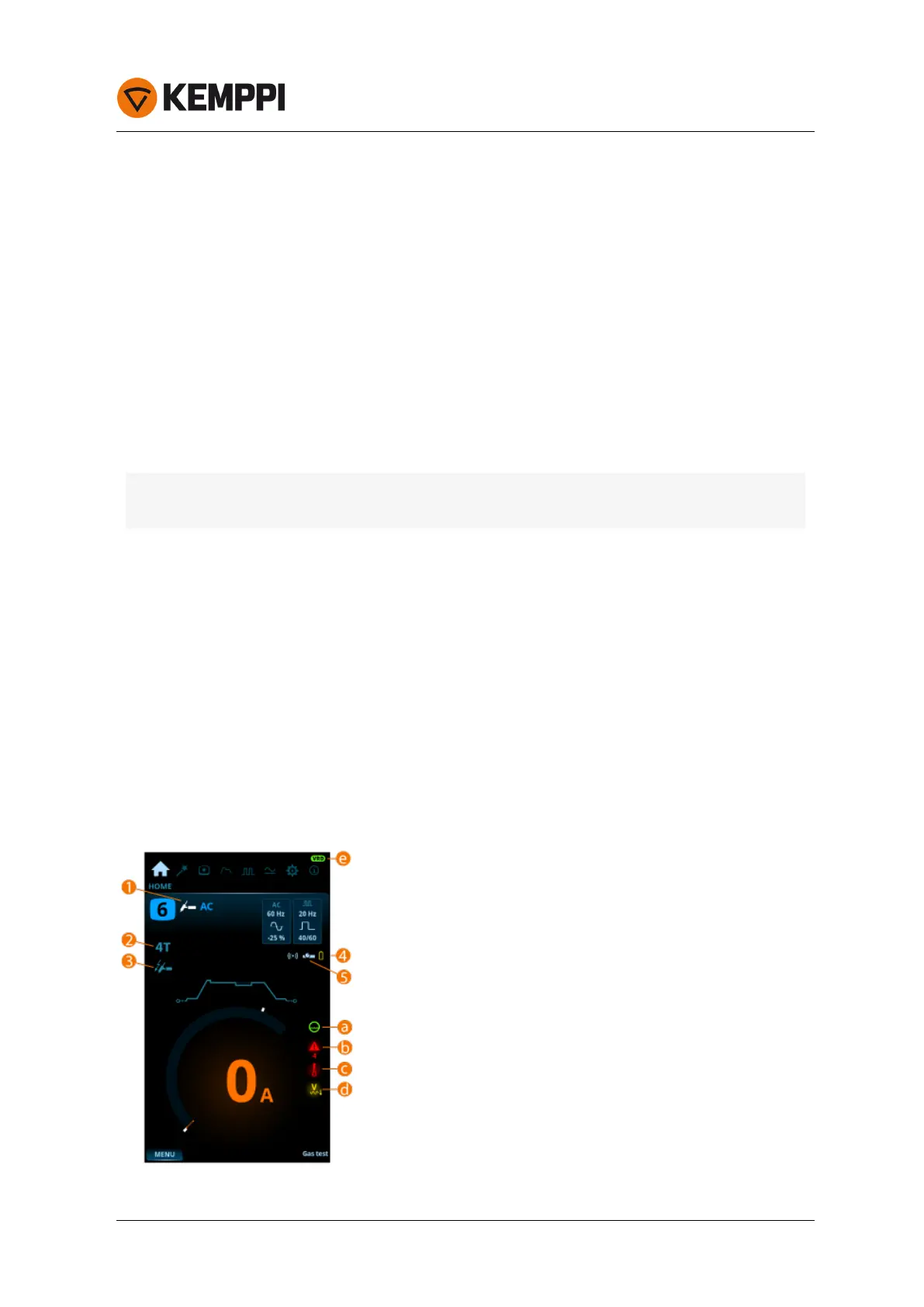

Depending on your welding settings, the following are shown:
• Welding current(A)
• Current mode (AC, DC-, DC+, MIX)
• Pulse mode: Auto / Selected value Hz (manual)
• Start & stop diagram
• Welding mode indicated by the diagram shape:Continuous, Spot or MicroTack
• Memory channel used
• Selected trigger logic, ignition mode, remote mode and welding process
• Warning and notification symbols.
