MasterTig 235ACDC, 325DC, 335ACDC
Operating manual - EN
1. Welding process (TIG/MMA)
2. Trigger logic (2T/4T)
3. Iginition mode (Lift TIG ignition / HF ignition)
4. Wireless remote and its battery status
5. Remote mode (ON/OFF).
Warning and notification symbols:
a. Cooling unit
• Green: Cooling unit is connected and running
• Red: Cooling unit is connected, but there is a problem (e.g. coolant circulation is restricted)
b. General notification
• Yellow: This is a warning that requires attention
• Red: There is an error that prevents welding
• Error code is shown below the symbol
c. Operating temperature
• Red: Welding equipment has overheated
d. Low-voltage network (MasterTig 235 only)
• Yellow:Power source is connected to a low-voltage network (110 V) and the maximum welding current is restric-
ted to 130 A in TIG welding and to 85 A in MMA welding.
The power source checks the network voltage only when powering up. In case the network voltage changes, the power
source must be turned off and on again.
e. VRD (voltage reduction device)
• VRD symbol on:VRD is on
>> This is always on in power source models where the VRD function is locked on.
• VRD symbol red (blinking):There is a fault with VRD that prevents welding
• VRD symbol off:VRD is off.
Tip: You can switch between the home view and the previously used view by long pressing the menu but-
ton.
3.3.2 Weld Assist view
Weld Assist is a wizard-like utility for easy selection of welding parameters. The utility walks the user step-by-step
through the selection of required parameters, presenting the selections in an easily understandable way for a non-
technical user. This is available in the MTP35X control panel.

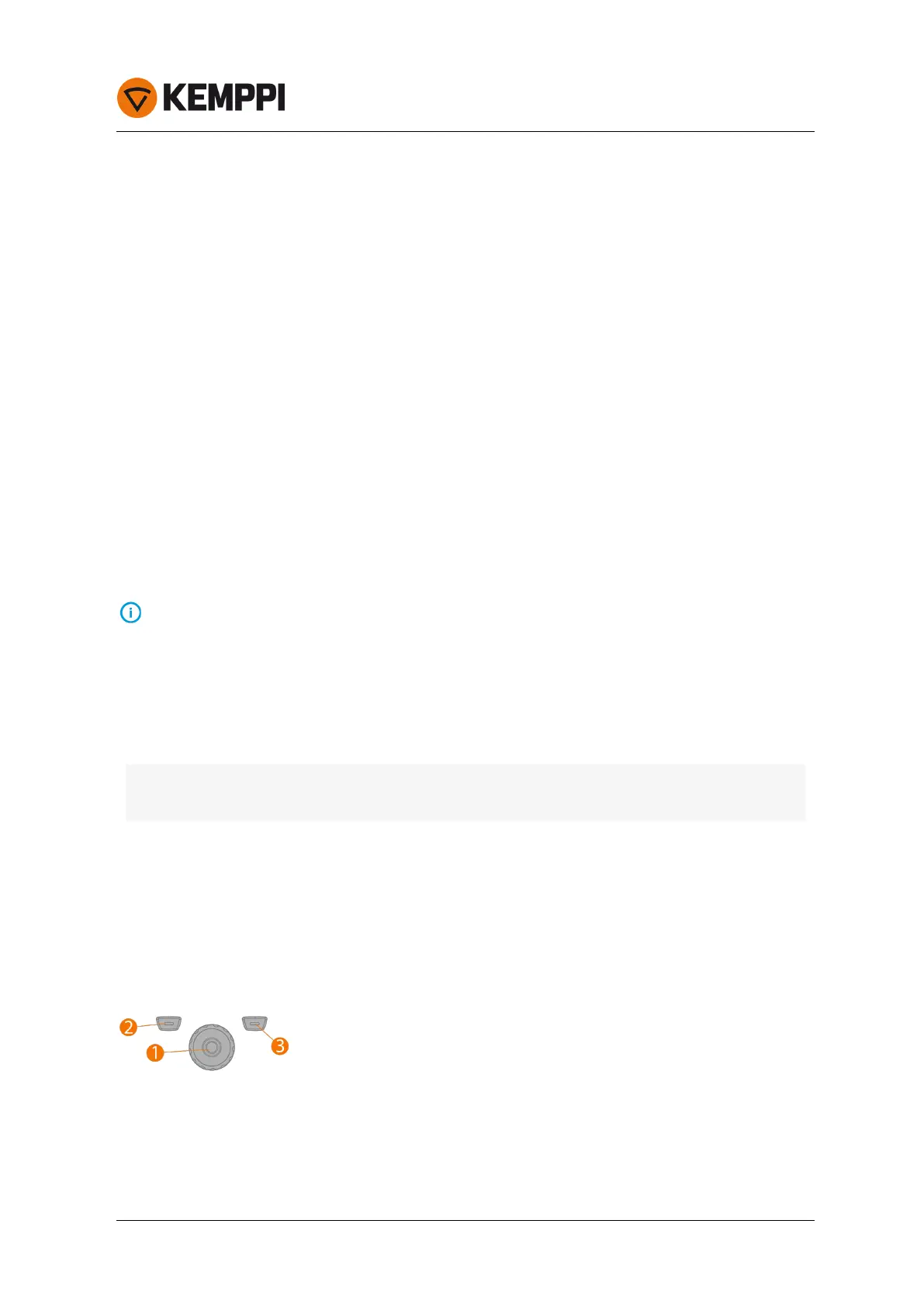

Weld Assist feature is available with TIG welding only. In Weld Assist, the selections are made with the control knob
(1) and with the two function buttons (2, 3):
© Kemppi
37/77 1920900 / 1939
