MasterTig 235ACDC, 325DC, 335ACDC
Operating manual - EN

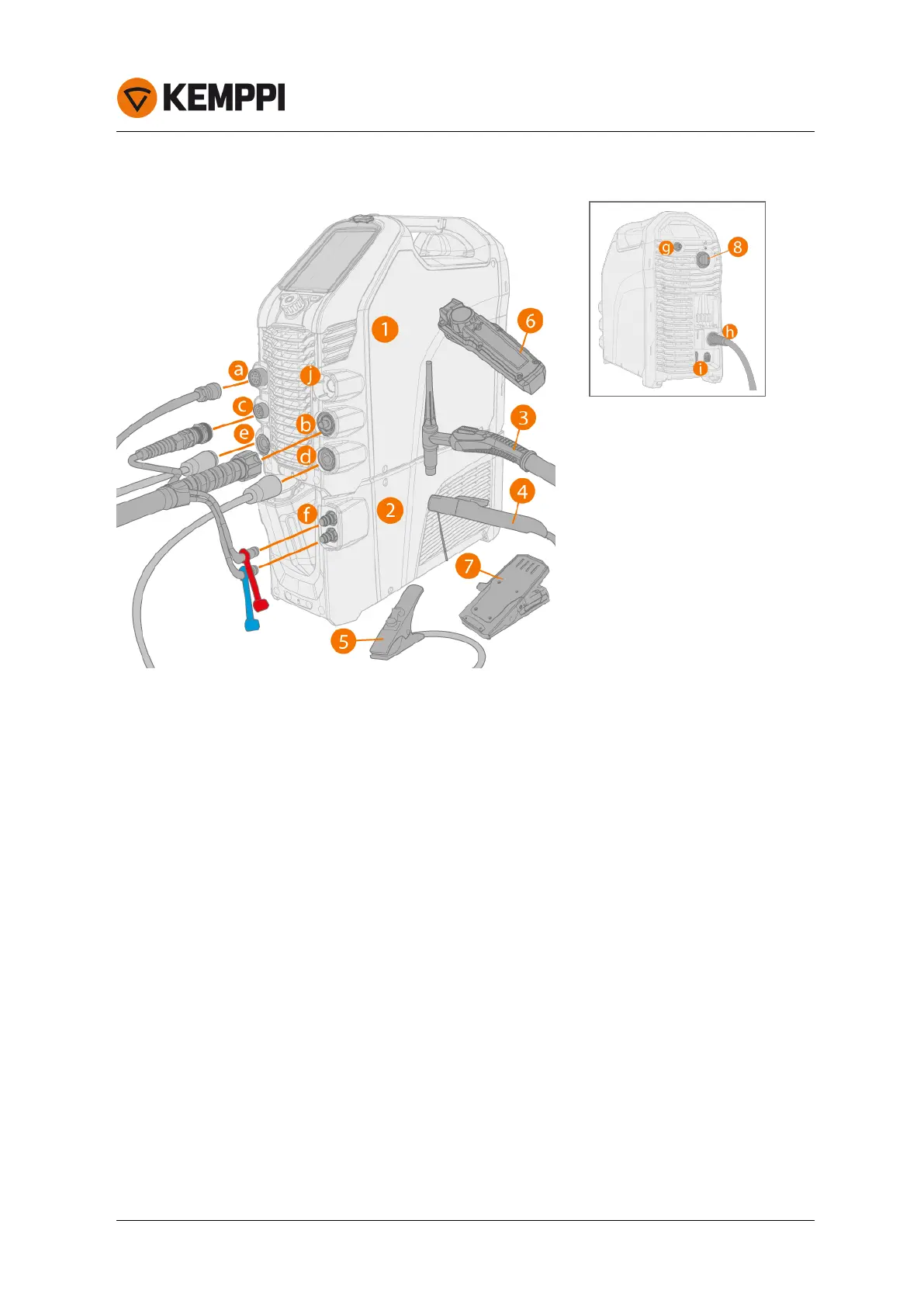

Equipment:
1. MasterTig 235/325/335 power source
2. MasterTig Cooler M (optional)
3. TIG torch
4. Electrode holder
5. Earth return cable and clamp
6. Remote control (wired or wireless)
7. Foot pedal remote control (wired or wireless)
8. Power ON/OFFswitch.
Connections:
a. External remote control connector
b. TIG welding cable connector
c. Control cable connector
d. DIX connector (-)
e. DIX connector (+)
f. Coolant liquid inlet and outlet (color-coded)
g. Gas hose connection
h. Mains cable
i. Cooling unit connection
j. Empty holder for unused DIX connector.
© Kemppi
6/77 1920900 / 1939
