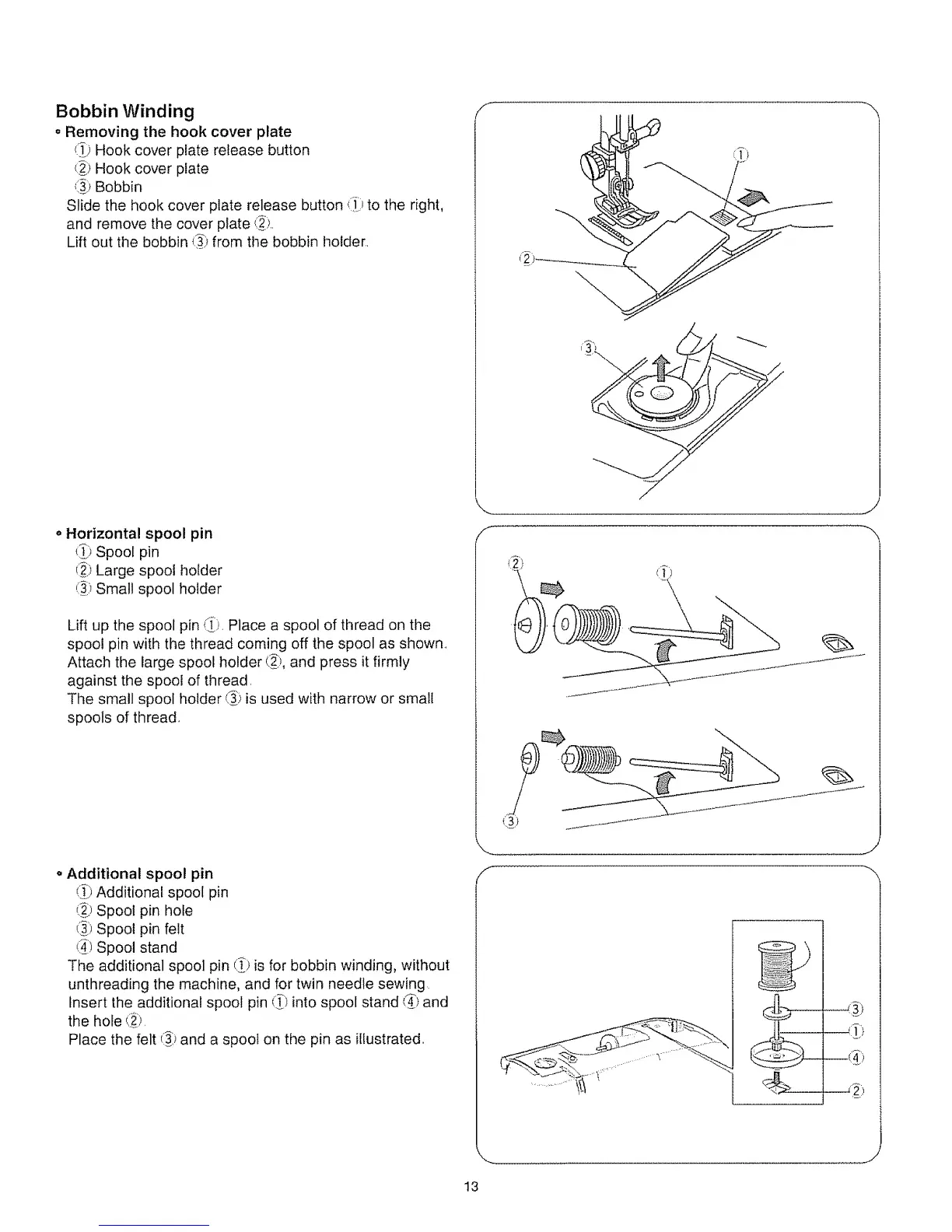

Bobbin Winding
o Removing the hook cover plate
!_._Hook cover plate release button
(_) Hook cover plate
_ii_iBobbin
Slide the hook cover plate release button _ii[_to the right,
and remove the cover plate (_)_.
Lift out the bobbin {ii_)from the bobbin holder.,
/f
o Horizontal spool pin
(i) Spool pin
€i_)Large spool holder
_1_i)Small spool holder
Lift up the spool pin _J_i).Place a spool of thread on the
spool pin with the thread coming off the spool as shown.
Attach the large spool holder (_'_,and press it firmly
against the spool of thread,
The small spool holder (_ is used with narrow or small
spools of thread..
o Additional spool pin
(_.)Additional spool pin
(_i.)Spool pin hole
_) Spool pin felt
(._)Spool stand
The additional spool pin (_)is for bobbin winding, without
unthreading the machine, and for twin needle sewing
Insert the additional spool pin (_) into spool stand _ and
the hole _i_.
Place the felt €_i>and a spool on the pin as illustrated,,
f
f
J
--(zi"i
13
