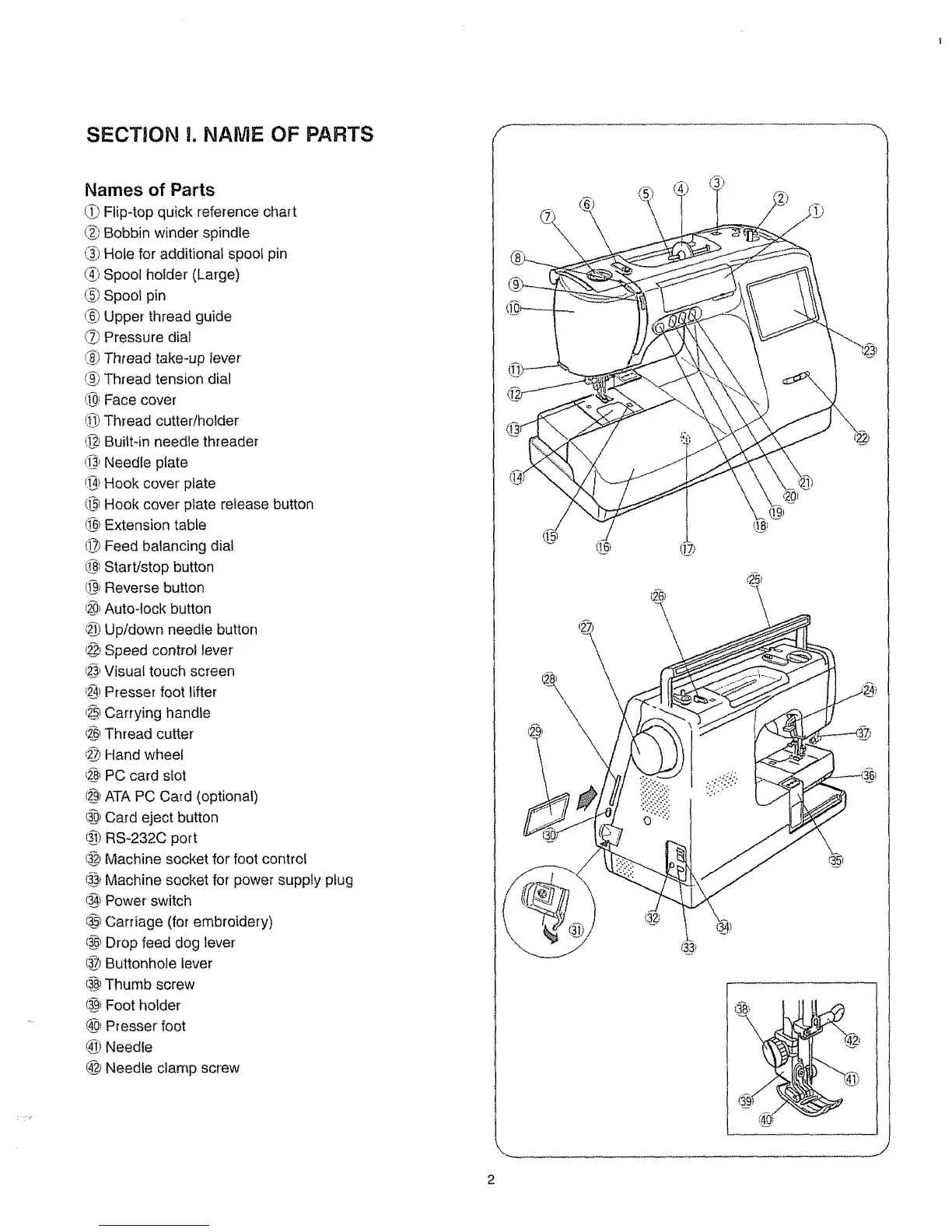

SECTION 1.NAME OF PARTS
Names of Parts
(,_1Flip-top quick reference chart
(_ Bobbin winder spindle
(_ Hole for additional spool pin
@,Spool holder' (Large)
_,_Spool pin
_) Upper thread guide
(,_ Pressure dial
(_8_Thread take-up lever
ci_)Thread tension dial
<i-0_Face cover
(1_)Thread cutter/holder
_ Built-in needle threader
([}_Needle plate
i1_)Hook cover plate
(_ Hook cover plate release button
(_) Extension table
(!_ Feed balancing dial
(_ Start/stop button
(_) Reverse button
€_O_Auto-lock button
_ Up/down needle button
_2"_Speed control lever
{_ Visual touch screen
_) Presser foot lifter
_ Carrying handle
_ Thread cutter
_,_Hand wheel
_2_PC card slot
4_iATA PC Card (optional)
{_ Card eject button
(_) RS-232C port
i_ Machine socket for foot control
t_, Machine socket for power supply plug
!_) Power switch
i_ Carriage (for embroidery)
l_ Drop feed dog lever
(_ Buttonhole lever
{_ Thumb screw
(@1Foot holder
@_Presser' foot
@ Needle
4@Needle clamp screw
S
\
2
