BRUSH MOTOR DISASSEMBLY/ASSEMBLY

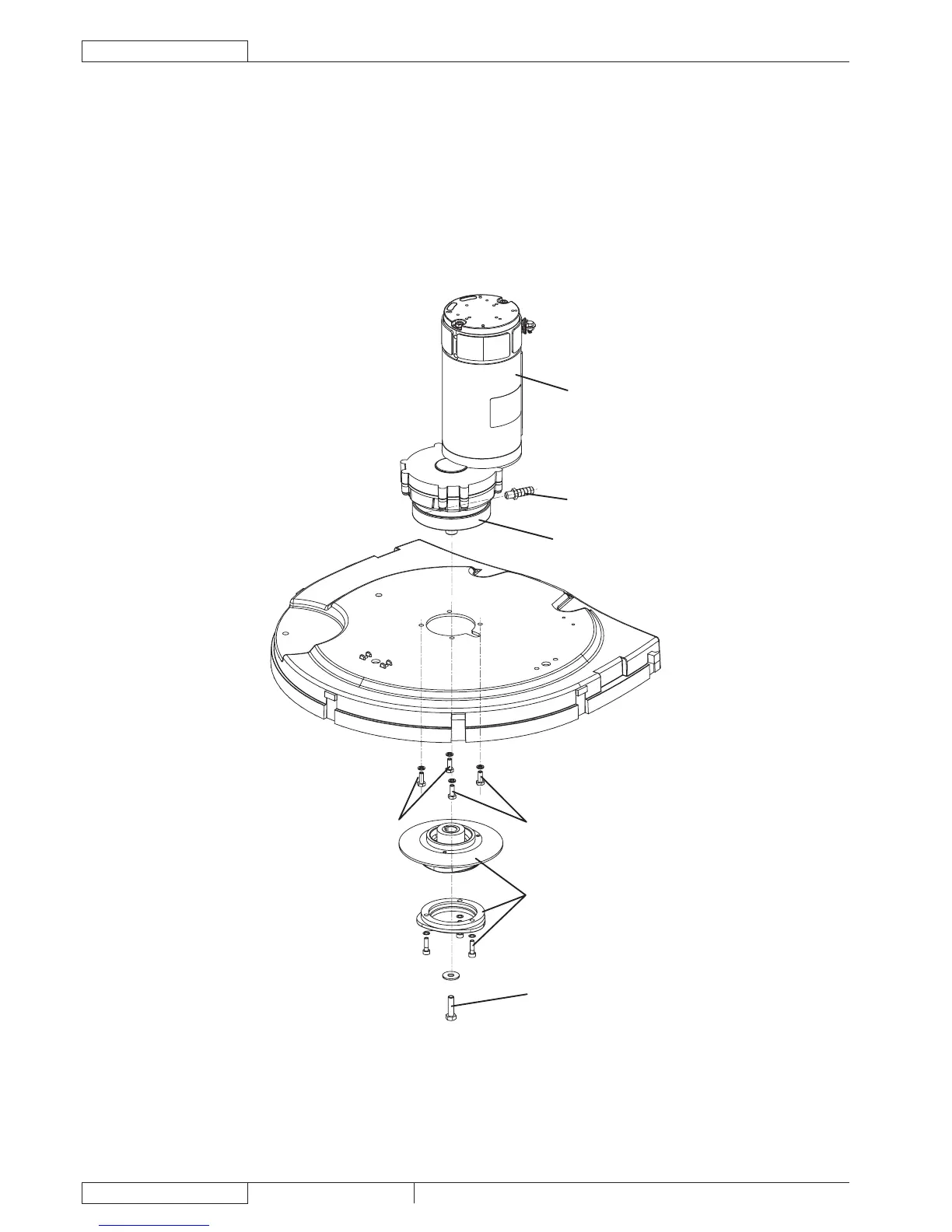

Disassembly
Remove the deck (see the procedure in the relevant paragraph).1.
At the workbench, remove the screw (A) from the deck.2.
Remove the hub assembly (B) with a puller.3.
Remove the screws (C).4.
Remove the reduction unit (D).5.
6.
Assembly
Assemble the components in the reverse order of disassembly.7.
D
E
F
C
C
B
A
S301544
