RECOVERY WATER SYSTEM
SERVICE MANUAL
ENGLISH
Razor™ 20 / 20T 9097065000(2)2009-06
23
VACUUM SYSTEM MOTOR FILTER CLEANING
Disassembly and cleaning
If the tank (21) contains recovery water:1.
Drive the machine to the appointed recovery water disposal area.
(For Razor™ 20) Turn off the switches (71) and (73).
Empty the recovery water tank (21) with the hose (16).
2.
3.
(For Razor™ 20) Turn off the switches (71) and (73).
Grasp the handle (41) and carefully lift the tank (40).4.
5.
6.
Assembly
Assemble the components in the reverse order of disassembly.7.
VACUUM SYSTEM MOTOR ELECTRICAL INPUT CHECK
WARNING!
If the tank (21) contains recovery water:1.
Drive the machine to the appointed recovery water disposal area.
(For Razor™ 20) Turn off the switches (71) and (73).
Empty the recovery water tank (21) with the hose (16).
2.
3.
(For) Turn off the switches (71) and (73).
Disconnect the battery connector (12).4.
Grasp the handle (41) and carefully lift the tank (40).5.

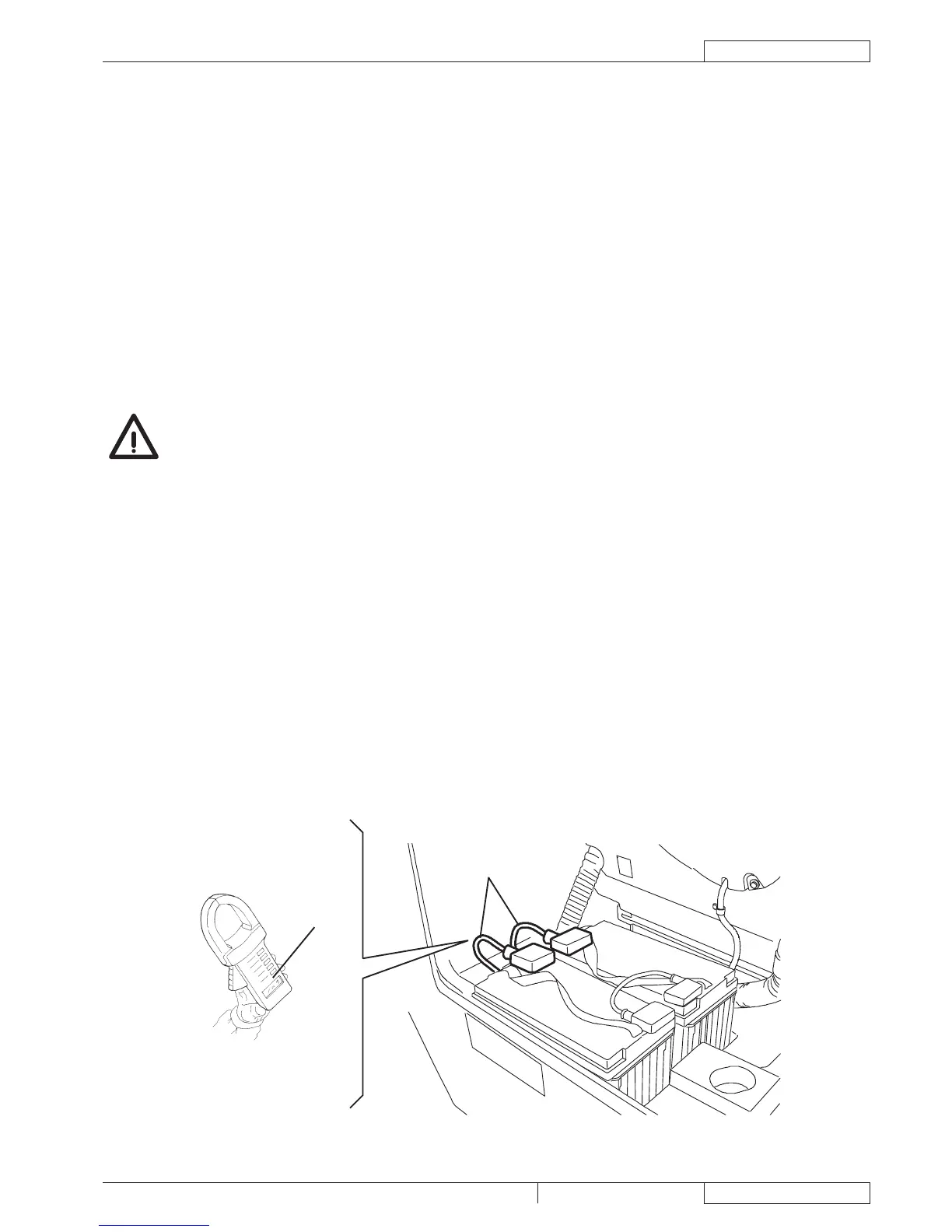

Apply the amperometric pliers (A) on one cable (B) of the batteries.6.
7.
- Turn on the vacuum system by pressing the switch (73) and check that the motor electrical input is 16 - 19 A at 24 V. 8.
Turn off the vacuum system by pressing the switch (73).
Remove the amperometric pliers (B).
(see the procedure in the relevant paragraph).
If necessary, disassemble the vacuum system motor (see the procedure in the relevant paragraph),
and check the condition of all its components.
If the above-mentioned procedures do not lead to a correct electrical input, the motor must be replaced
(see the procedure in the relevant paragraph).
Perform steps 4 and 5 in the reverse order.9.
