KENT Razor 20 - Function Electronic Board Disassembly;Assembly

ELECTRICAL SYSTEM
SERVICE MANUAL
ENGLISH
Razor™ 20 / 20T 9097065000(2)2009-06
41

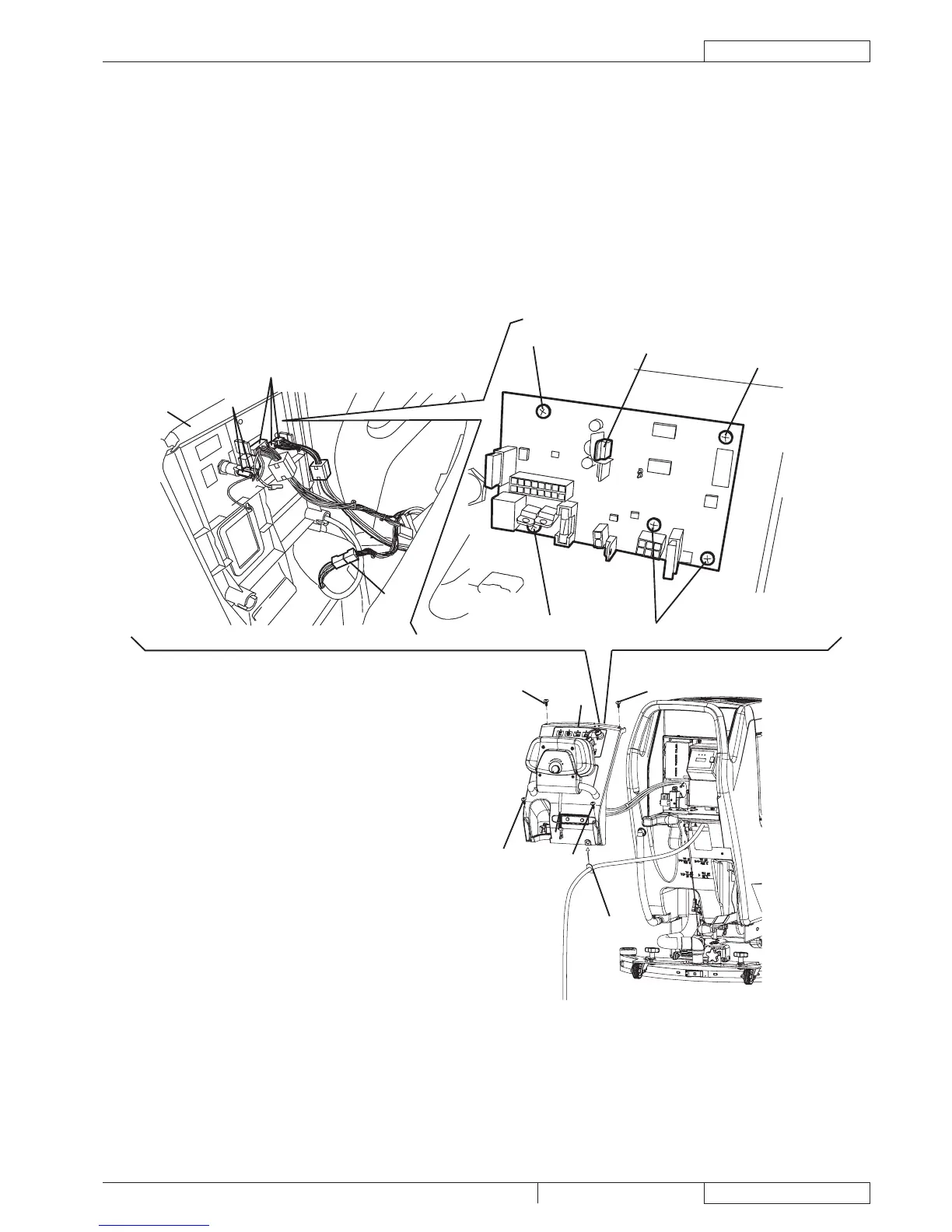

FUNCTION ELECTRONIC BOARD DISASSEMBLY/ASSEMBLY
Disassembly
Disconnect the battery connector (12).1.
Move aside the recovery water drain hose (16).2.
Remove the battery charger cable (6) from the cable holder (7).3.
Remove the screws (A) and carefully move aside the panel (B) by disengaging the cable grommet (C) from its housing on the 4.
panel (B).
Disconnect the connectors (D), (E), (F), and remove the panel (B).5.
On the panel, remove the screws (G), then remove the function electronic board (H).6.
Assembly
Assemble the components in the reverse order of disassembly. 9.
B
D
E
F
G
H
G
G
G
A
A
B
A
A
C
S301575K
