KENT Razor 20 - COMPONENT LAYOUT (for Razor 20)

ELECTRICAL SYSTEM
SERVICE MANUAL
ENGLISH
Razor™ 20 / 20T 9097065000(2)2009-06
43
M2
BAT
EV1
C1
HM
CH
F4
ES2
F1
C2
EB1
ES1
F2
CS
M1
S301575A

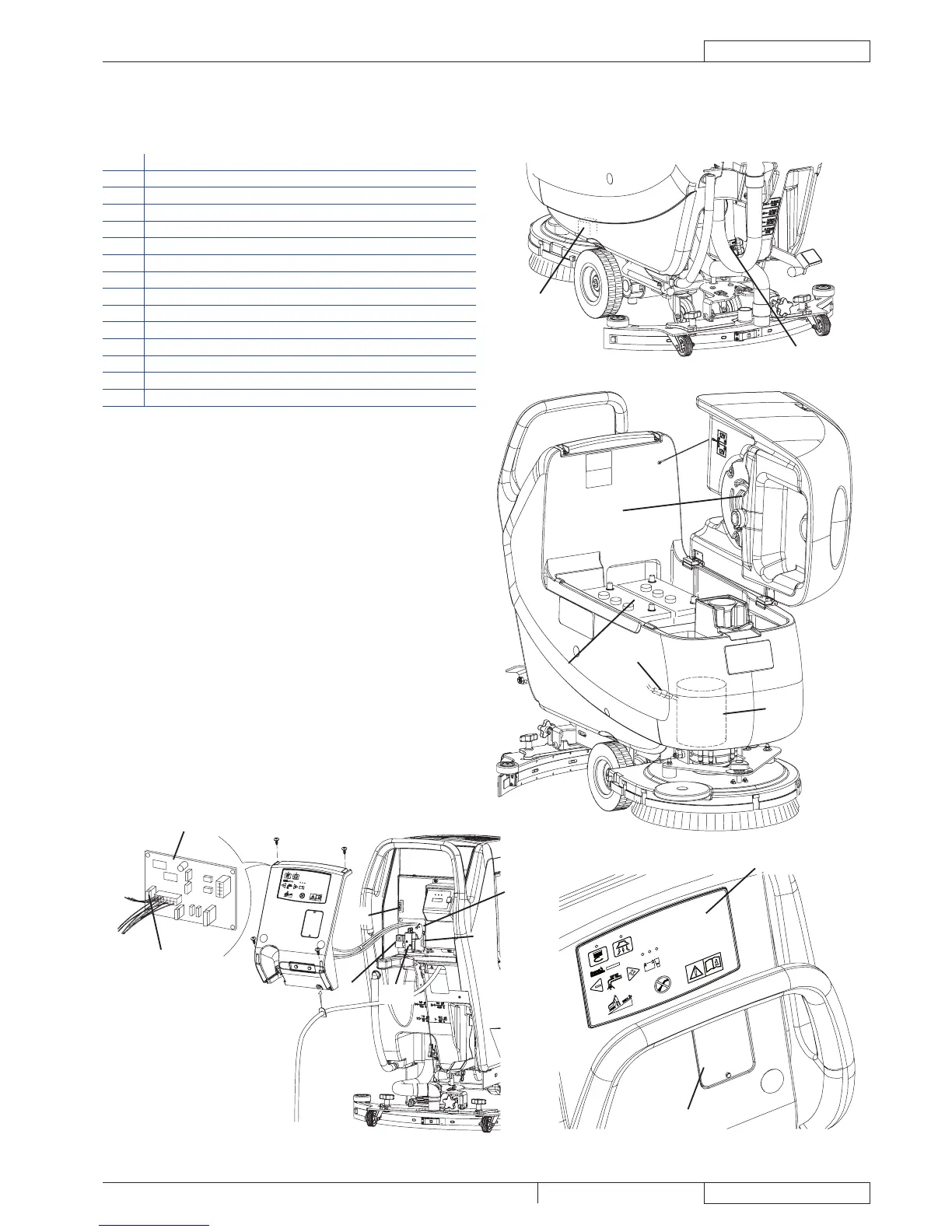

COMPONENT LAYOUT - Razor™ 20
Key
BAT 24 V battery
C1 Battery connector
C2 Battery charger connector
CH Battery charger
CS Deck connector
EB1 Function electronic board
ES1 Brush electromagnetic switches
ES2 Vacuum system relay
EV1 Water solenoid valve
F1 Deck fuse
F2 Vacuum system fuse
F4 Signal circuit fuse
HM Hour counter (optional)
M1 Brush/pad-holder motor
M2 Vacuum system motor
