KENT Razor 20 - DRIVE SYSTEM ELECTRONIC BOARD DISASSEMBLY;ASSEMBLY (for Razor 20 T)

ELECTRICAL SYSTEM
ENGLISH
SERVICE MANUAL
40
9097065000(2)2009-06 Razor™ 20 / 20T
DRIVE SYSTEM ELECTRONIC BOARD DISASSEMBLY/ASSEMBLY (For Razor™ 20T)

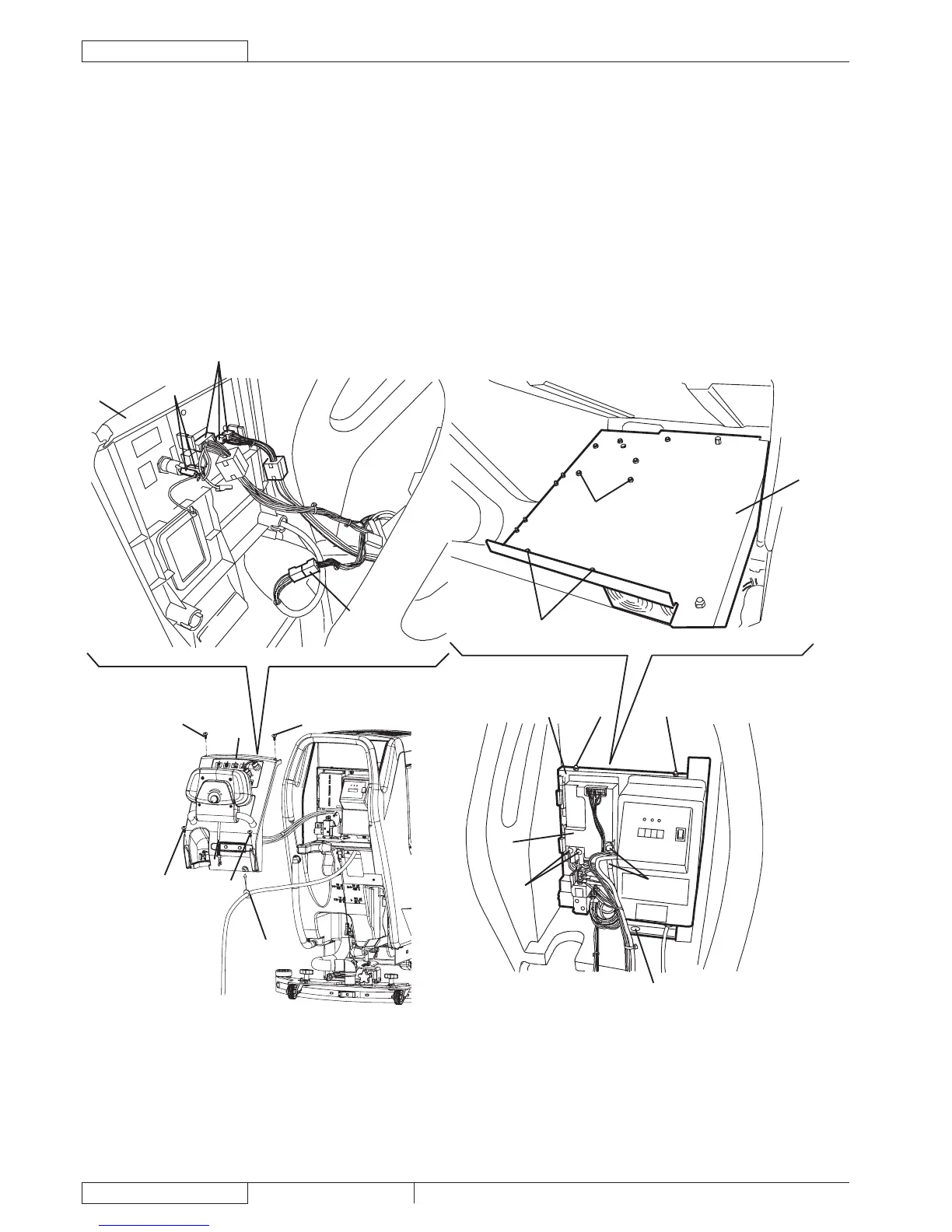

Disassembly
Disconnect the battery connector (12).1.
Move aside the recovery water drain hose (16).2.
Remove the battery charger cable (6) from the cable holder (7).3.
Remove the screws (A) and carefully move aside the panel (B) by disengaging the cable grommet (C) from its housing on the 4.
panel (B).
Disconnect the connectors (D), (E), (F), and remove the panel (B).5.
Disconnect the connectors (G) of the drive system electronic board (H).6.
Remove the screws (I) and move the electrical panel (J) by disengaging it from the lower fastener (K).7.
Remove the screws (L) on the rear side of the electrical panel (J), then remove the drive system electronic board (H).8.
Assembly
Assemble the components in the reverse order of disassembly. 9.
B
D
E
F
A
A
B
A
A
C
L
L
J
J
I
I
H
G
G
K
S301573A S301574A
