FUSE CHECK/REPLACEMENT
Disconnect the battery connector (12).1.
Move aside the recovery water drain hose (16).2.
Remove the battery charger cable (I) from the cable holder (J).3.

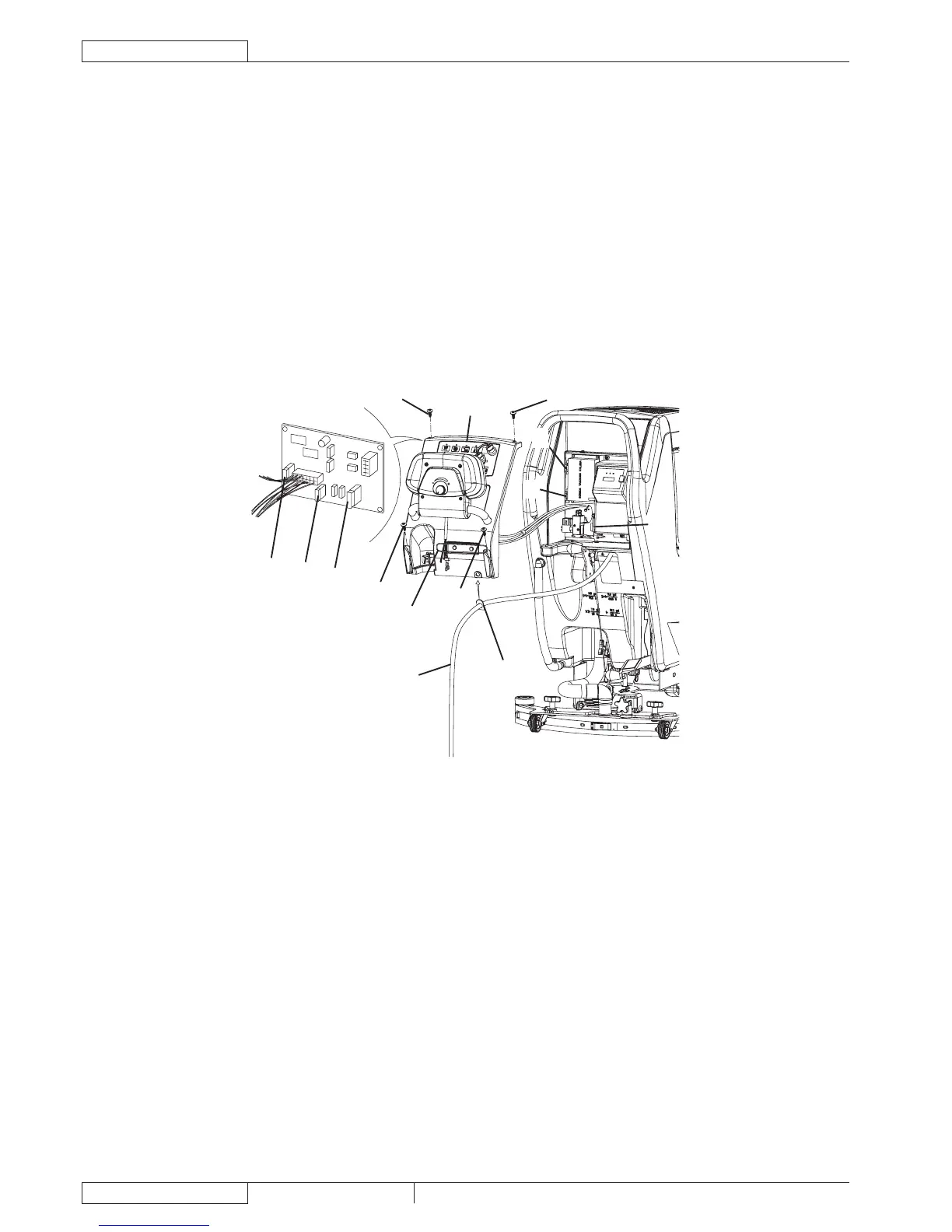

Remove the screws (A) and carefully move aside the panel (B) by disengaging the grommet (K) from its housing on the panel 4.
(B).
Check/replace the following fuses:5.
(C) - F1 fuse, deck: (40 A)
(D) - F2 fuse, vacuum system: (30 A)
(F) - F4 fuse, signal circuits: (3 A)
Perform steps 1 to 4 in the reverse order.6.
