DRIVE SYSTEM MOTOR-DIFFERENTIAL DISASSEMBLY/ASSEMBLY (For Razor™ 20T)
Disassembly
If the tank (21) and/or (20) contains recovery water:1.
Drive the machine to the appointed disposal area.

Empty the recovery water tank (21) with the hose (16).
Empty the solution tank (20) with the hose (17).
Remove the squeegee (see the procedure in the relevant paragraph).2.
Remove the batteries (see the procedure in the relevant paragraph).3.

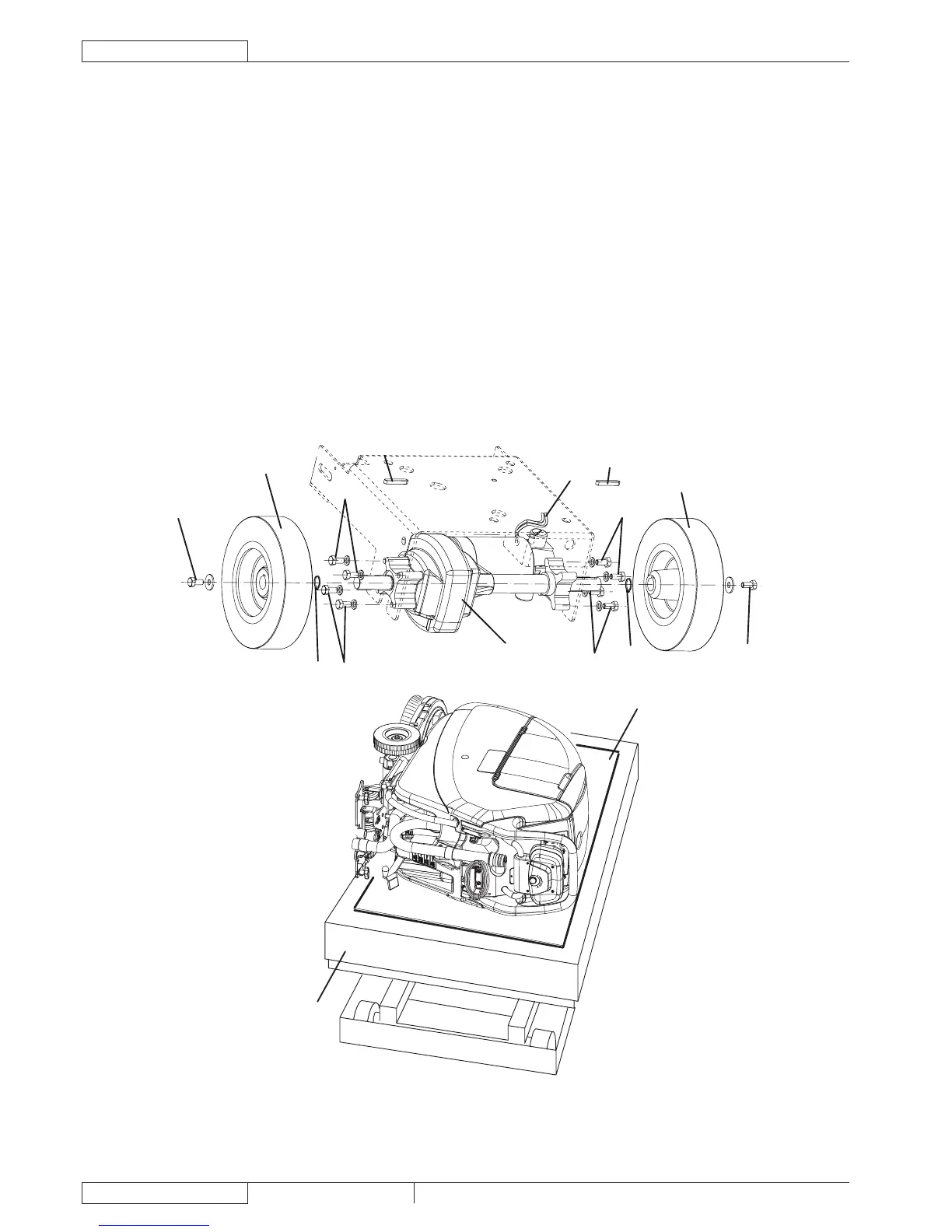

Prepare an hoisting system (A) on which the machine is to be laid on one side. Place a panel (B) on the hoisting system to 4.
avoid damaging the machine.
With the help of an assistant, tilt the machine on one side and lay it on the panel (B).5.
Remove the screws (C), then remove the wheels (D) and recover the keys (E).6.
Remove the screws (F) on both sides.7.
Disconnect the connectors (G) of the drive system motor.8.
If necessary, remove the spacers (I) and the retaining rings.9.
Remove the motor-differential (J).10.
Assembly
Assemble the components in the reverse order of disassembly.11.
B
A
C
D
F
E
E
F
F
F
I
C
D
G
J
I
P100155K
