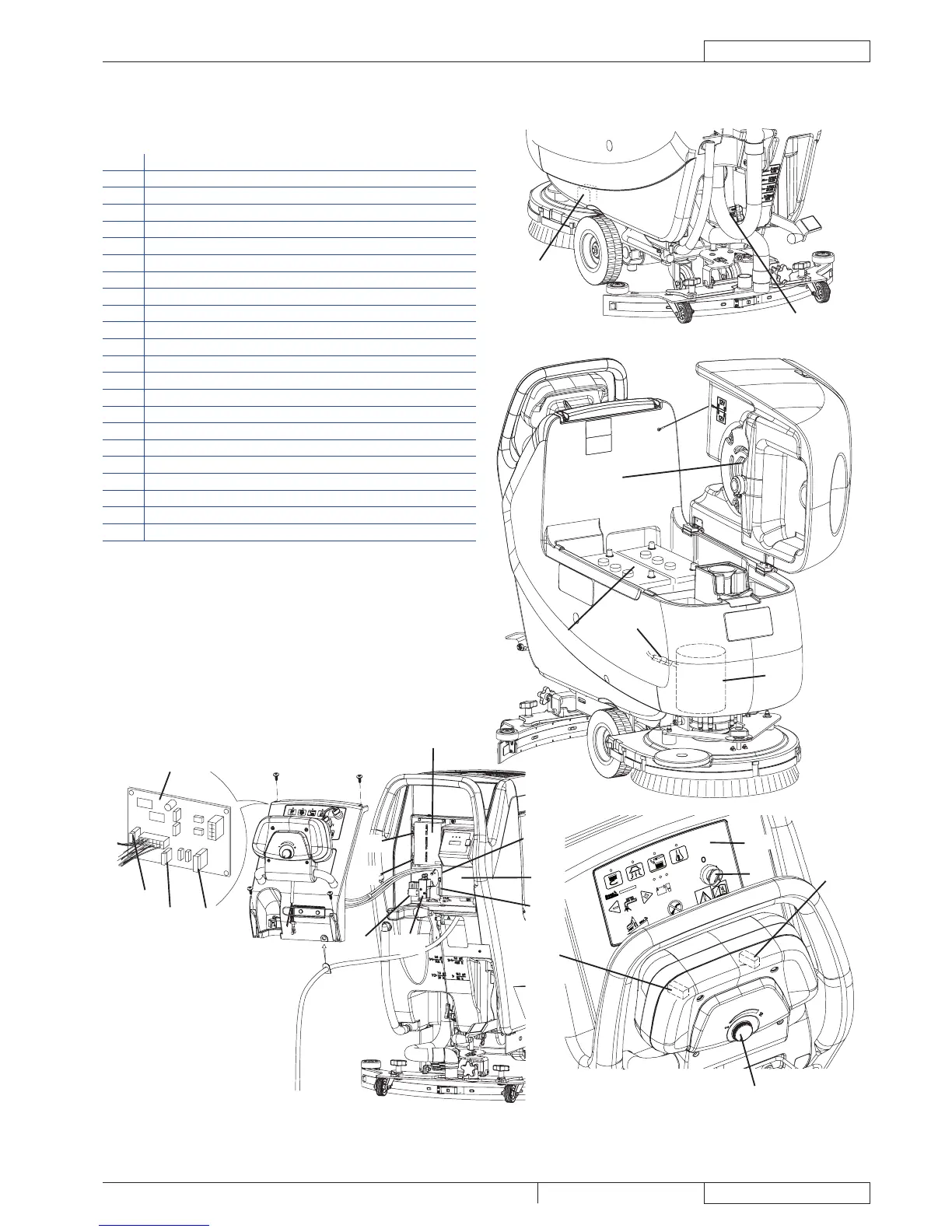

KENT Razor 20 - COMPONENT LAYOUT (for Razor 20 T)

ELECTRICAL SYSTEM
SERVICE MANUAL
ENGLISH
Razor™ 20 / 20T 9097065000(2)2009-06
45
M2
BAT
EV1
C1
F4
ES2
F1
C2
EB1
CS
M1
F2
ES1
RV2
HM
K1
SW2
SW1
F5
F6
EB2
F3
CH
S301579K
COMPONENT LAYOUT - Razor™ 20T
Key
BAT 24 V battery
C1 Battery connector
C2 Battery charger connector
CH Battery charger
EB1 Function electronic board
EB2 Drive system electronic board
ES1 Brush electromagnetic switches
ES2 Vacuum system relay
EV1 Water solenoid valve
F1 Deck fuse
F2 Vacuum system fuse
F3 Drive system fuse
F4 Signal circuit fuse
F5 Brush/pad-holder release fuse
F6 Pump fuse
HM Hour counter (optional)
K1 Ignition key
M1 Brush/pad-holder motor
M2 Vacuum system motor
M3 Drive system motor
RV2 Maximum speed potentiometer
SW1 Brush/drive system enabling switch
SW2 Reverse gear switch
