Other External Components
54

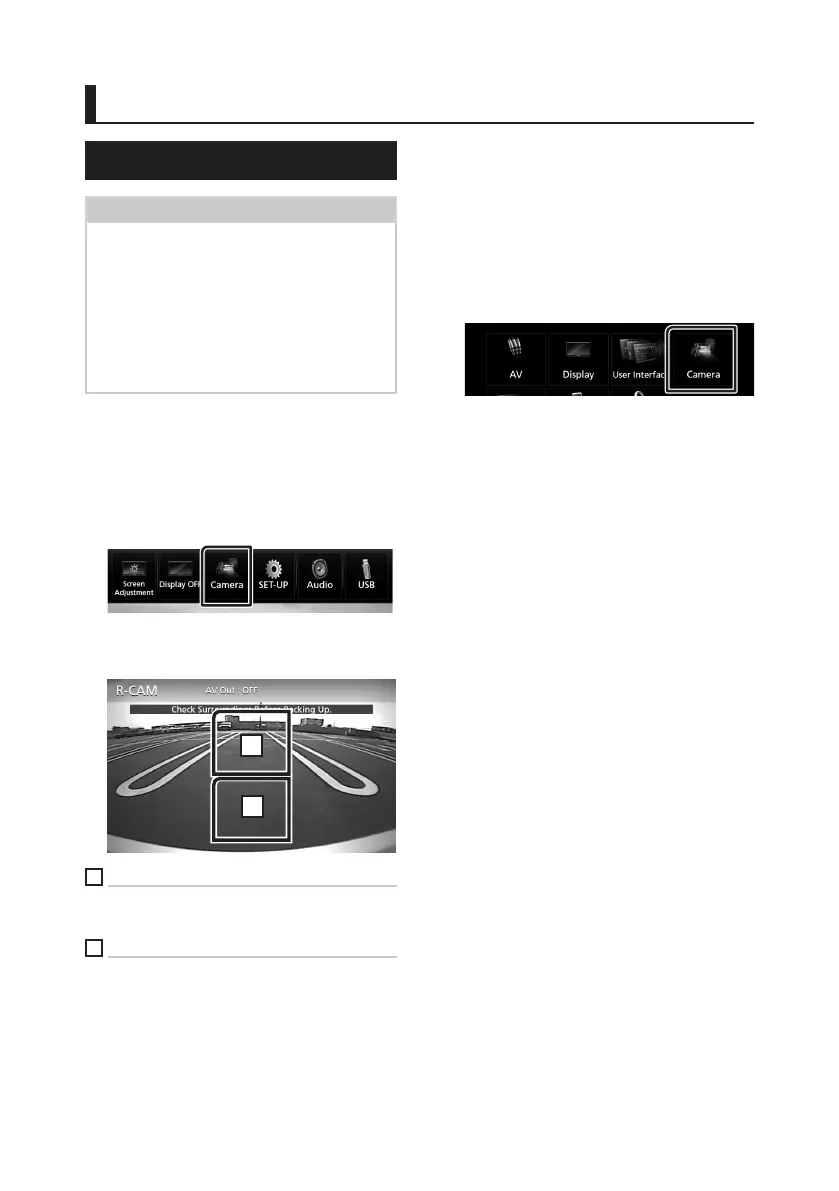

Other External Components
View Camera
NOTE
• To connect a camera, see P.81.
• To use a rear view camera, a REVERSE lead
connection is required. (P.79)
• The view of the front view camera or dashboard
camera varies depending on the setting of
[Dashboard Camera /Front Camera].
• If [R-CAM Interruption] is set to on, the camera
screen is displayed when you shift the gear to the
reverse (R) position.
Ñ Display the camera screen
1
Press the [MENU] button.
 Popup menu appears.
2
Touch [Camera].
 View camera screen appears.
3
Adjust each item as follows.
2
1
1
Switching the View Camera
Touch to change the front view camera or
dashboard camera and rear view camera.
2
Camera off
Touch to exit the camera screen.
Ñ Camera Setup
1
Press the [MENU] button.
 Popup menu appears.
2
Touch [SETUP].
 SETUP Menu screen appears.
3
Touch [Camera].
 Camera screen appears.
4
Set each item as follows.
■ R-CAM Interruption
ON: Displays the picture from the rear view
camera when you shift the gear to the
reverse (R) position.
OFF (Default): Select this when no camera is
connected.
■ R-CAM for Car interface
ON: Select when you connected an external
system unit. Neither buttons nor titles are
displayed.
OFF (Default): Select when you connected a
rear camera.
■ Parking Guidelines
You can display parking guidelines to enable
easier parking when you shift the gear to the
reverse (R) position.
Default is “ON”.
■ Guidelines SETUP
If you select [ON] for [Parking Guidelines],
adjust the parking guidelines. See To adjust
the parking guidelines (P.55).
■ Dashboard Camera /Front Camera
(DDX9717BTS)
Dashboard Camera: Select this when the
dashboard camera is connected.
Other: Select this when the other camera is
connected.
OFF (Default): Select this when no camera is
connected.
