R-SE9T/ DP-SE9/ X-SE9 (En)
11
Preparation section Basic section Application section Know ledge sections
System connection
Caution regarding placement
To maintain proper ventilation, be sure to leave a
space around the unit (from the largest outer dimen-
sions including projections) equal to, or greater than,
shown below.
top panel : 50cm
side panel : 10cm
rear panel : 10cm
1.In case an associated system component is connected, also read the instruction manual of the component.
2.Insert the optical-fiber cable straight into the connector until it clicks.
3.Be sure to attach the protection cap when the connector is not used.
4.Be careful not to bend, coil or bundle the optical fiber cable.
Notes
Notes

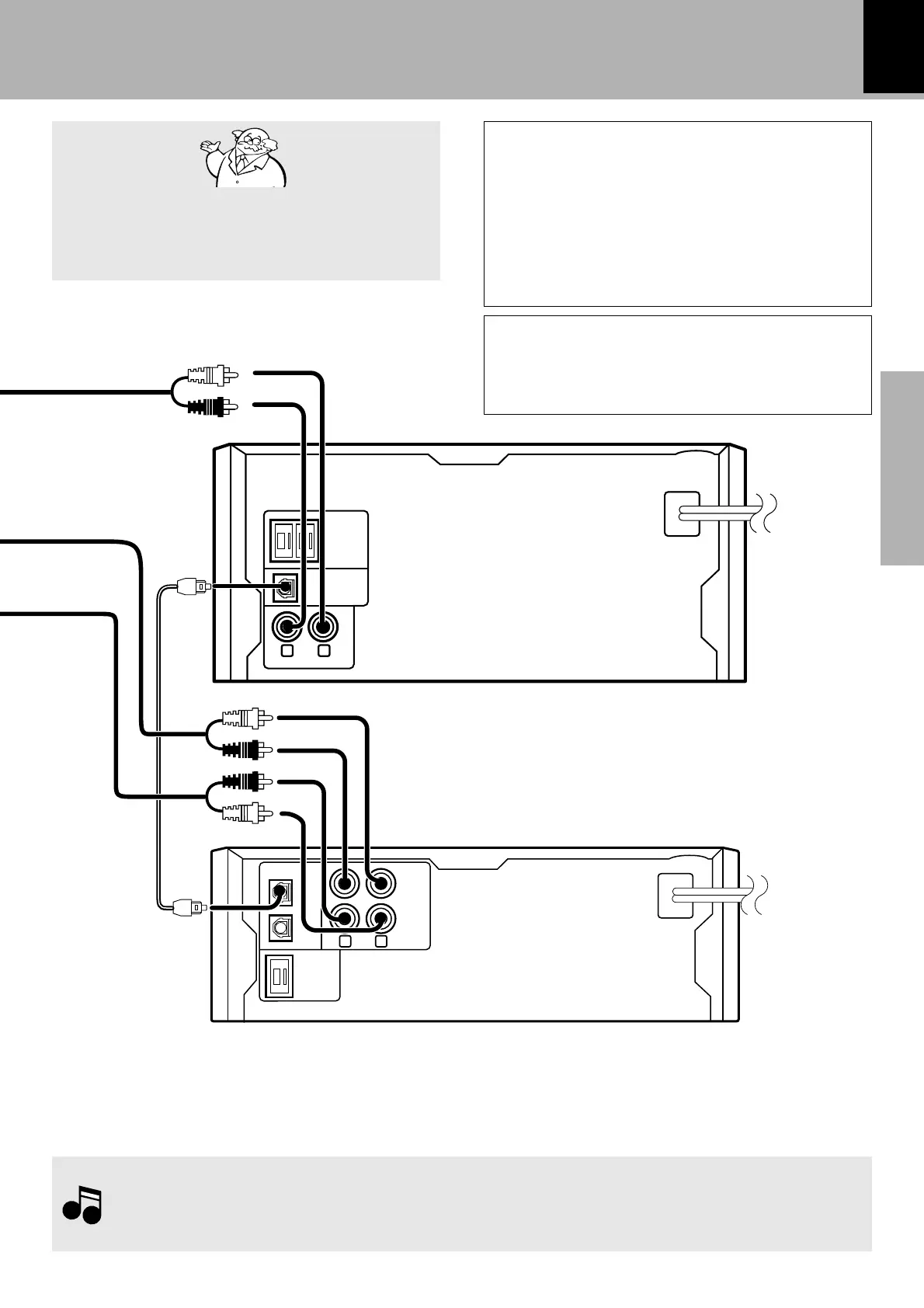

Caution for Connection
When connections are to be made, make sure that
the power plug is not plugged into a wall AC outlet.
Connect the equipment as shown in the figures.
DP-SE9
DM -SE9 (optional)
Optical
fiber cable
(Supplied
with DM-SE9)
Audio cord (x2)
(Supplied with DM-SE9)
Ventilation fan
The ventilation fan runs high-power reproduction.
To allow for proper ventilation, do not block the ven-
tilation fan.
LR
DIGITAL IN
OPTICAL
SYSTEM
CONTROL
REC
IN
PLAY
OUT
1
2
DIGITAL
OUTPUT
OPTICAL
SYSTEM
CONTROL
LINE OUTPUT
LR
