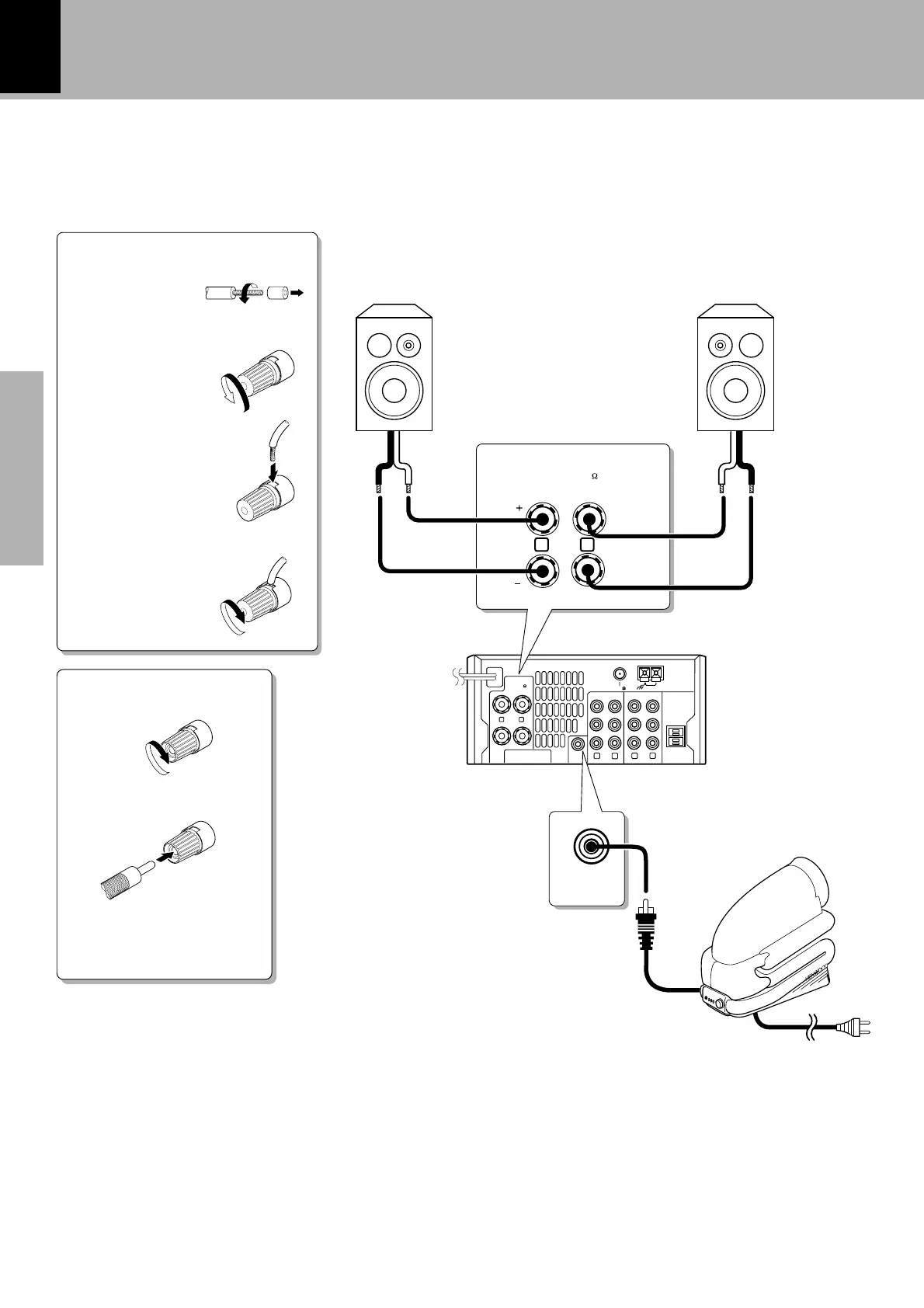

Connect the speakers as shown in the figure.
Do not plug the power cord into a wall AC outlet until the connection has been completed.
3. Connection of speakers
1 Cord preparation.
2 Loosen.
3 Insert.
4 Secure.
R-SE9T
¶ Never short-circuit the + and – speaker cords.
The protection circuit will operate and no sound will
be put out.
¶ If the left and right speaker connections or the + and
– polarity are inverted, the sound will be unnatural
with unclear localization of musical instruments, etc.
Be sure to connect them without mistake.
Speaker (left)
(6-16Ω)
·ª ª·
Super woofer (SW-500) (optional)
Extremely low frequency sound is played back powerfully.
This can be used with any type of playback.
1 Secure.
2 Insert.
• Sound will not be heard if
the speaker terminal is not
fully secured.
Connection of banana plugs
