R-SE9T/ DP-SE9/ X-SE9 (En)
13
Preparation section Basic section Application section Know ledge sections
System connection
SYSTEM
CONTROL
ANTENNA
AM
GND
CD
IN
IN
REC
PLAY
SUPER
WOOFER
PRE OUT
SPEAKERS
( 6 - 16 )
L
R
TAPE
TAPE
REC
PLAY
MD
MD
AUX
R
R
L
L
FM75
+
-
SYSTEM
CONTROL
REC
IN
PLAY
OUT
L
R
LR
DIGITAL IN
OPTICAL
SYSTEM
CONTROL
REC
IN
PLAY
OUT
1
2
DIGITAL
OUTPUT
OPTICAL
SYSTEM
CONTROL
LINE OUTPUT
LR

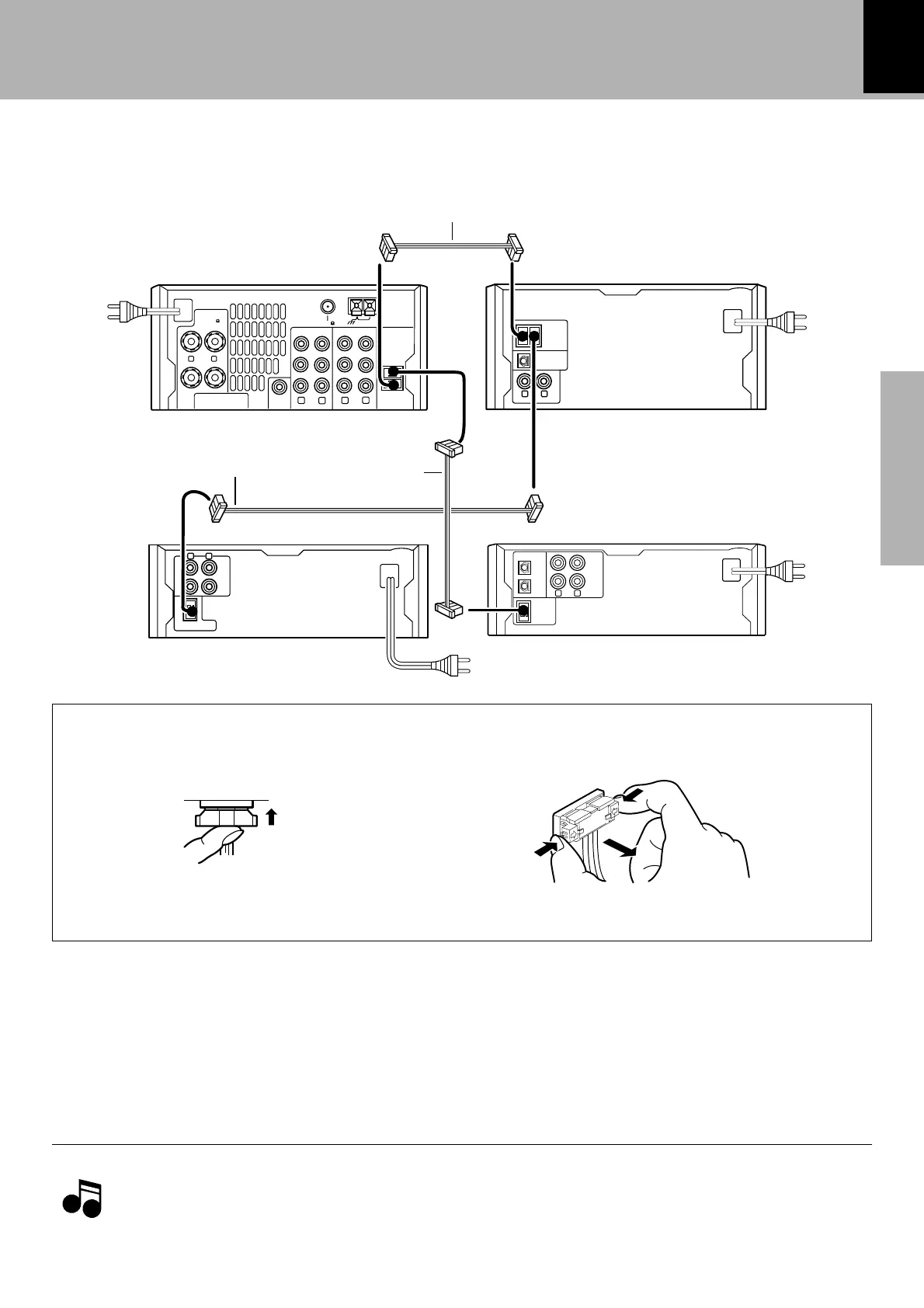

Connect the system control cords and the power cords as shown in the figure.
4. Connection of system control cord
Connection of system control cord
Insert the plug straight into the connector until it locks.
Plugging the connector
While pushing the two sides of connector in, pull it
straight out.
Unplugging the connector
To wall
AC outlet
To wall
AC outlet
To wall
AC outlet
To wall
AC outlet
System control cord
(Supplied with R-SE9T)
System control cord
(Supplied with X-SE9)
R-SE9T
DM -SE9 (optional)
DP-SE9
X-SE9 (optional)
Insert the power cord plug into a wall AC outlet after all other connections have been completed.
5. Pow er Cord Connection
1.Be sure to insert all connection cords securely. If their connections are imperfect, the sound may not be produced
or noise may interfere.
2.Before plugging or unplugging a connection cord, be sure to unplug the power cord from the wall AC outlet.
If connection cords are plugged or unplugged with the power cord left plugged in, malfunction or damage may
result.
Notes
Notes
System control
cord (Supplied
with DM-SE9)
