Kenwood R-SE9T User Manual

R-SE9T/ DP-SE9/ X-SE9 (En)
10
Preparation sectionBasic sectionApplication sectionKnow ledge sections

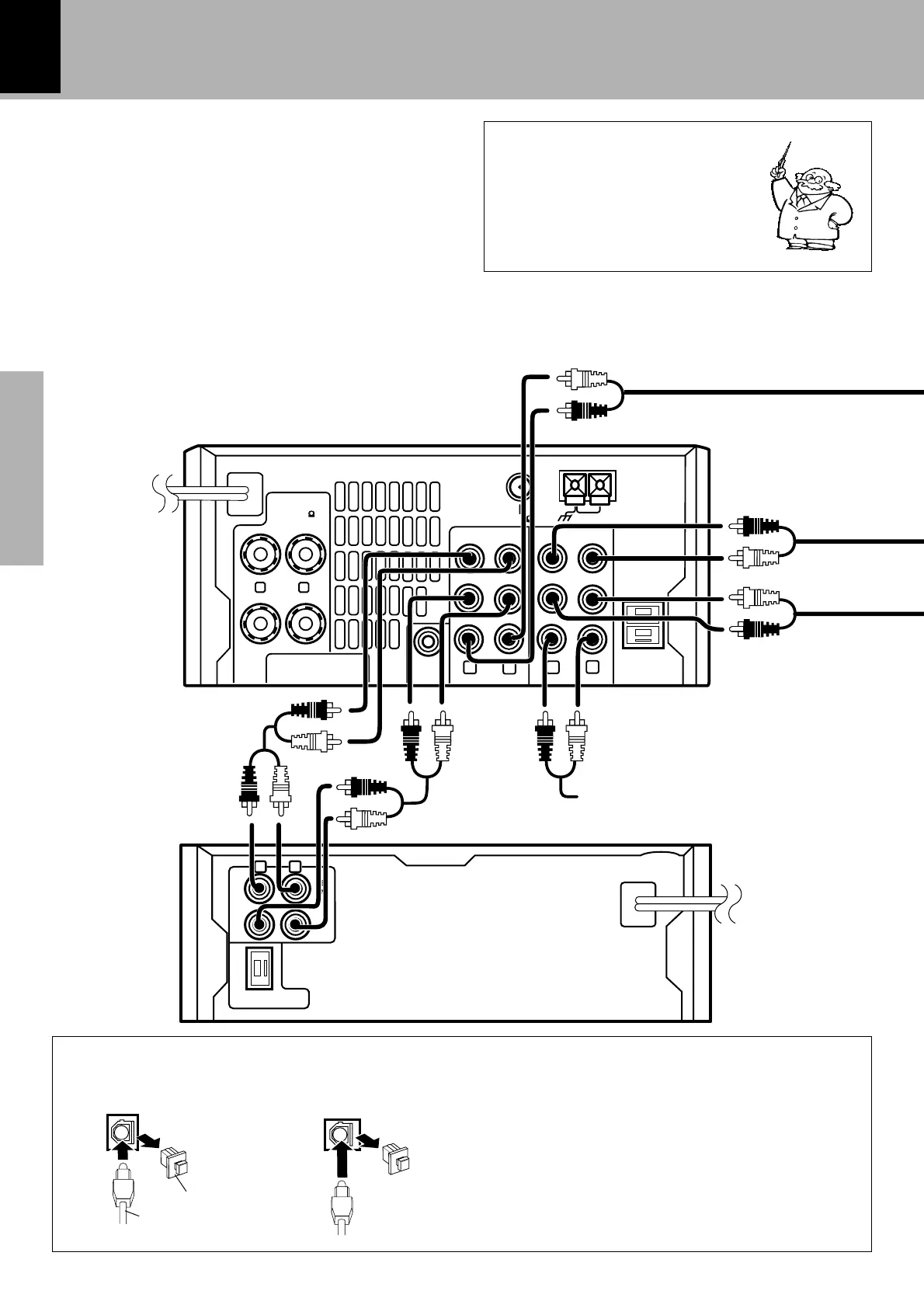

System connection
Here, connection of separately sold components
also will be explained under consideration of
system connection. Please install correctly
according to the purchased components and
connect the required cords.
2. Connection of audio cord
M alfunction of microcomputer
If operation is not possible or erro-
neous display appears even though
all connections have been made
properly, reset the microcomputer re-
ferring to “In case of difficulty”.
W
DIGITAL
OUTPUT
OPTICAL
DIGITAL IN
OPTICAL
Connection w ith Optical Fiber Cable
This is used for digital connections. Digital trans-
mission permits recording without loss of the
high CD sound quality.
Remove the cap and connect an optical fiber
cable.
Remove cap
Optical fiber cable
DP-SE9
DM-SE9
Audio cord (Supplied with R-SE9T)
Audio cord (x2)
(Supplied with
X-SE9)
R-SE9T
X-SE9 (optional)
[ ]
Optional record player with internal
RIAA equalizer/amp (P-100)
or videodeck (etc.).
SYSTEM
CONTROL
ANTENNA
AM
GND
CD
IN
IN
REC
PLAY
SUPER
WOOFER
PRE OUT
SPEAKERS
( 6 - 16 )
L
R
TAPE
TAPE
REC
PLAY
MD
MD
AUX
R
R
L
L
FM75
+
-
SYSTEM
CONTROL
REC
IN
PLAY
OUT
L
R
