Kenwood R-SE9T User Manual

R-SE9T/ DP-SE9/ X-SE9 (En)
9
Preparation section Basic section Application section Know ledge sections
System connection
SYSTEM
CONTROL
ANTENNA
AM
GND
CD
IN
IN
REC
PLAY
SUPER
WOOFER
PRE OUT
SPEAKERS
( 6 - 16 )
L
R
TAPE
TAPE
REC
PLAY
MD
MD
AUX
R
R
L
L
FM75
+
-
ANTENNA
AM
GND
FM75
ANTENNA
AM
GND
FM75

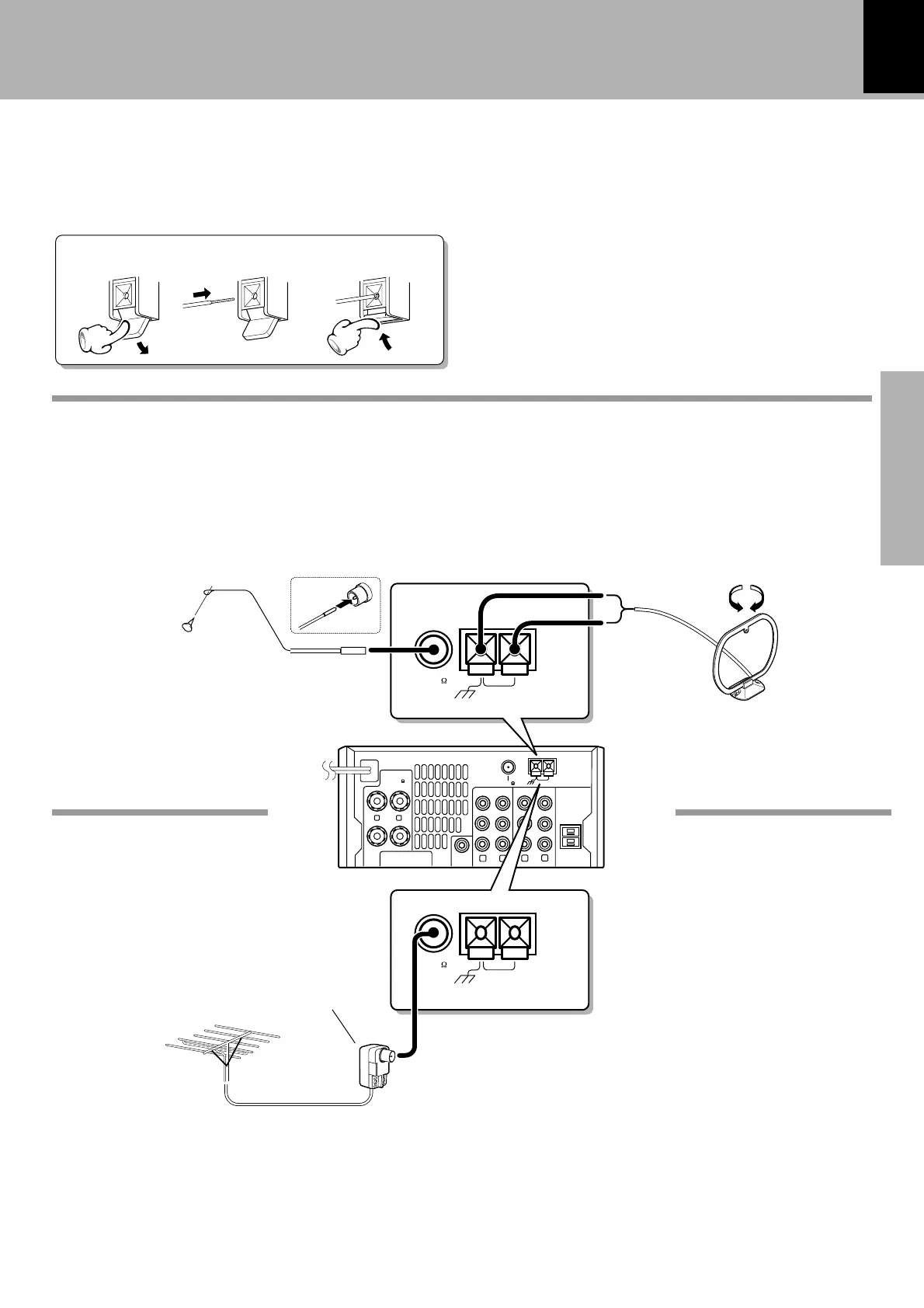

System connection
Connect the antenna as shown in the figure.
Do not plug the power cord into a wall AC outlet until the connection has been completed.
1. Antenna connection
123
Connection of the Accessory Antenna
FM indoor antenna
The accessory antenna is for temporary indoor use only.
For stable signal reception we recommend using an out-
door antenna. Remove the indoor antenna if you connect
one outdoors.
1 Locate the position providing good
reception condition.
2 Fix the antenna.
AM loop antenna
The supplied antenna is for indoor use. Place it as far as
possible from the main system, TV set, speaker cords and
power cord, and set it to a direction which provides the
best reception.
FM outdoor antenna
Lead the 75Ω coaxial cable connected to the FM outdoor
antenna into the room and connect it to the FM 75Ω
termimal.
Antenna adapter
(commercially
available)
FM outdoor
antenna
(commercially
available)
AM loop
antenna
FM indoor
antenna
In case of bad reception
R-SE9T
