9 Data output RS 232 C
9.1 Technical Data
 8-bit ASCII code
 8 Data bits, 1 stop bit, no parity bit
 Baud rate selectable for 300, 600, 1200, 2400, 4800 and 9600 Baud
 Miniature plug necessary (9 pol D-Sub)
 For operation with interface faultless operation is ensured only with the respective
KERN- interface cable (max. 2m)

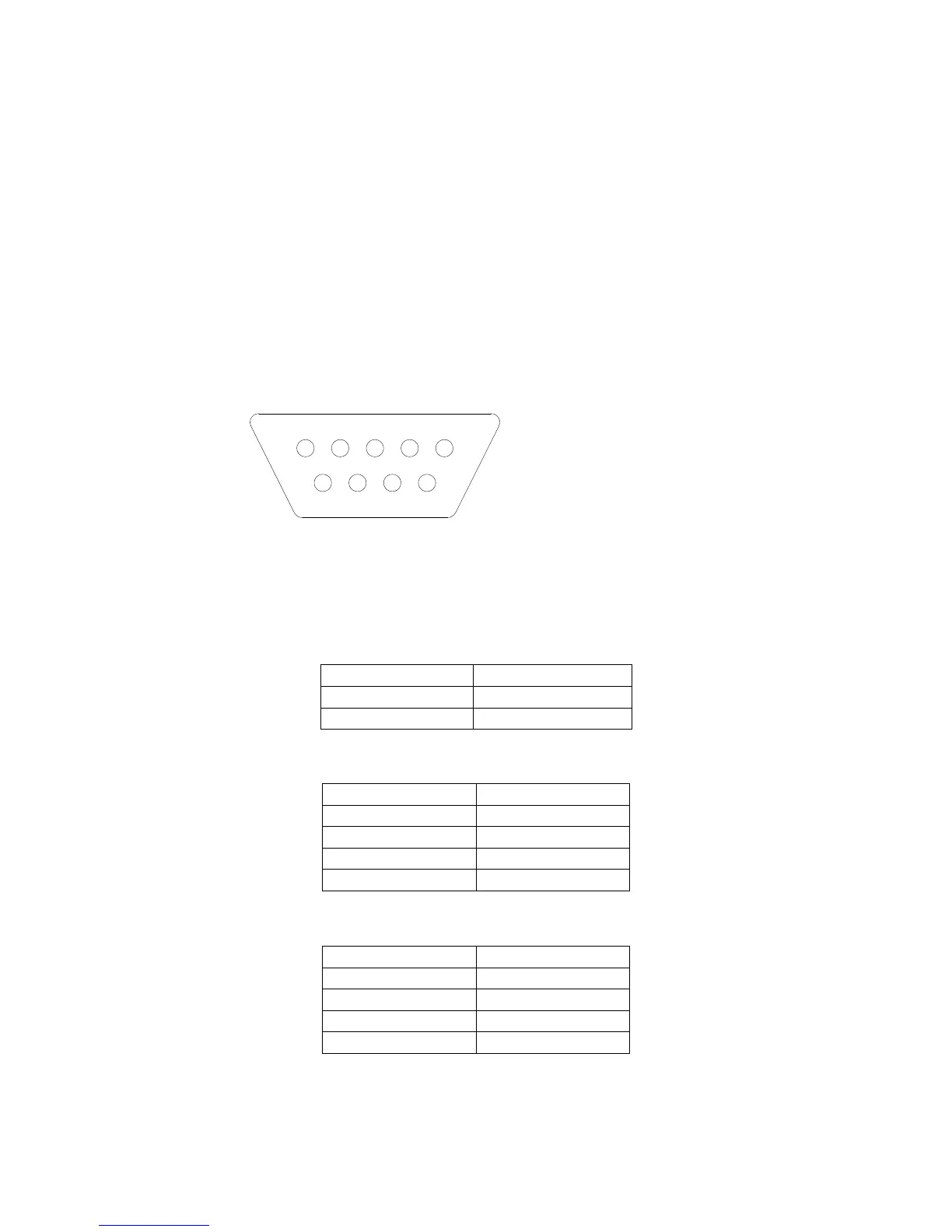

9.2 Pin allocation of the balance exit plug (front view)
5 1
9 6
Pin 2: Receive data
Pin 3: Transmit data
Pin 5: Signal ground
9.3 Interface cables
Ö Balance printer
3 (TxD) 1 (RxD)
5 (GND) 3 (GND)
7 - 8 clench
Ö Balance - PC 9-pole
2 (RxD) 3 (TxD)
3 (TxD) 2 (RxD)
5 (GND) 5 (GND)
4 - 6 clench 4 - 6 clench
7 - 8 clench 7 - 8 clench
Ö Balance - PC 25-pole
2 (RxD) 3 (TxD)
3 (TxD) 7 (GND)
5 (GND) 4 – 5 clench
7 - 8 clench 6 - 20 clench
2 (RxD)
