Keyence DL-EP1 User Manual

1-2
1
Before Using
- EtherNet/IP Compatible Network Unit DL-EP1 User’s Manual (GT2) -
1-1 DL-EP1 Overview
The DL-EP1 operates as an EtherNet/IP communication adaptor. EtherNet/IP
communications enable you to output the ON/OFF control signals and current values
of the DL-EP1 and sensor amplifiers connected to the DL-EP1 as communication
data to a PLC or other equipment.
The DL-EP1 supports EtherNet/IP cyclic communication (Implicit messaging) and
message communication (Explicit messaging). Cyclic communication enables data
exchange without a ladder program. Message communication allows for reading/
writing sensor amplifier parameters and issuing commands to the sensor amplifiers.

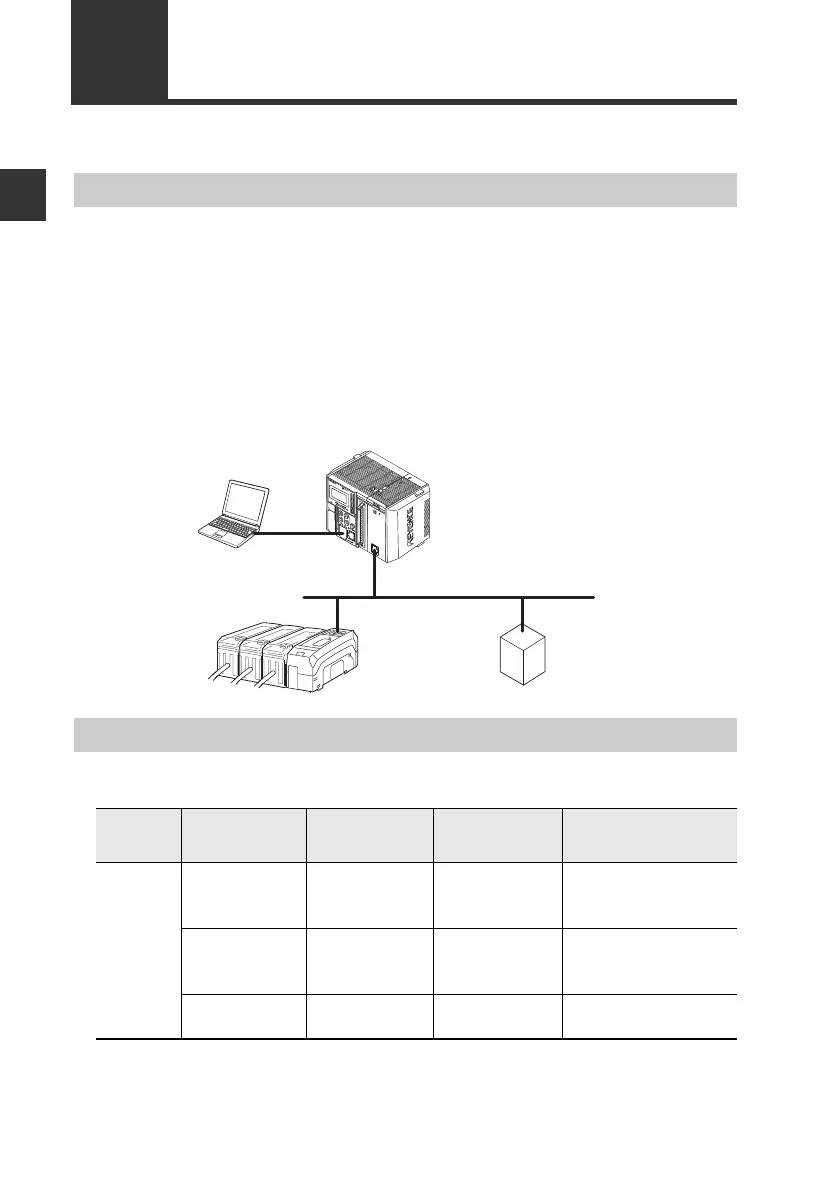

■ System configuration example
■ Number of Connectable Sensor Amplifiers
* Up to 11 sensor heads can be connected by adding a head connection board to
the main unit.
Overview
PLC or other host device
(EtherNet/IP unit)
DL-EP1 (this unit)
EtherNet/IP
adaptor
EtherNet
Connectable Sensor Amplifiers
Name Amplifier form Main unit
Expansion
unit
Maximum number of
connectable units
GT-2
Series
DIN rail mount
type
GT2-71(M)(C)N
GT2-71(M)(C)P
GT2-72(M)(C)N
GT2-72(M)(C)P
15
(1 main unit,
14 expansion units)
Panel mount
type
GT2-75N
GT2-75P
GT2-76N
GT2-76P
15
(1 main unit,
14 expansion units)
Large display
type
GT2-100N
GT2-100P
-
1
(1 main unit)*
