Keyence DL-EP1 User Manual

1-5
1
Before Using
- EtherNet/IP Compatible Network Unit DL-EP1 User’s Manual (GT2) -

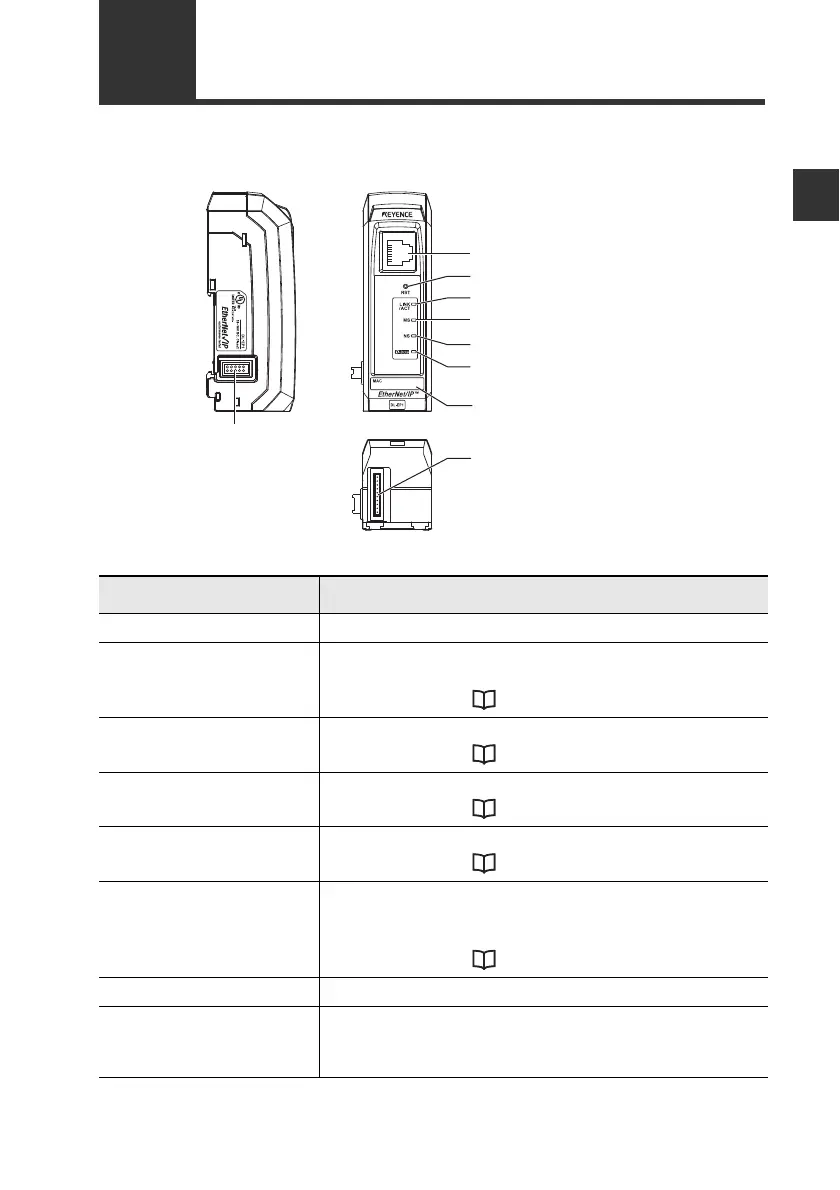

1-3 Names and Functions of Each Part
This section describes the part names and functions of the DL-EP1.
(8) Sensor amplifier connector
(for DIN rail mount type)
(1) RJ-45 connector
(2) Reset switch
(3) Link/activity indicator (green)
(4) Module status indicator (green/red)
(5) Network status indicator (green/red)
(6) Sensor communication indicator
(green/red)
(7) MAC address
(9) Sensor amplifier connector
(for panel mount type
and large display type)
Name Description
(1) RJ-45 connector Attach the network cable to this connector.
(2) Reset switch When held down for three seconds or longer, the DL-EP1
settings will be reset to the default settings.
For details, refer to "Default Settings" (Page 5-5).
(3) Link/activity
indicator
Normal: Green LED lights up or blinks
For details, refer to "Troubleshooting" (Page 5-3).
(4) Module status
indicator
Normal: Green LED lights up
For details, refer to "Troubleshooting" (Page 5-3).
(5) Network status
indicator
Normal: Green LED lights up
For details, refer to "Troubleshooting" (Page 5-3).
(6) Sensor communication
indicator
Indicates the status of communication between the DL-
EP1 and sensor amplifiers.
Normal: Green LED lights up
For details, refer to "Troubleshooting" (Page 5-3).
(7) MAC address MAC address for this DL-EP1
(8) Sensor amplifier
connector (for DIN rail
mount type)
Attach the sensor amplifier to this connector. When not
using this connector, remove it and replace with the
protective sticker.

Keyence DL-EP1 Specifications

General

Brand	Keyence
Model	DL-EP1
Category	Control Unit
Language	English
