2-3
2
Connection and Configuration
- EtherNet/IP Compatible Network Unit DL-EP1 User’s Manual (GT2) -
2-2 Installation and Connection to Sensor Amplifiers
 Number of Connectable Sensor Amplifiers
* Up to 11 sensor heads can be connected by adding a head connection board to
the main unit.
This section describes how to mount the DL-EP1 on the DIN rail and to connect it to
sensor amplifiers.
Sensor amplifiers supporting D-bus are connectable. You can connect one sensor to
the DL-EP1 as a main unit and one or more sensors to the main unit as expansion
units. (D-bus is the name of KEYENCE's wiring-saving system for sensor amplifiers.)
If the sensor amplifier is D-bus compatible, different models can be connected
together.
How many and what types of sensor amplifiers can be connected depends on the
sensor amplifiers or units to be connected. Please inquire for details.

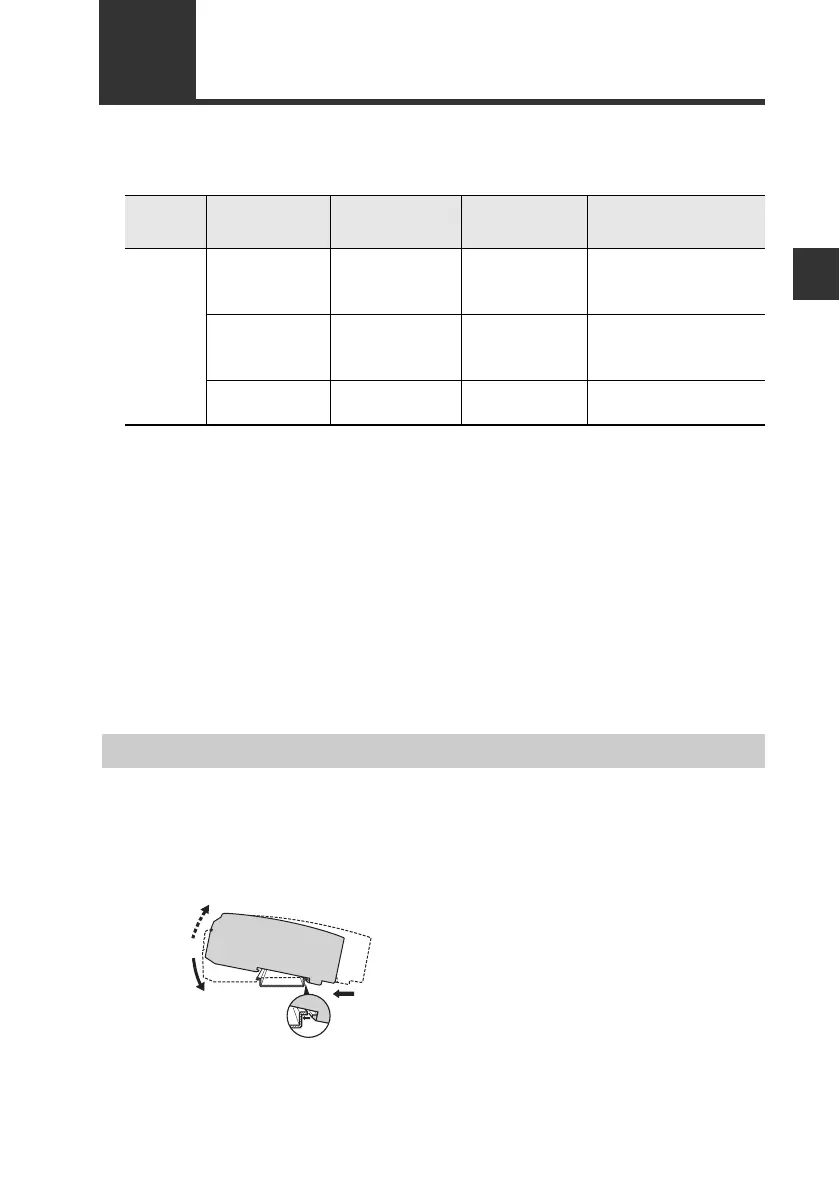

 Mounting the DL-EP1 on the DIN rail
1
Align the claw on the bottom of the DL-EP1 with the DIN rail. While
pushing the amplifier in the direction of arrow (1), press down in the
direction of arrow (2).
2
To remove the DL-EP1, raise the amplifier in the direction of arrow (3)
while pushing the DL-EP1 in the direction of arrow (1).
Name Amplifier form Main unit
Expansion
unit
Maximum number of
connectable units
GT-2
Series
DIN rail mount
type
GT2-71(M)(C)N
GT2-71(M)(C)P
GT2-72(M)(C)N
GT2-72(M)(C)P
15
(1 main unit,
14 expansion units)
Panel mount
type
GT2-75N
GT2-75P
GT2-76N
GT2-76P
15
(1 main unit,
14 expansion units)
Large display
type
GT2-100N
GT2-100P
-
1
(1 main unit)*
Mounting and connection to Sensor Amplifiers
(3)
(2)
(1)
