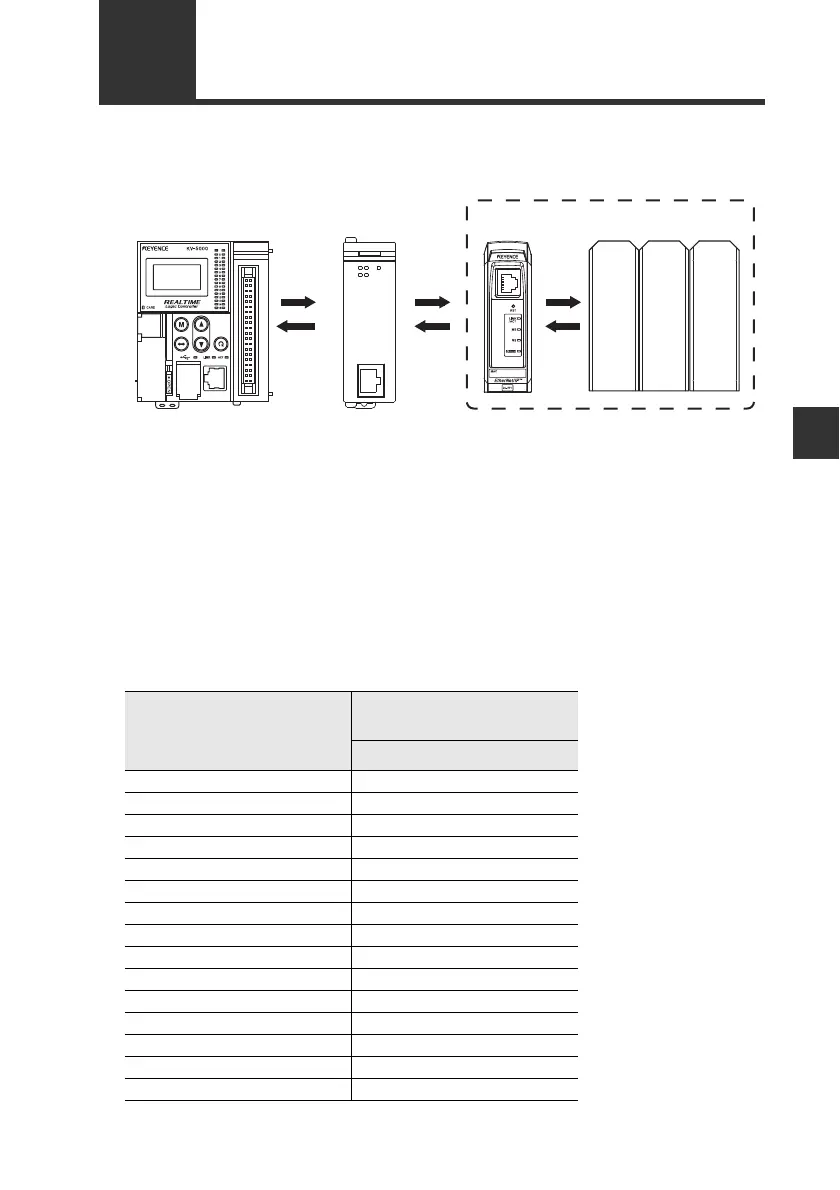

Data Processing Time
This section describes the length of time that lasts from detection by a sensor to data
processing by PLC.
Maximum data processing time = (1) + (2) + (3) + (4)
(1)PLC scan time
(2)RPI (Transmission cycle)
(3)DL-EP1 data communication time
(4)Sensor amplifier response time
(2)RPI is set with the scanner unit. It can be set in 0.5 ms increments between 0.5 ms
and 10000 ms.
(3)DL-EP1 data communication time
The time required for sending outputs and current value data from a sensor
amplifier to the DL-EP1 is as follows:
Sensor amplifier with calculation function OFF, or sensor amplifier with no
calculation function
* For GT2-100 series, add 50 ms to the values above.
Number of connected sensor
amplifiers
Output, judgment value, or
current value
GT2 series*
1 7.8 ms
2 9.8 ms
3 13.8 ms
4 15.8 ms
5 19.8 ms
6 21.8 ms
7 25.8 ms
8 27.8 ms
9 31.8 ms
10 33.8 ms
11 37.8 ms
12 39.8 ms
13 43.8 ms
14 45.8 ms
15 49.8 ms
CPU unit
EtherNet/IP
scanner
DL-EP1 Sensor amplifier
(1) (2) (3) (4)
