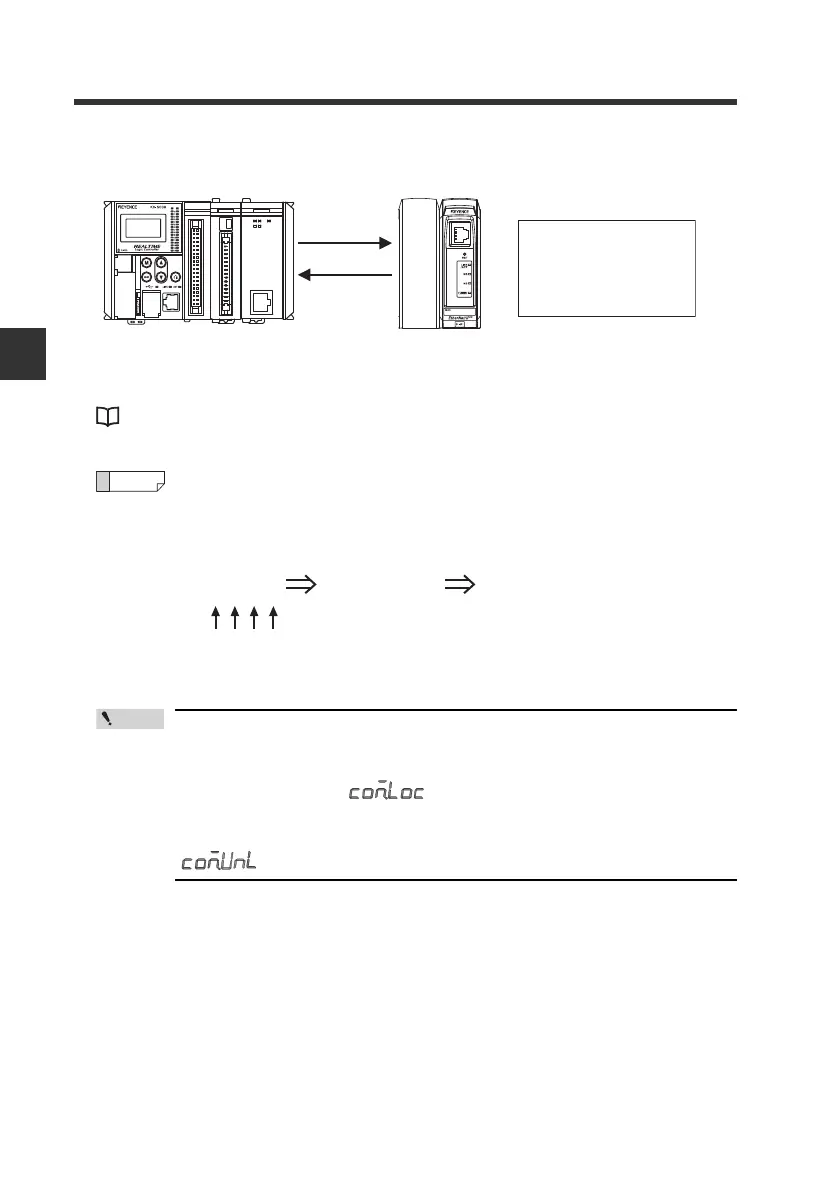

3-4 Message Communication
3-24
3
Communicating with the GT2 Series
(5) Reading the number of decimal places from a sensor amplifier
Message communication reads the number of decimal places of settings read
from the sensor amplifier.
"(5) Reading the number of decimal places in the parameter from a sensor
amplifier" (Page 3-51)
For the GT2 Series, if the current value is 12.53 mm, data is stored as
follows:
Data: 125300
Number of decimal places: 4
Perform calculation from the read data and the number of decimal places.
If message communication writes data to a sensor amplifier, issues an
operation command to the sensor amplifier, or locks sensor amplifier
operations, the sensor amplifier button operations are locked for about 10
seconds. "COM-Lock ( )" is displayed for about 2 seconds during
switching to the locked state or when an attempt is made to operate a
locked button. When button operation is unlocked, "COM-Unlock
( )" is displayed for about 2 seconds.
Command
Response
<Details of command>
Service code: 4CH
Class ID: 67H
Instance ID: 01H
Attribute ID: 0325H(805)
Reads the number of decimal
places of the GT2-7∗
comparator value (P.V. value).
Reference
125300 12.5300 12.53mm
Number of
decimal places
4321
