Keysight 86120D and 86122C Multi-Wavelength Meters User’s Guide 69

Using the 86122C 2

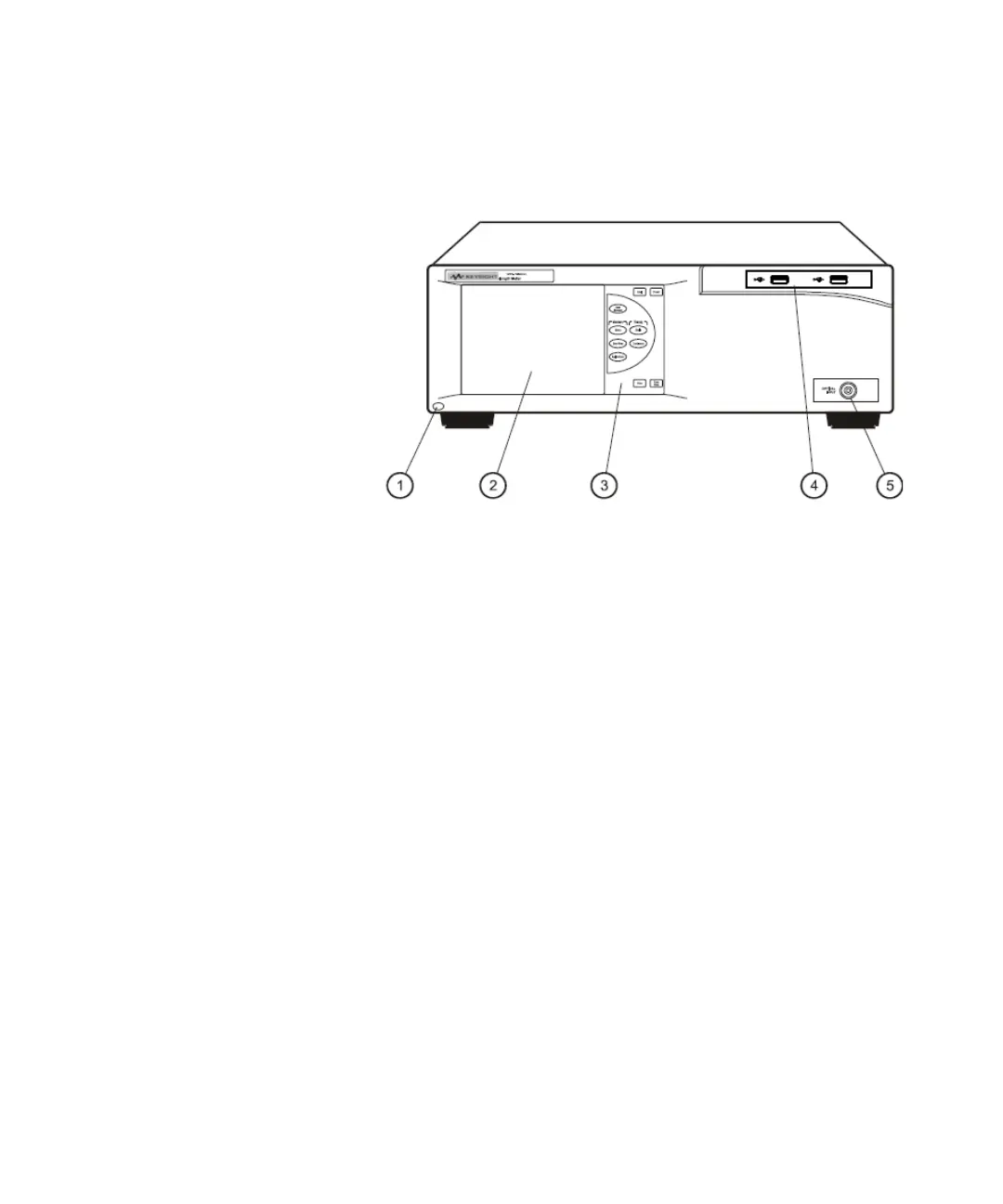

Front Panel

Figure 40

1 Line button

2Touch screen display

3 Front panel buttons

4 Two USB 2.0 ports

5 Optical Input: 9/125 mm single-mode fiber
