2 Using the 86122C
Front and Rear Panel Features
Rear Panel

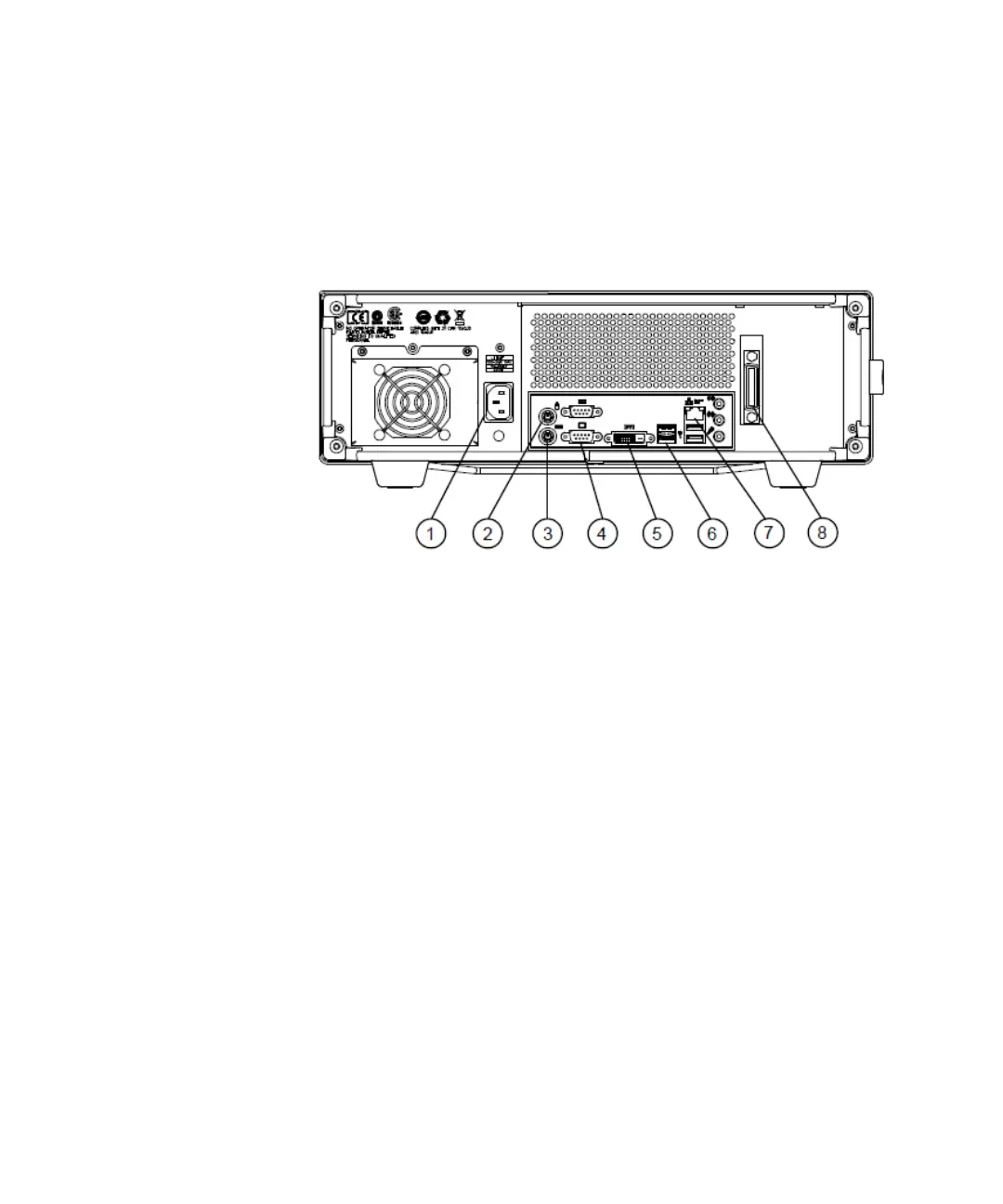

Figure 39
1Power: AC line
2 Mouse: PS/2 for optional mouse
3 Keyboard: PS/2 for optional keyboard
4 Video Output: SVGA
5 Digital Video Output: DVI
6 USB: For a USB keyboard and mouse. USB and LAN printers only (no
parallel printer port)
7 LAN: A keyboard must be used to set up LAN connectivity
8 GPIB: Fully programmable, complies with IEEE 488.2
