136 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide

10 Triggers

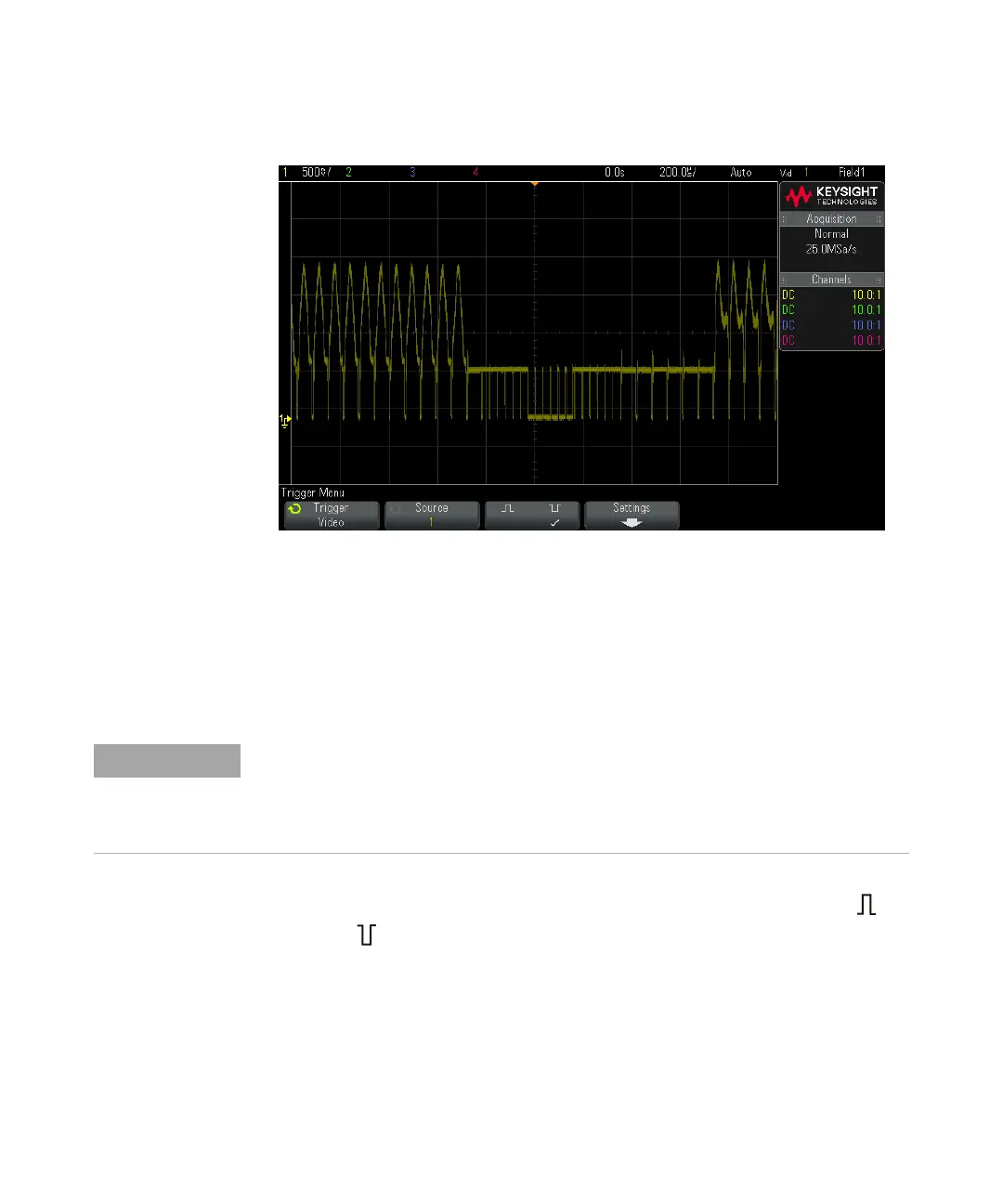

3 Press the Source softkey and select any analog channel as the video trigger

source.

The selected trigger source is displayed in the upper-right corner of the display.

Turning the Trigger Level knob does not change the trigger level because the

trigger level is automatically set to the sync pulse. Trigger coupling is

automatically set to TV in the Trigger Mode and Coupling Menu.

4 Press the sync polarity softkey to set the Video trigger to either positive ( ) or

negative ( ) sync polarity.

5 Press the Settings softkey.

NOTE

Provide Correct Matching

Many video signals are produced from 75 Ω sources. To provide correct matching to these

sources, a 75 Ω terminator (such as a Keysight 11094B) should be connected to the

oscilloscope input.
