Triggers 10
Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 137

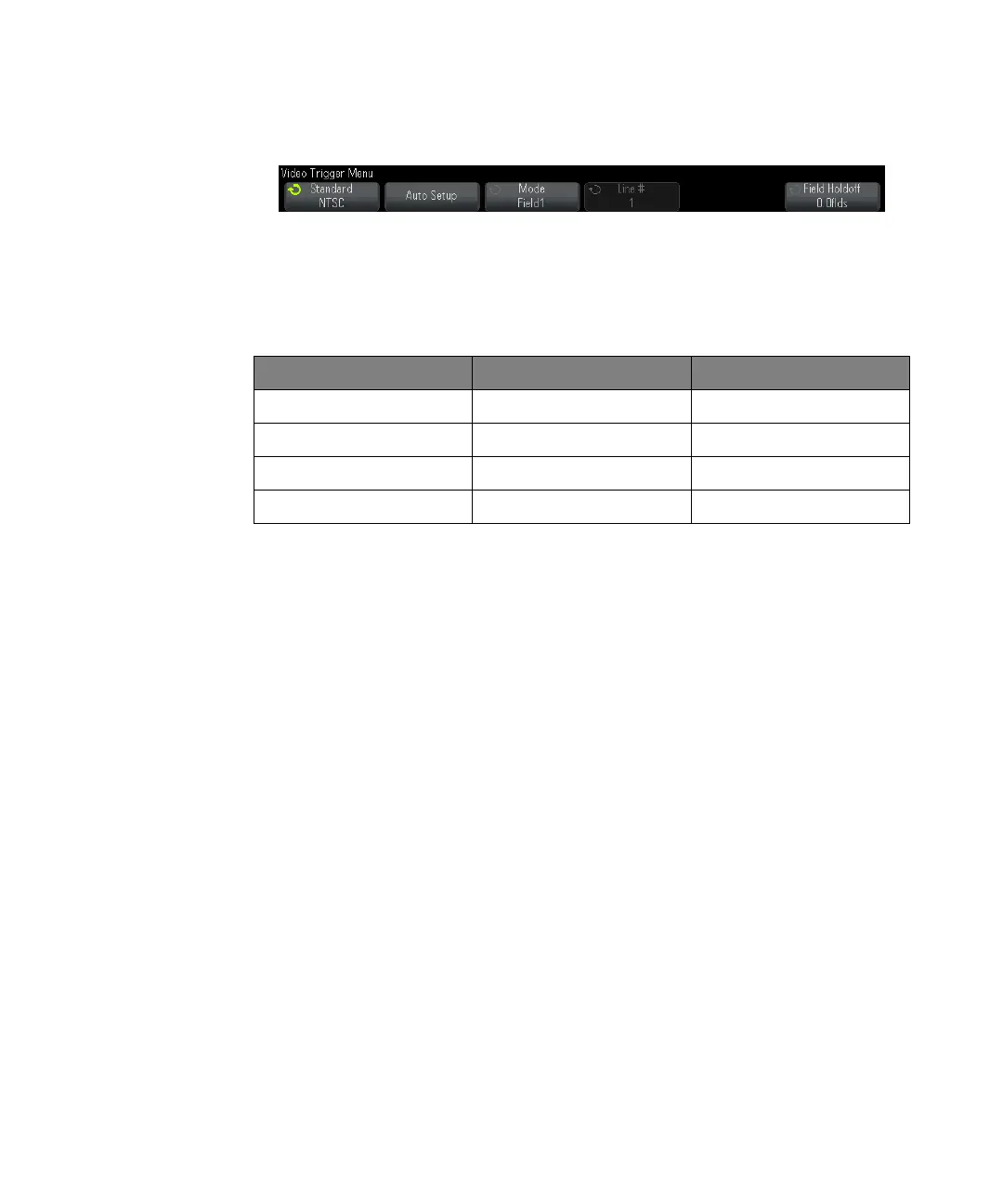

6 In the Video Trigger Menu, press the Standard softkey to set the video standard.
The oscilloscope supports triggering on the following television (TV) and video
standards.
7 Press the Auto Setup softkey to automatically set up the oscilloscope for the
selected Source and Standard:
• Source channel vertical scaling is set to 140 mV/div.
• Source channel offset is set to 245 mV.
• Source channel is turned on.
• Trigger type is set to Video.
• Video trigger mode is set to All Lines.
• Display Grid type is set to IRE (when Standard is NTSC) or mV (see “To select
the grid type" on page 116).
• Horizontal time/division is set to 10 µs/div for NTSC/PAL/SECAM standards.
• Horizontal delay is set so that trigger is at first horizontal division from the
left.
You can also press [Analyze]> Features and then select Video to quickly access the
video triggering automatic set up and display options.
8 Press the Mode softkey to select the portion of the video signal that you would
like to trigger on.
The Video trigger modes available are:
Standard Type Sync Pulse
NTSC Interlaced Bi-level
PAL Interlaced Bi-level
PAL-M Interlaced Bi-level
SECAM Interlaced Bi-level
