2 Performance Tests
54 Keysight E4416A/E4417A Power Meters Service Guide
1 Connect the equipment as shown in Figure 2-7.
2 Preset the instrument:
Press
then .
3 Set the sensor mode to AVG only:
Press .
– Highlight the Sensor Mode parameter using the up/down arrow keys.
– Press .
– A pop-up window is displayed.
– Scroll through the Sensor Mode values using the up/down arrow keys.
Select a value of AVG only.
– Press .
– Press .

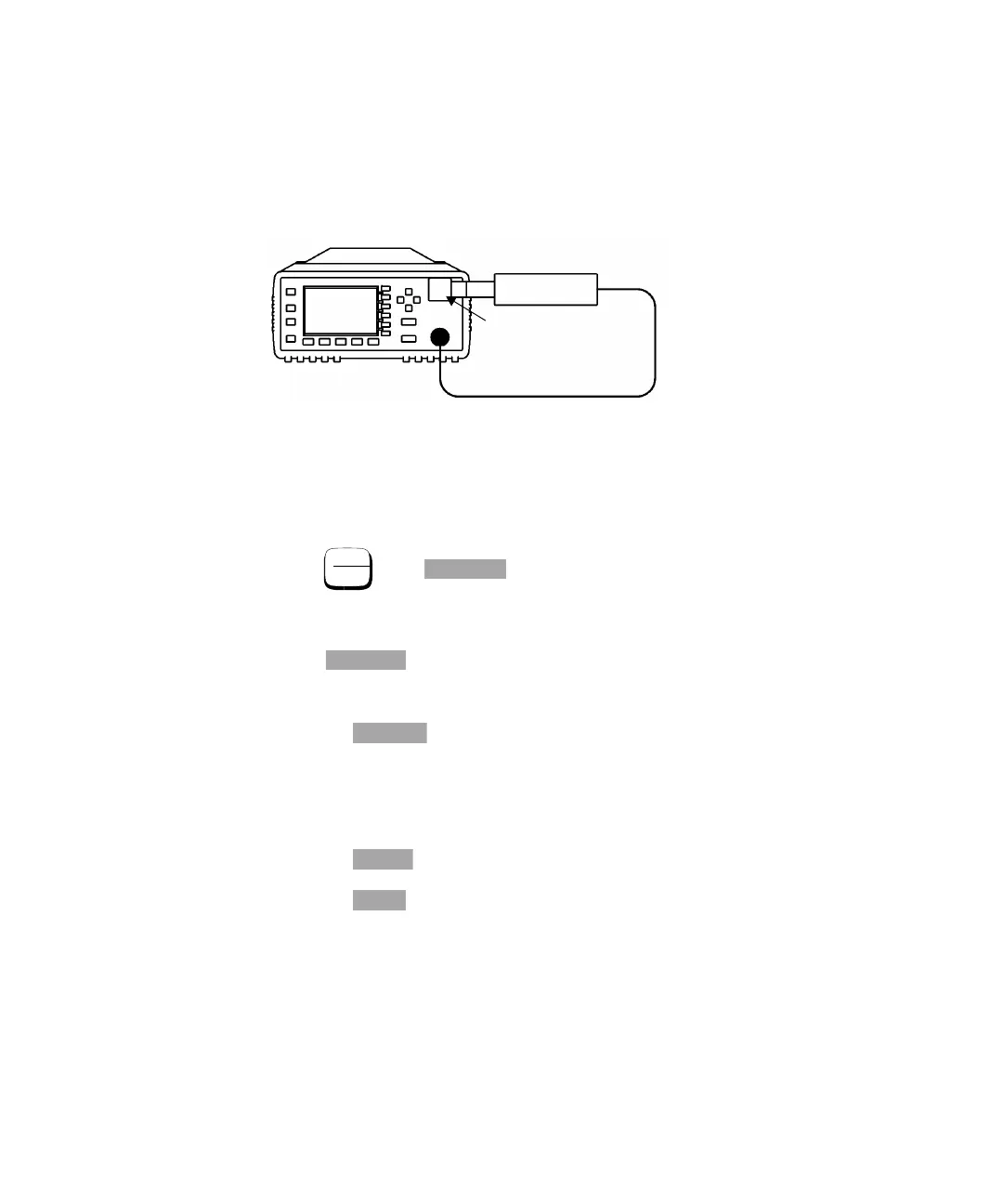

Figure 2-7 Sensor (Average Path) Functional Test Setup
Power Meter
CHANNEL A
Power Sensor
Power sensor cable
Power ref
Preset
Local
Confirm
Channel
Change
Enter
Done
