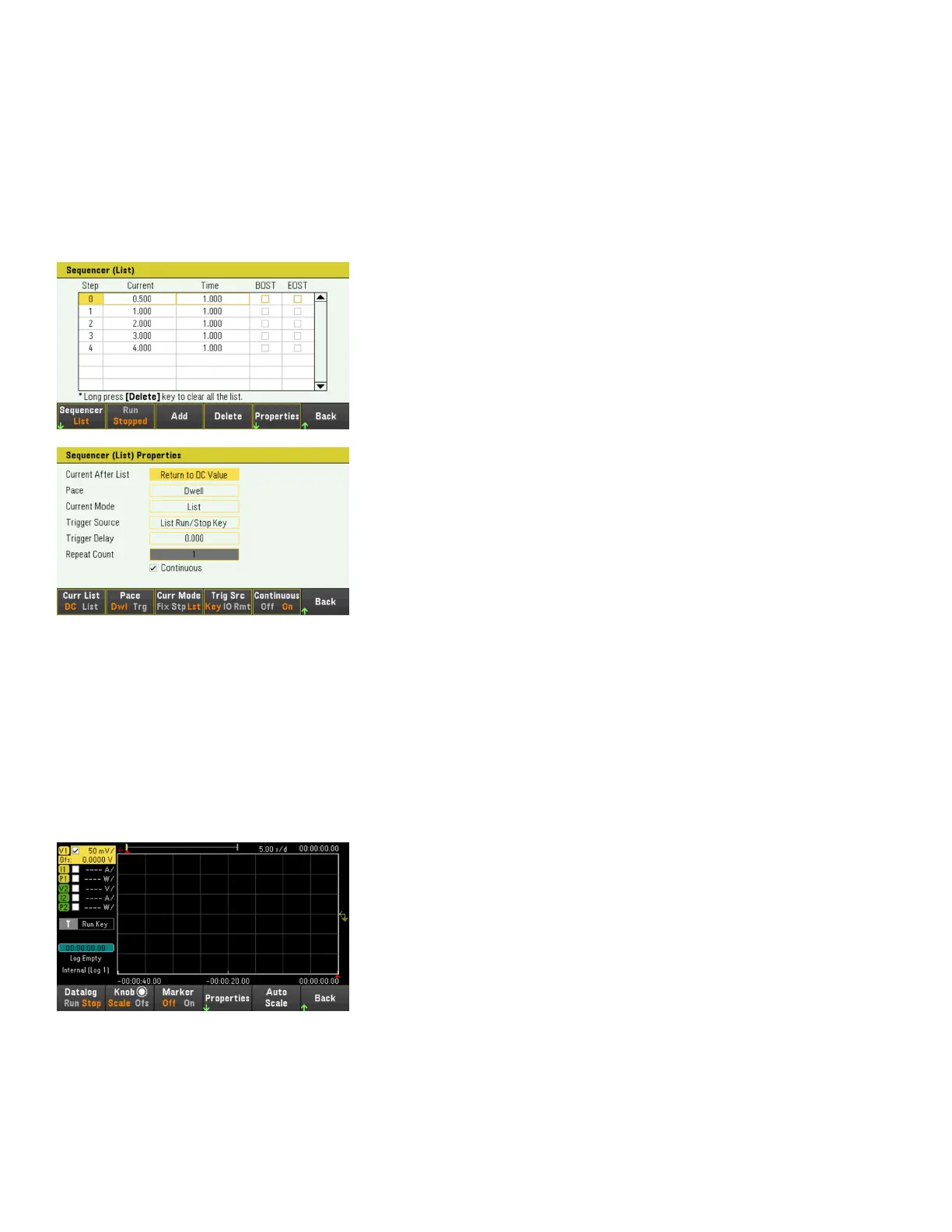

Step 3: 3 A; 1 s
Step 4: 4 A; 1 s
Current After List: Return to DC Value
Pace: Dwell
Current Mode: List
Trigger Source: List Run/Stop Key
Continuous checkbox: Enabled
Step 4 – Configure the data logger traces
–
Uncheck V2. On the data logger display, use the navigation keys to select V2 and press [Enter].
–
Set V1 to 50 mV/Div. Set the knob function by pressing Vertical Scale and use the Vertical knob to adjust the
V1 value accordingly.
Traces are color coded according to input. The ground symbol on the right side of the display indicates the ground
reference of the trace.
Step 5 – Configure the data logger properties
Press Properties to display the Data Logger properties field.
102
Keysight EL30000 Series User's Guide
